Back Loading Pad GT-LB01-4
Back Loading Pad GT-LB01-4
  • Brand:

    GESTER
  • Item No.:

    GT-LB01-4
  • Certificate:

    ISO 9001, UKAS, CE
  • Standard:

    EN 1728-2012, EN581-2-2015, EN1335-3-2009, BS5459-2-2000, GB10357-3 -2013, ISO7173-1989
  • Lead Time:

    20-30 days
  • Payment:

    T/T ,L/C
contact now

Back Loading Pad GT-LB01-4


Product Introduction

Application:

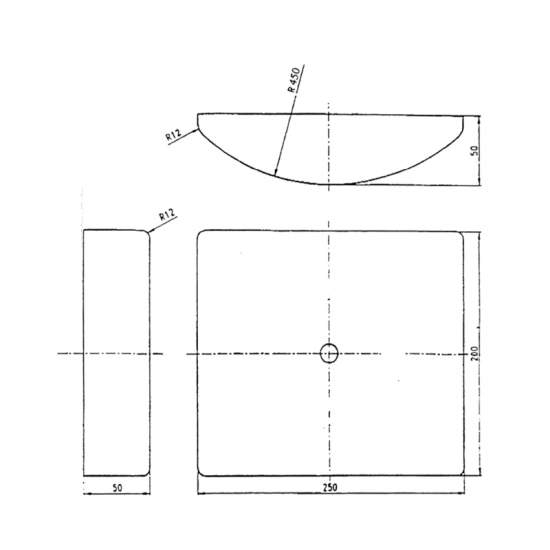

Back loading pad, which is a rigid rectangular object 200 mm high and 250 mm wide, the loading surface of which is curved across the width of the pad with a convex cylindrical curvature of 450 mm radius and with a 12 mm radius on all front edges.



Standards:

EN 1728-2012, EN581-2-2015, EN1335-3-2009, BS5459-2-2000,

GB10357-3 -2013, ISO7173-1989

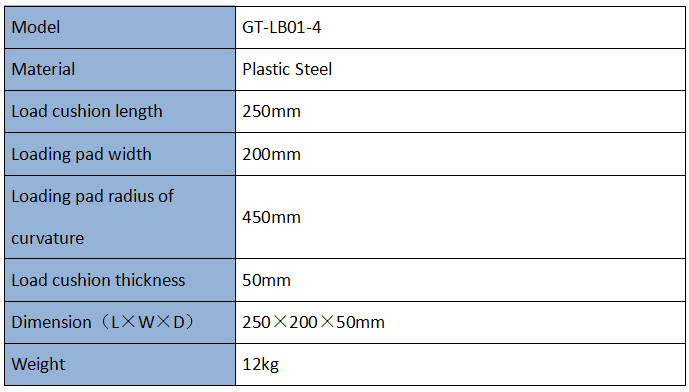

Key Specifications

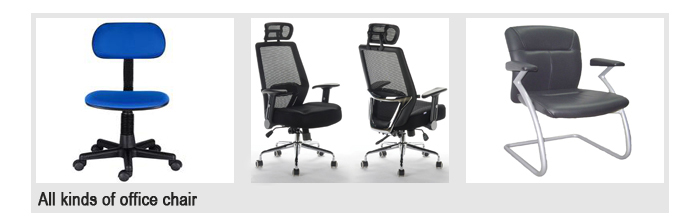

Applications Industry

All kinds of office chairs can be tested on the Back Loading Pad

inquiry now
