Chair Seating Impact and Durability Testing Machine GT-LB05

Chair Seating Impact and Durability Testing Machine applies to all types of chairs, with 2 functions of chair seating impact and seating durability test.
  • Brand:

    GESTER
  • Item NO.:

    GT-LB05
  • Order(MOQ):

    1
  • Payment:

    100% T/T in advance
  • Shipping Port:

    Xiamen Port
  • Lead Time:

    7-30 days
  • Product Detail

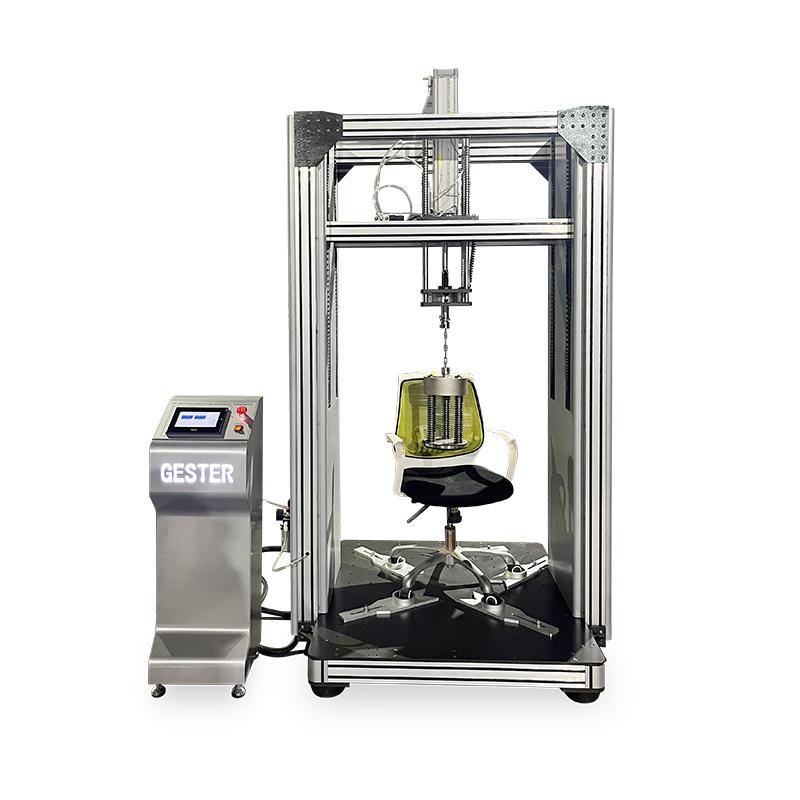

Chair Seating Impact and Durability Testing Machine GT-LB05



Product Introduction

Application:

This Chair Seating Impact and Durability Testing Machine applies to all types of chairs, with 2 functions of chair seating impact and seating durability test.

The purpose of this test is to evaluate the ability of the chair to withstand heavy and abusive impact forces on the seat and evaluate the ability of chairs to withstand fatigue stresses and wear caused by downward vertical force(s) on the seat.



Standards:

Standards

EN1728-2012 Section 6.24, 8.8

BIFMAX5.1-2017

Section 7, 10.3



 A+B Standards

EN581-2-2015 (corresponding with EN1728-2012)

EN1729-2-2012 Section 5.3.7

ISO7173-1989 Section7.10

BIFMAX5.11-2011 Section 8, 11.3



GB/T 10357.3 -2013

Section 6.9

EN 16139-2013 (corresponding with EN1728-2012)

QB/T2280-2007 Section6.6.3, 6.6.13.1

BS5459-2-2000

Section  A5.2,

Standard Accessories

GT-LB01-6   1set

Stationary fixture1set

GT-LB01-11  1set

GT-LB01-6   1set

GT-LB01-11 1set

Stationaryfixture1set

Option Accessories

GT-LB01-1A Loading point template           1pc

GT-MA12B Air compressor



Key Specifications

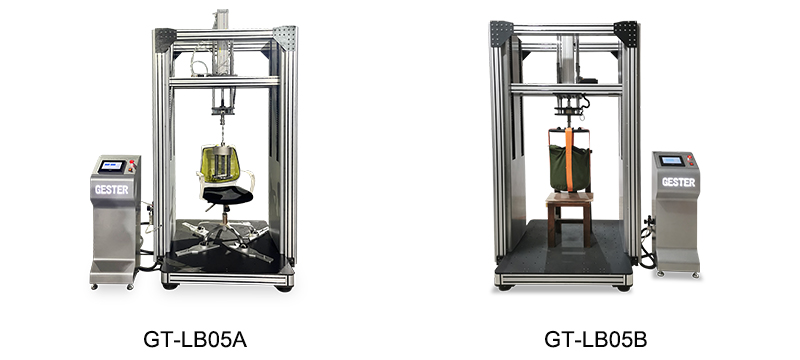

Model

GT-LB05A

GT-LB05B

GT-LB05C

Impactor diameter

200mm

406mm

A+B Impactors

Impactor weight

25kg

Max.350Lbs

(accumulated)



Cylinder stroke

0~300mm

Beam stroke

900~1350mm

Test Speed

10~30r/min

Test Times

0~999999times, settable

Control

PLC touch screen control

Dimensions(WxDxH)

150x150x200cm

Weight(about)

350Kg

500kg

530kg

Air Source

≧7kgf/cm^2 stable air source

Power

1∮ AC 220V 50Hz 5A



Standard Accessories

GT-LB05A

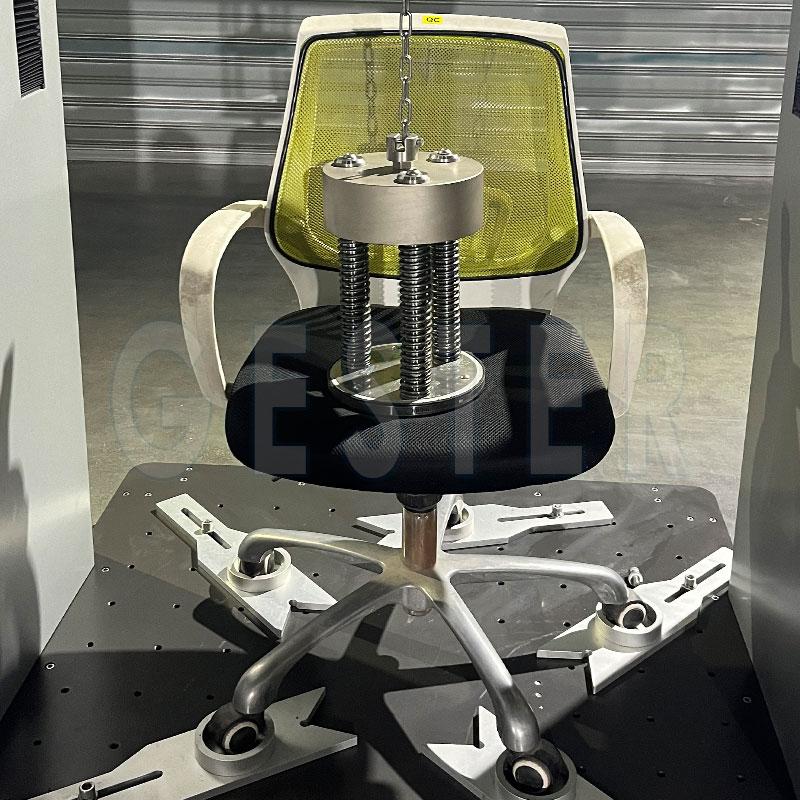

GT-LB01-6 Seat Impactor Device  1set

Stationary fixture  1set

GT-LB05B

GT-LB01-11 BIFMA Bag Type Impactor Device  1set

GT-LB05C

GT-LB01-6 Seat Impactor Device  1set

GT-LB01-11 BIFMA Bag Type Impactor Device  1set

Stationary fixture  1set




Applications Industry

All kinds of chair products can be tested on the Chair Seating Impact and Durability Testing Machine
