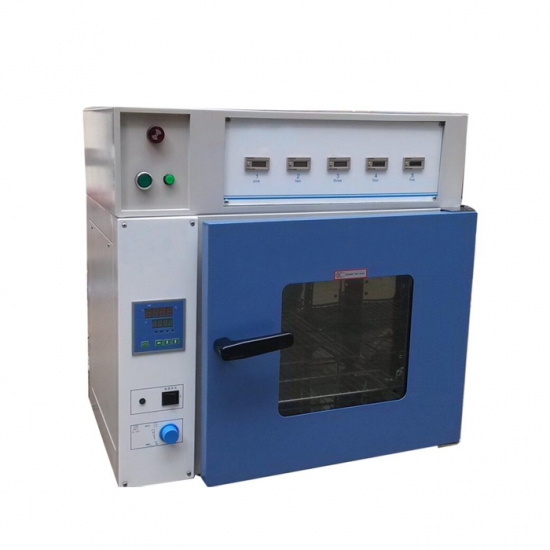

Constant Temperature Viscosity Tester GT-CN06
Constant Temperature Viscosity Tester GT-CN06
  • Brand:

    GESTER
  • Item No.:

    GT-CN06
  • Certificate:

    ISO 9001, UKAS, CE
  • Shipping Port:

    Xiamen Port
  • Lead Time:

    About 30days
  • Payment:

    TT
contact now

Constant Temperature Viscosity Tester GT-CN06


Product Introduction

Application:

Constant Temperature Viscosity Tester Equipment GT-CN06 can applicable to all kinds of sticky products such as pressure-sensitive adhesive tapes, medical patches, adhesive labels, protective films, etc.


Principle

The test plate with adhesive specimen was hung vertically from the test stand, and the weight of specified weight was hung at the lower end. The displacement of the adhesive specimen after a certain time or the time when the specimen was completely detached was used to characterize the ability of the adhesive specimen to resist pulling off.


Key Specifications



Model

GT-CN06

Temperature

Room temperature~200℃

Temperature Display

0~0.1℃

Temperature Control

Room temperature+10~200℃

Heating Method

Hot air circulation

Safety Devices

With over-temperature and electric thermal overload automatic power protection facilities

Machine Material

Internal SUS#304 stainless steel plate, external high-grade steel plate baking treatment.

Testing Positions

5

Weights

1KG (or calibrated) medical weight 500G.

Hour Meter

5groups, 99999.9hours

Test plate

5 pcs

Loading Plate

5 pcs

Standard Roller

2000g±50g

Power Supply

AC220V 15A

Inner Box Size

45×50×45cm(L×W×H)

Outside Box Size

97×65×110cm(L×W×H)

Weight

103kg

Standards

CNS-11887, 11888, PSTC-7, GB/T 4851 YYT 0148-2006
