GESTER GT-C09 Button Snap Pull Tester

2017-11-16

Snap Tester, to determine the holding or breaking strength of prong-ring attached snap fasteners onto garments or toys, also as a Push Pull Tester applies for compression and tensile pull testing of small samples.

Button Snap Pull Strength Tester

Application

Snap Tester (Button Snap Pull Tester), to determine the holding or breaking strength of prong-ring attached snap fasteners onto garments or toys, also as a Push Pull Tester for compression and tensile testing of small samples(special attachments are available).

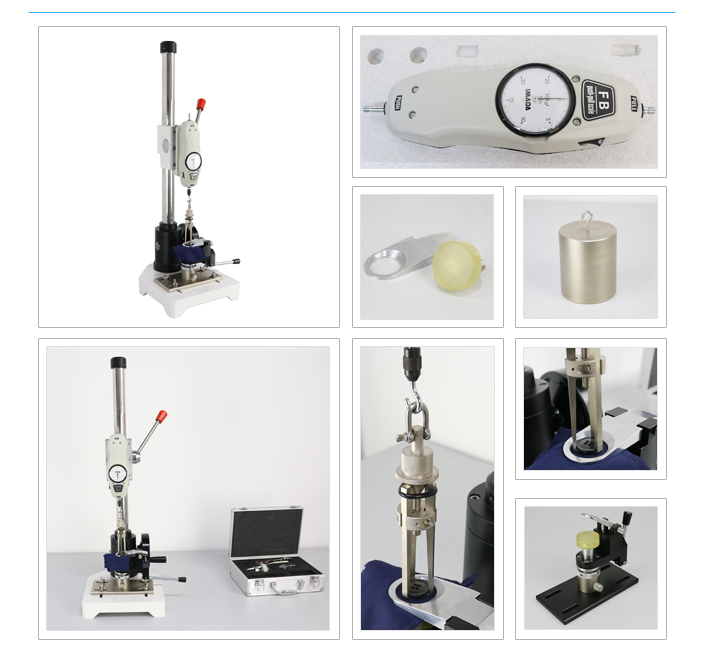

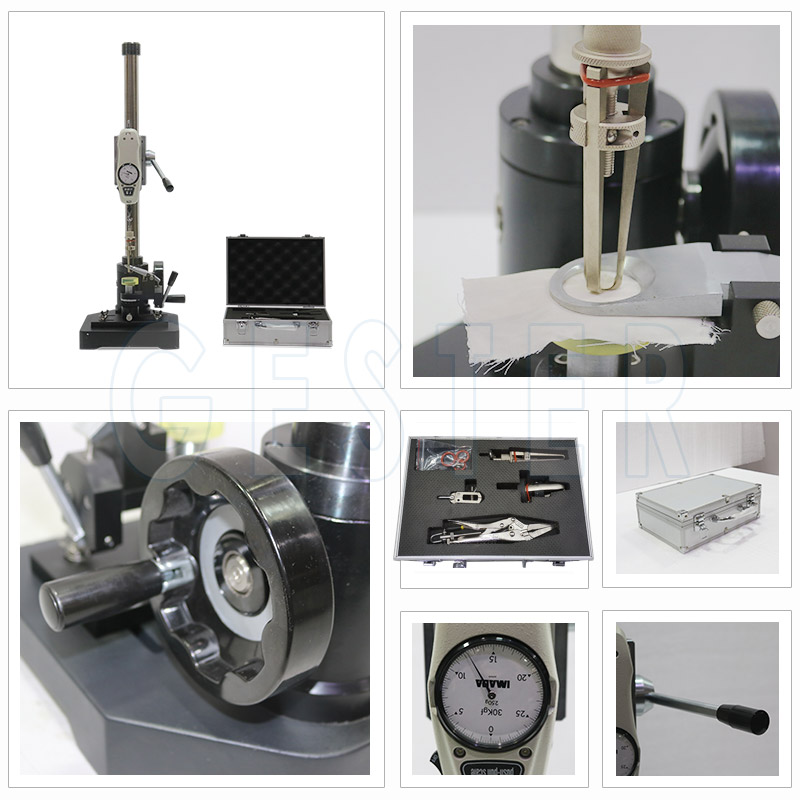

Our snap tester consists of an upper snap clamp, a lower fabric clamp and force gauge mounted on a stand, a hand wheel on the bottom of snap tester which allows fine control with convenient operation.

The snap component is gripped by the Upper Snap Clamp and the garment is fixed to the lower Fabric Clamp. By turning the hand wheel, The operator can apply a specific force and the holding force or the breaking strength can be recorded. The capability of the snap tester can be enhanced with clamps & accessories for testing of other Snaps, Jean Buttons, Four Hole Buttons & Garments Accessories such as Zippers, Bows, Appliqué, Toggles, Hooks/Bars, and D-Rings, amongst others.

Standards

16 CFR 1500.51-53, ASTM PS79-96, D4846

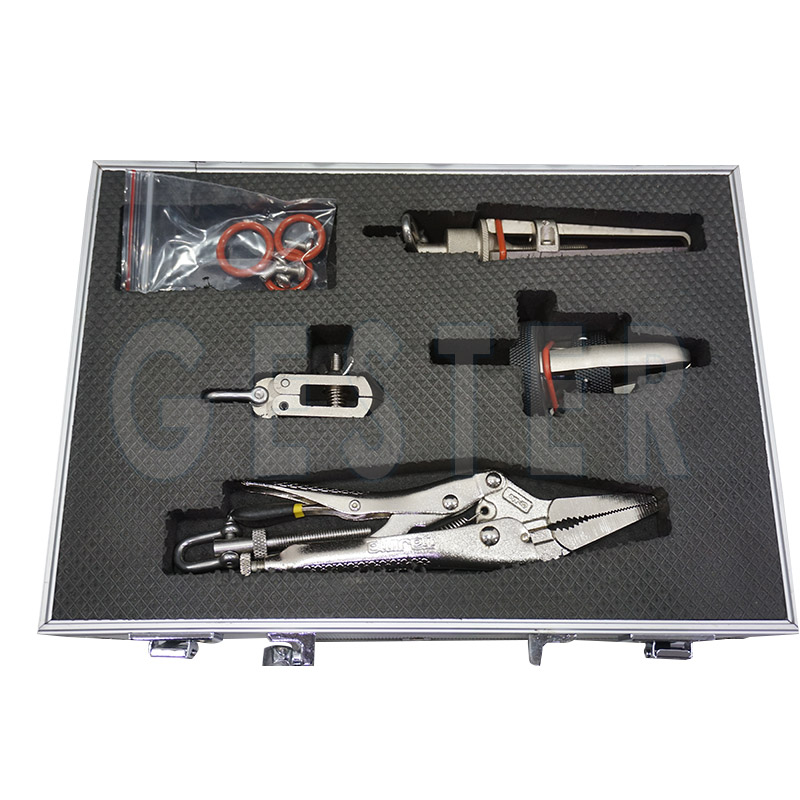

Included Accessories

Standard accessories

1pc

IMADA Force Gauge FB-30K

1pc

GT-MC01 Upper Universal Grip

1pc

GT-MC02 Upper Stud Grip

1pc

GT-MC03 Lower Fabric Clamp & Level Arm Locking

1pc

GT-MC04 Lower Grasp Button Accessory Kit

1pc

GT-MC05 Calibration Weight 15LB

1pc

GT-M37 Three Pronged Grip

1pc

GT-M43 Upper Long Nose Vise Grip

Optional accessories



Optional

GT-M36 Two Pronged Clamp

Optional

GT-M39 Flat Clamp

Optional

GT-M49 Short - Mouth Clamp

Optional

GT-M50 Seam Clamp

Optional

GT-M53 Wide - Mouth Clamp

Optional

GT-MC06 Multifunction Vise Clamp

Optional

GT-MC07 ASTM Zipper Test Kit

Optional

GT-MC09 Clamps for ASTM D4846

Weight and Dimensions

Button Snap Pull Strength Tester
