This Upper Material Flexing Tester is used to determine the propensity for materials to crack or otherwise fail at flexing creases, but can also be used to assess whether leathers are likely to produce salt spue.
Brand:
GESTERItem NO.:
GT-KC04AOrder(MOQ):
1Payment:
T/T, L/CShipping Port:
Xiamen PortLead Time：
10-30 daysProduct Detail
|
Application: This Upper Material Flexing Tester is used to determine the propensity for materials to crack or otherwise fail at flexing creases, but can also be used to assess whether leathers are likely to produce salt spue. In particular the test simulates conditions in the vamp part of footwear during walking. The test can be conducted with either wet or dry specimens at room temperature. The method is applicable to all flexible materials and in particular those used to manufacture outers and linings of footwear uppers such as leathers, coated fabrics and textiles.
Standards: ISO 5423 section 5.2EN ISO 20344-2021 Section 6.5 AS/NZS 2210.2 Section 6.5.2 GB/T 20991 Section 6.5.2 GB20265 section 4.1 EN ISO 22288 SATRA TM25 ISO 5402-2 ISO4643 ISO14268-2012 |

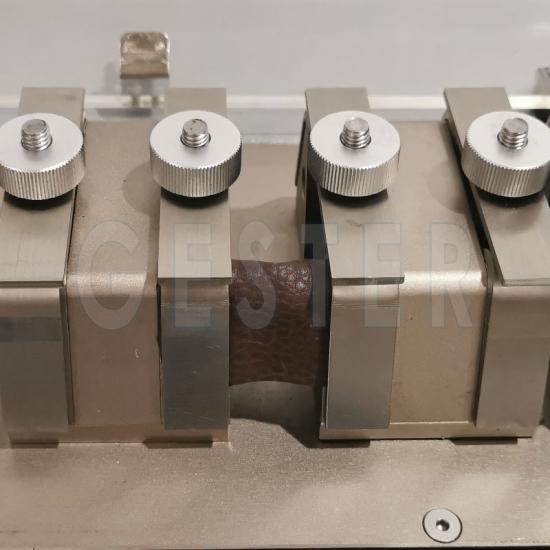

A square specimen of the material is folded over two inverted V-shaped clamps. The clamps are able to move relative to one another so that as they become closer the specimen is flexed to produce one downward crease surrounded by four upward creases. During the test the clamps oscillate at a constant speed so that the specimen is repeatedly flexed. After a predetermined number of cycles the test is stopped and the specimen is visually examined for signs of damage or salt sque.
|
Model |
GT-KC04A |
|
Control Mode |
Touch Screen Control |
|
Clamp |
40degree V-shaped |
|
Number of specimen |
12pcs |
|
Counter |
0- 999, 999 |
|
Test stroke |
19mm |
|
Flexing speed |
300±30CPM |
|
Sample size |
64x64mm |
|
Dimensions |
65 x 40x 50cm ( L x W x H ) |
|
Weight |
About 80kg |
Accessories
Standards accessories
12sets
Stainless steel grip
1pc
Power line
Optional accessories
Optional
GT-KD20 Pneumatic Sample Cutting Machine
(Cutting die: 64x64mm)
