Liquid Permeability Tester GT-CN07

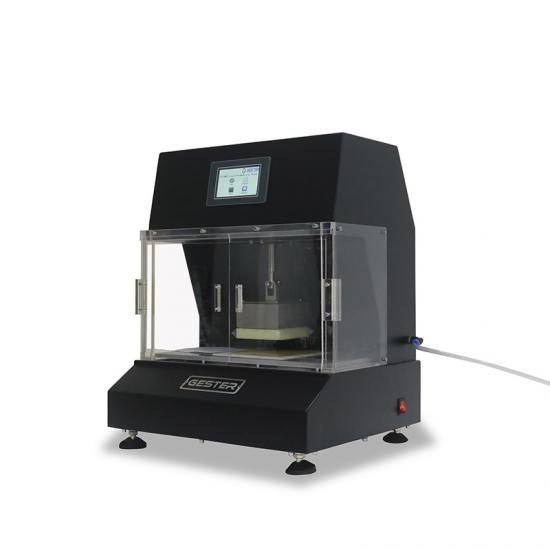

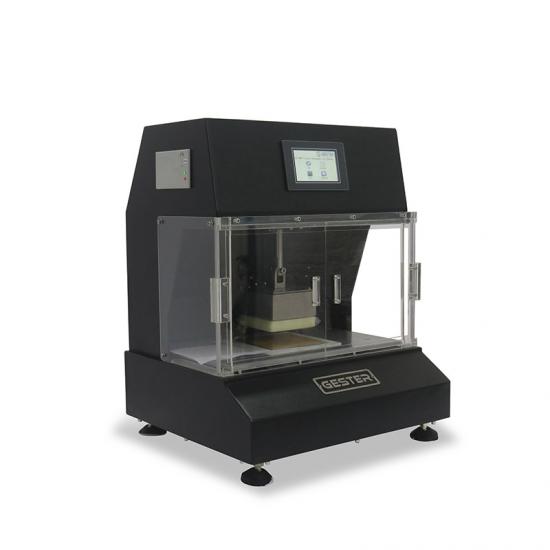

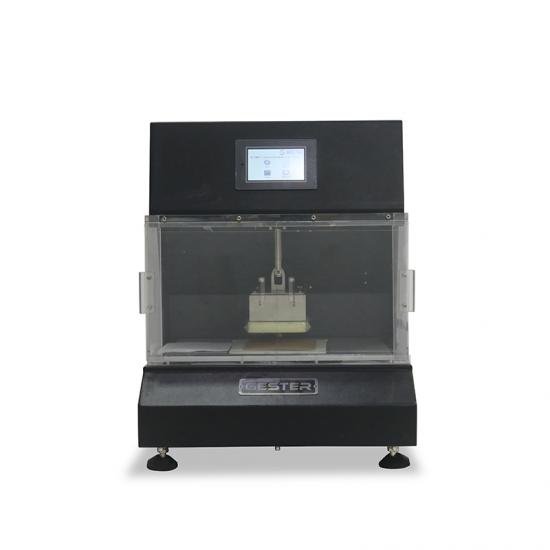

Liquid Permeability Tester GT-CN07
  • Product Origin:

    China
  • Brand:

    GESTER
  • Item No.:

    GT-CN07
  • Certificate:

    ISO 9001, UKAS, CE
  • Shipping Port:

    Xiamen Port
  • Lead Time:

    About 25days
  • Payment:

    TT
contact now

Liquid Strike-Through Tester GT-CN04


Product Introduction

Application:

Liquid Permeability tester GT-CN07 can be used to determine the rewet volume of sanitary materials.


Principle:

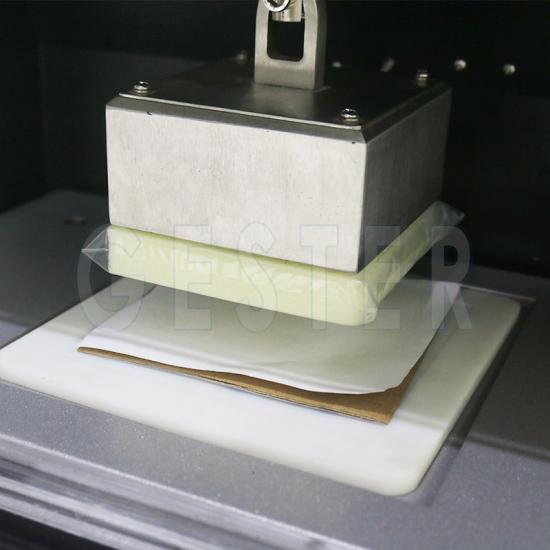

The clad material was placed on a standard sorption pad (10 layers of filter paper) and three liquid penetration tests were performed with the prescribed simulated urine volume. After the third penetration test, the dummy baby load (SBW) was placed on the coating material and the sorption pad to evenly spread the liquid.

A known quality of blotter was placed on the coated material tested and the dummy baby load (SBW) was repositioned on the blotter paper.

The mass of liquid absorbed by the blotter is defined as the amount of reverse moisture.


Feature

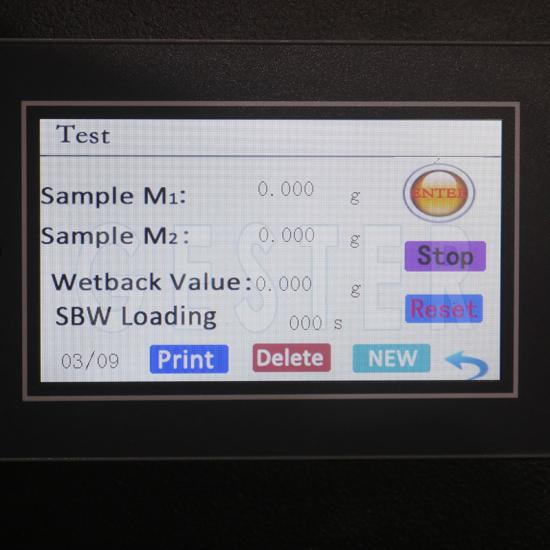

  • Color touch screen display, clear interface, easy operation.
  • The standard simulated baby load can set the placement time and movement rate.
  • Using 32-bit cortex-m3 microprocessor, data processing speed, stable and reliable operation.
  • The speed controlled lifting device is convenient to simulate the baby load.


Key Specifications



Model

GT-CN04

Timing Range

0~99.99s

Timing Resolution

0.01s

Interval Time Range

1~99s

Penetration Number

1~5times

Power Supply

AC220V 50Hz 30W

Dimensions

615×320×340mm

Weight

15kg

Standards

FZ/T 60017


Model

GT-CN07

Suction Pad Size

100mm×100mm×10 layers

Suction Paper

Size 125mm×125mm, mass per unit area (90±4)g/m2,

air resistance (1.9±0.3kPa)

Sample Size

125mm×125mm

Simulate Baby Loading Time

0-10min

Load Movement Rate

5cm/(5±1)s

Timer Accuracy

0.1s

Power Supply

AC220V±10%

Standards

GB/T 24218.14
