Liquid Strike-Through Tester GT-CN04
Liquid Strike-Through Tester GT-CN04
  • Brand:

    GESTER
  • Item No.:

    GT-CN04
  • Certificate:

    ISO 9001, UKAS, CE
  • Shipping Port:

    Xiamen Port
  • Lead Time:

    About 25days
  • Payment:

    TT
contact now

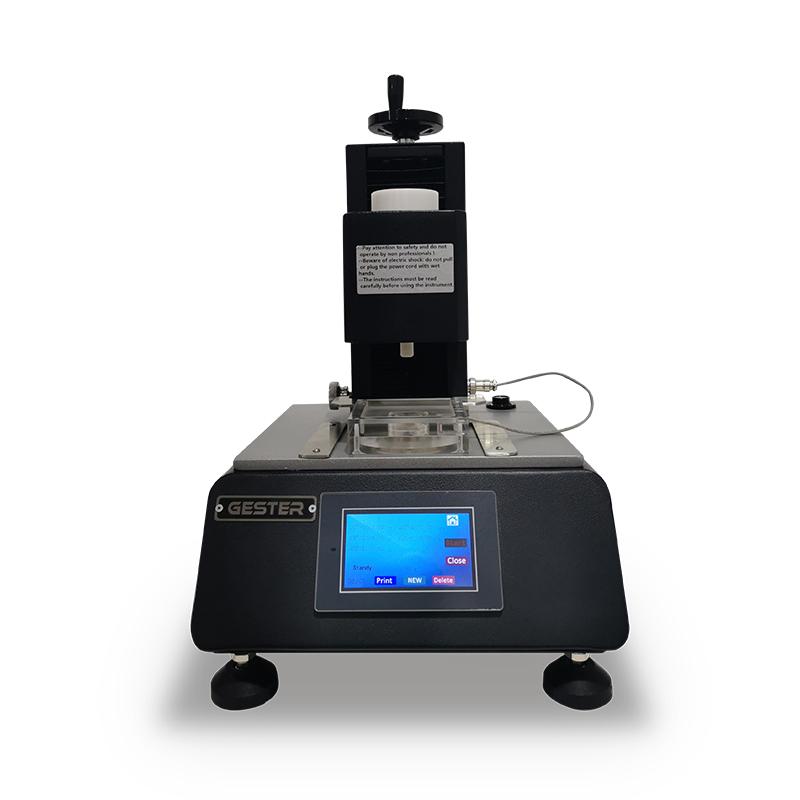

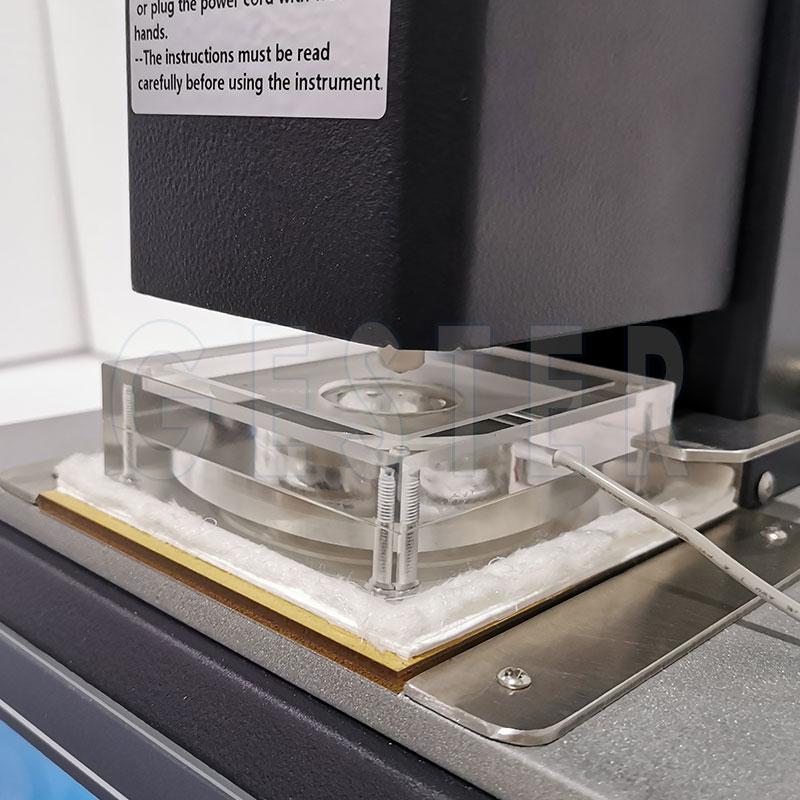

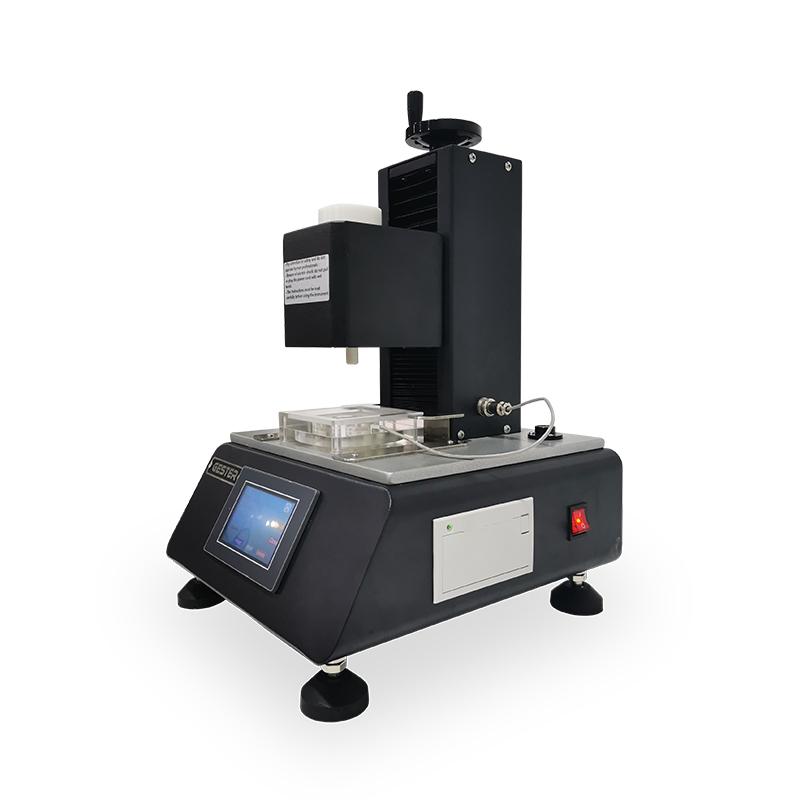

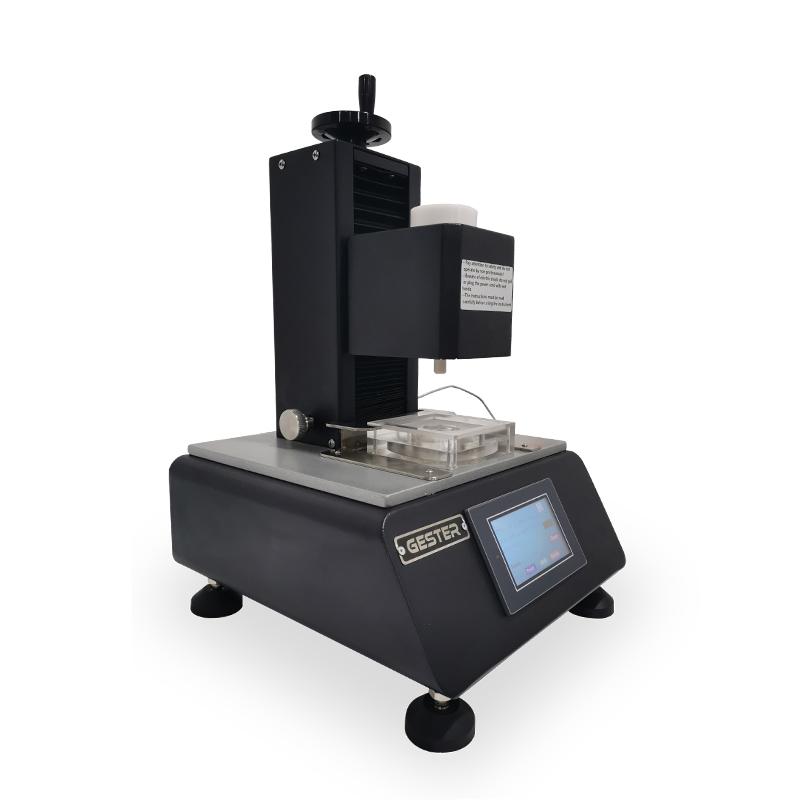

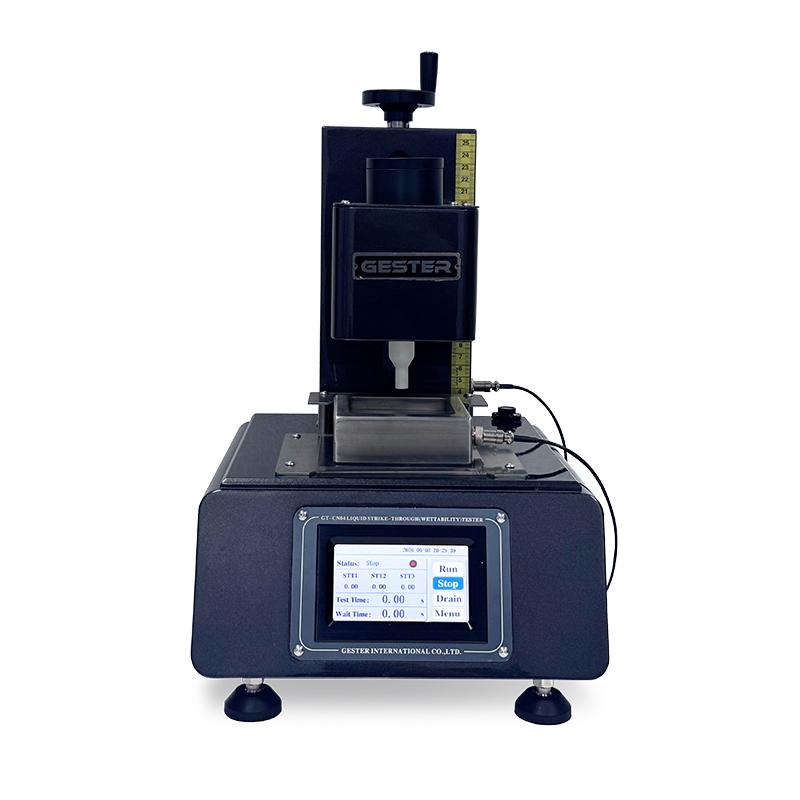

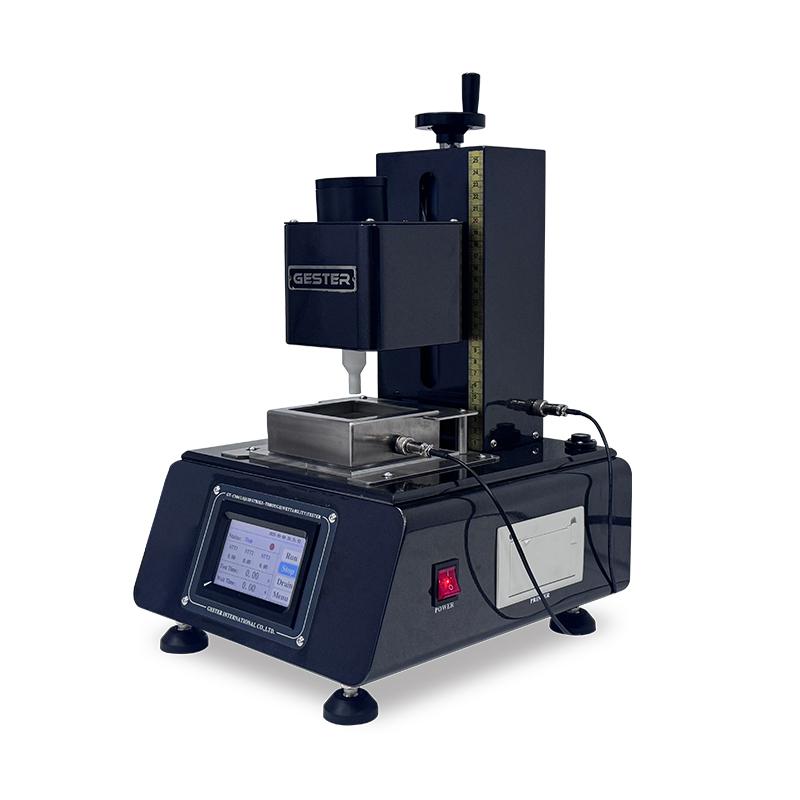

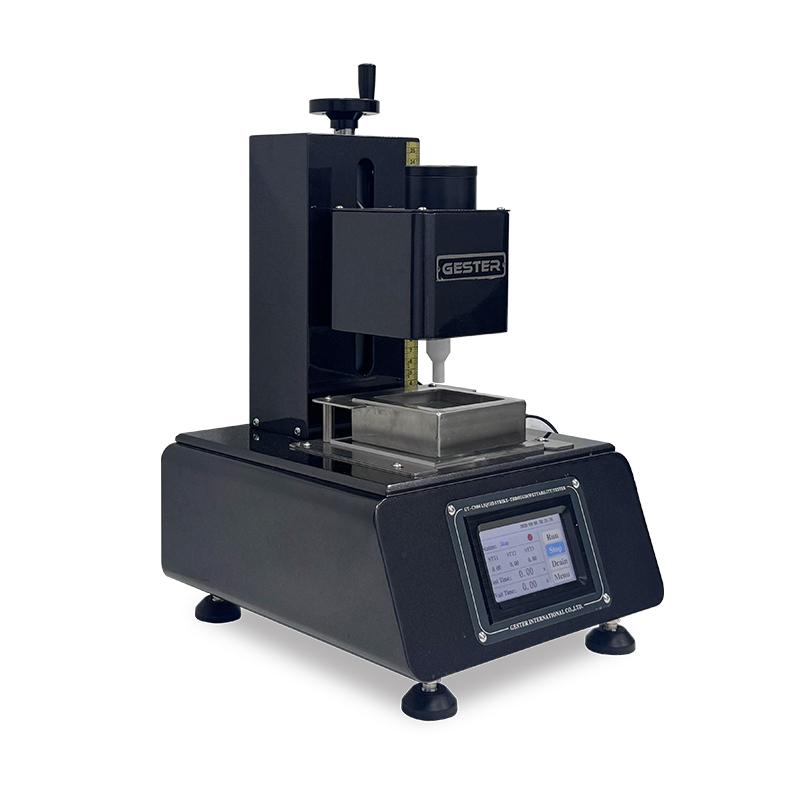

Liquid Strike-Through Tester GT-CN04


Product Introduction

Application:

Liquid Strike-through tester can be used to determine the liquid strike-through test of nonwovens such as sanitary napkins, diaper covering materials and so on.

Principle:

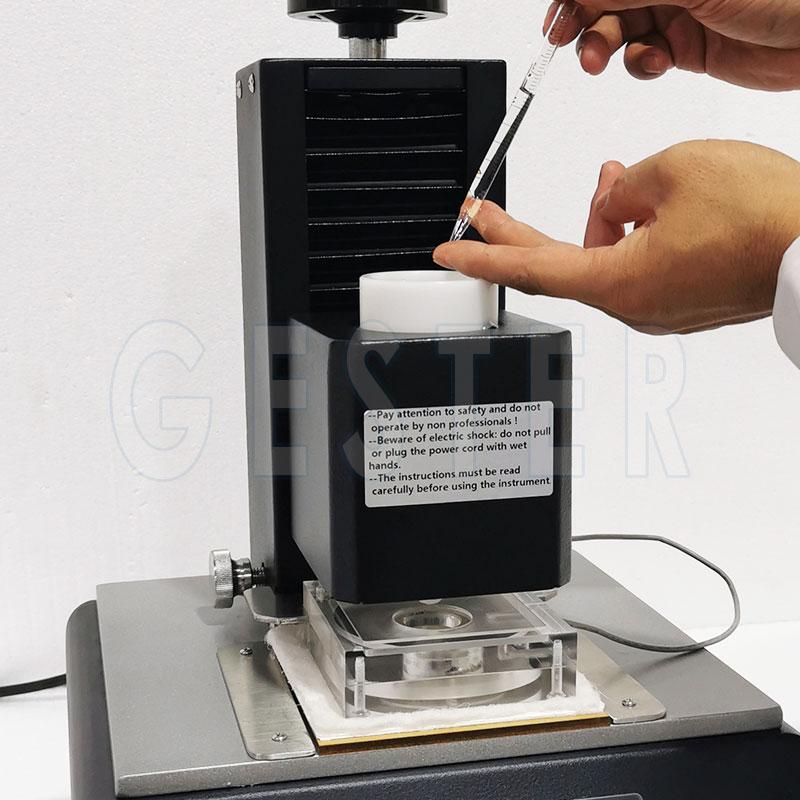

With a certain amount of artificial urine to flow to the non-woven on the standard absorbent pad, and the time required to measure all the liquid through the non-woven sample was measured by electrically.


Feature

  • 304 stainless steel shell, simple and elegant appearance.
  • Adopt 24V DC low pressure solenoid valve, the instrument is safer to use.
  • Adopt microprocessors, LCD screens, thermal printers, the instrument has an automatic timing; automatically save experimental data; and can print experimental reports, simple operation.
  • The electrode adopts medical 306 stainless steel, and the test is sensitive and reliable.


Key Specifications



Model

GT-CN04

Timing Range

0~99.99s

Timing Resolution

0.01s

Interval Time Range

1~99s

Penetration Number

1~5times

Power Supply

AC220V 50Hz 30W

Dimensions

615×320×340mm

Weight

15kg

Standards

FZ/T 60017
