products
Low Temperature Bally Resistance Flexing Tester GT-KC10B Low Temperature Bally Resistance Flexing Tester GT-KC10B Low Temperature Bally Resistance Flexing Tester GT-KC10B Low Temperature Bally Resistance Flexing Tester GT-KC10B Low Temperature Bally Resistance Flexing Tester GT-KC10B
Low Temperature Bally Resistance Flexing Tester GT-KC10B
  • Brand:

    GESTER
  • Item No.:

    GT-KC10B
  • Certificate:

    ISO 9001, UKAS, CE
  • Standard:

    SATRA TM 55 ; IULTCS/IUP 20-1; ISO5402-1; ISO 17694
  • Shipping Port:

    Xiamen Port
  • Lead Time:

    30 days
  • Payment:

    T/T, L/C
contact now

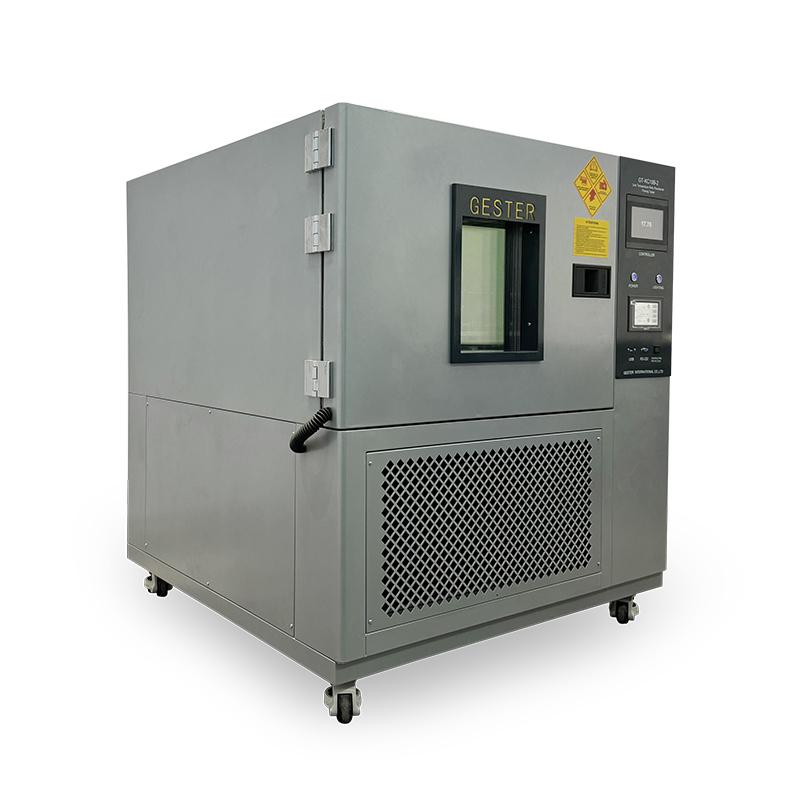

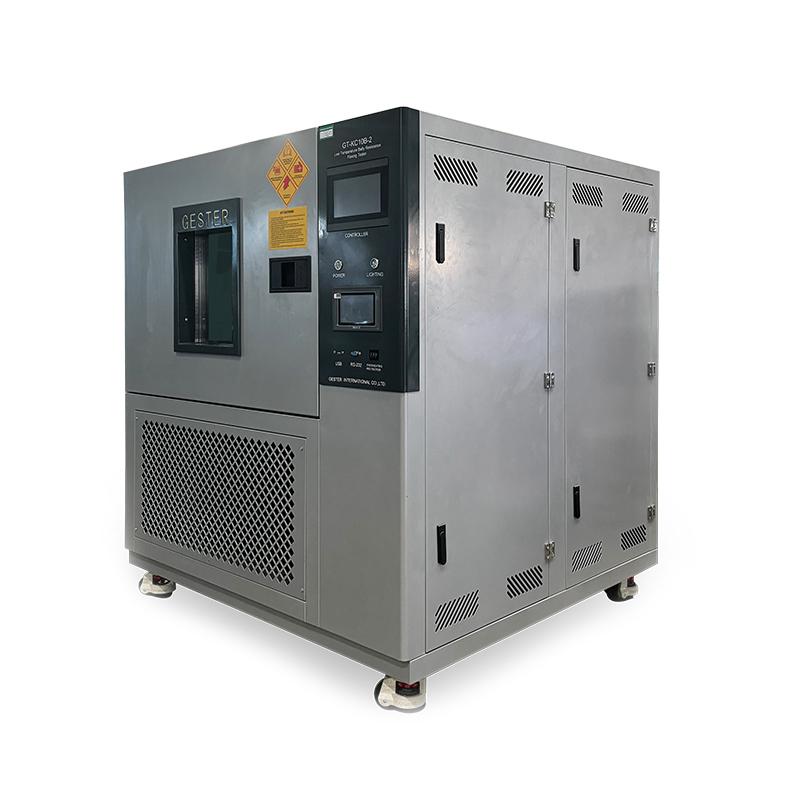

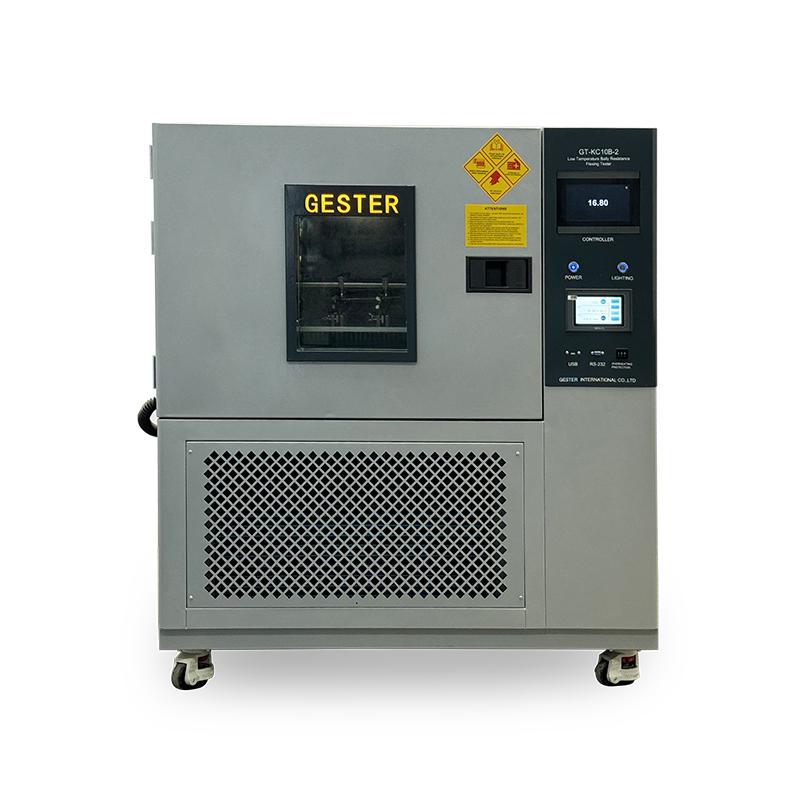

Low Temperature Bally Resistance Flexing Tester GT-KC10B


Product Introduction

Application:

Bally Resistance Flexing Tester is used to determine the resistance of a material to cracking or other types of failure at flexing creases. The method is applicable to all flexible materials and in particular leathers, coated fabrics and textiles used in footwear uppers.


Standards:

SATRA TM 55 ; IULTCS/IUP 20-1; ISO5402-1; ISO 17694

EN 13512 ; EN344-1 section 5.13.1.3 and annex C; EN ISO 20344 section 6.6.2.8

GB/T20991 section 6.6.2.8; AS/NZS 2210.2 section 6.6.2.8; GE-24; JIS-K6545


Dimensions

GT-KC10A Bally flexing tester

Principle

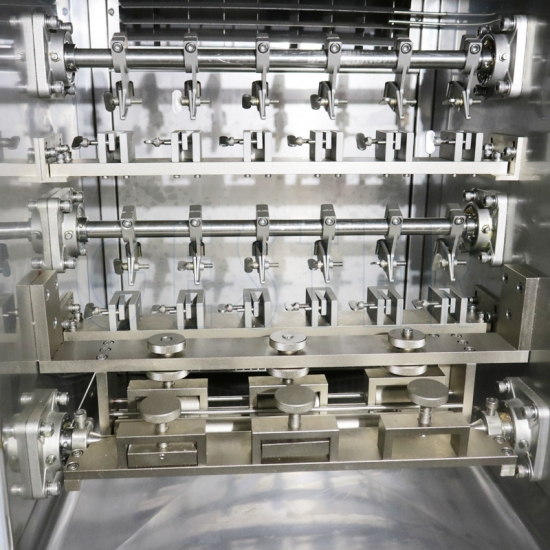

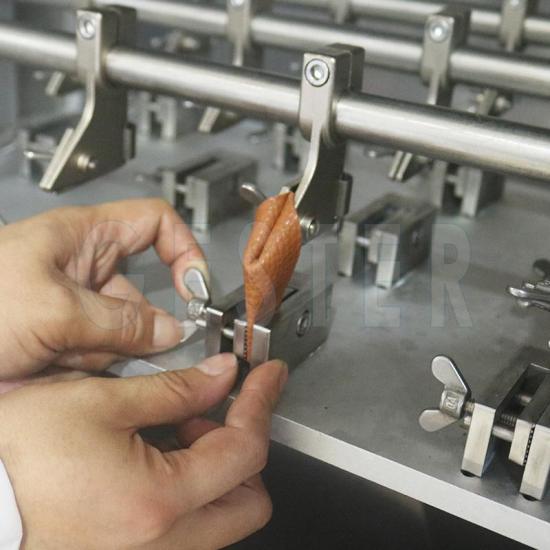

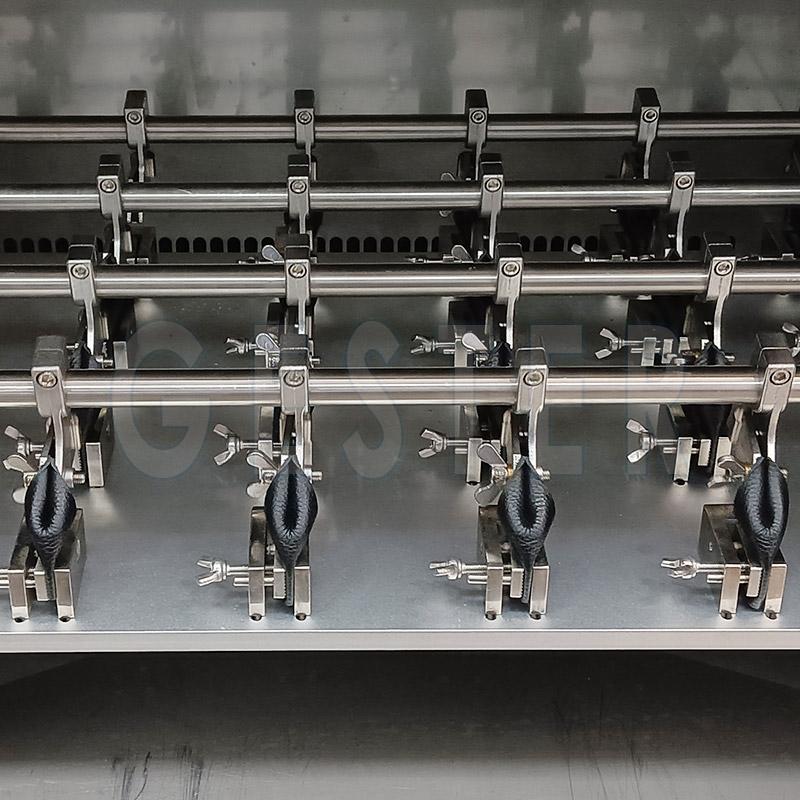

The test specimen is folded in half then one end is secured in a clamp. The test specimen is then turned inside out and the free end secured in a second clamp at 90 degrees to the first. The first clamp is repeatedly oscillated through a fixed angle at a defined rate causing the test specimen to flex. At set intervals the number of flexing cycles is recorded and the damage to the test specimen is visually assessed. The test can be carried out with wet or dry test specimens at ambient or sub-zero temperatures.


Key Specifications

Low Temperature Bally Resistance Flexing Tester


Application Industry

All kinds of leather materials can be tested on the Low Temperature Bally Flexing Tester.

Bally Resistance Flexing Tester



Product Video

inquiry now

    We will give you a quotation within 24 hours.

      Low Temperature Bally Resistance Flexing Tester GT-KC10B

    Contact Us:

    Gester Instruments Co.,Ltd.

    Tel:+86-595-22515230
    Email:info@gester-instruments.com
    Skype:sales@gester-instruments.com
main Products
  • ROSS Flexing Tester ROSS Flexing Tester GT-KB05A

    ROSS Flexing Tester is used to determine rectangular bending test of rubber products, shoe soles, PU, PVC, TPR foam and other materials.

  • Whole shoe flexing freezing chamber,Freezing Chamber for shoe flex test,SATRA YM92 Whole Shoe Flexing Freezing Chamber GT-KC27

    Whole shoe flexing freezing chamber,Freezing Chamber for shoe flex test,SATRA YM92 This machine is specially used for low temperature flexing test of whole shoes, such as sports shoes, cause shoes, safety shoes etc.

  • Sole Flexing Tester, test flex, flexural test EN Sole Flexing Tester GT-KB06

    Sole Flexing Tester is used to measure the flexing resistance of shoe soles under continuous movement.

  • Fibre Board Flex Tester, flex test, shoe test Fibre Board Flex Tester GT-KB07

    Fibre Board Flex Tester is to determine flex test for shoe insole fiberboard and applicable for common leather shoes and sneaker insole fiberboard.
