Brand:
GESTERItem NO.:
GT-KC67Order(MOQ):
1Payment:
T/T, L/CShipping Port:
Xiamen PortLead Time：
20 days after receive the advanceProduct Detail

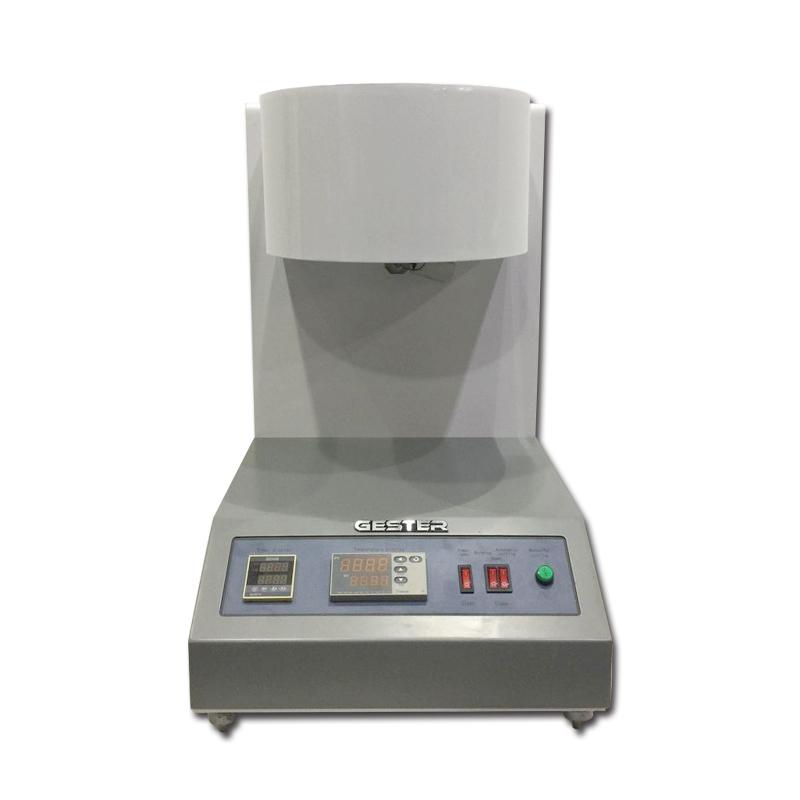

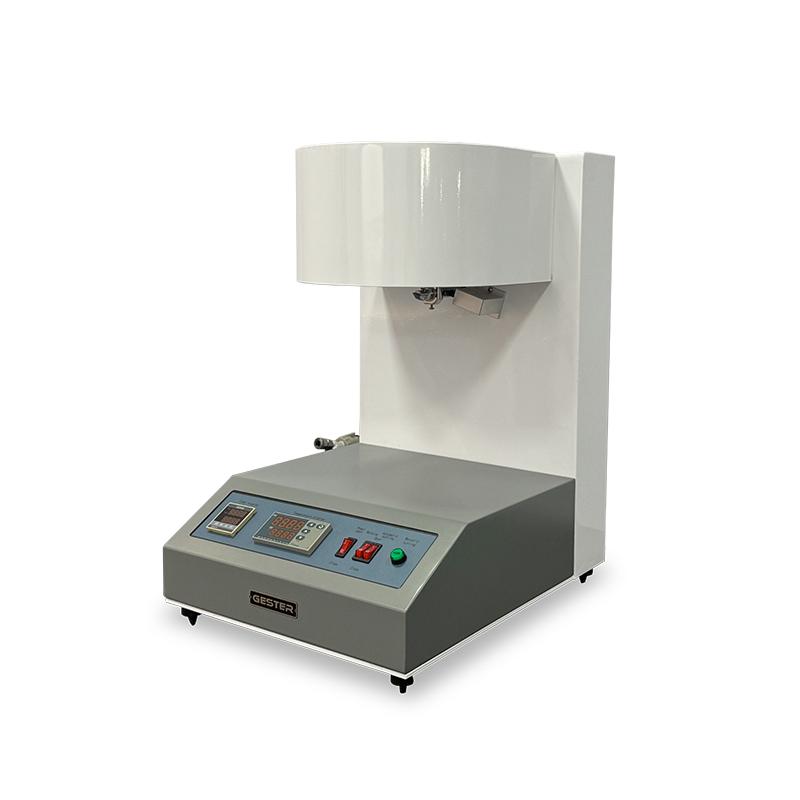

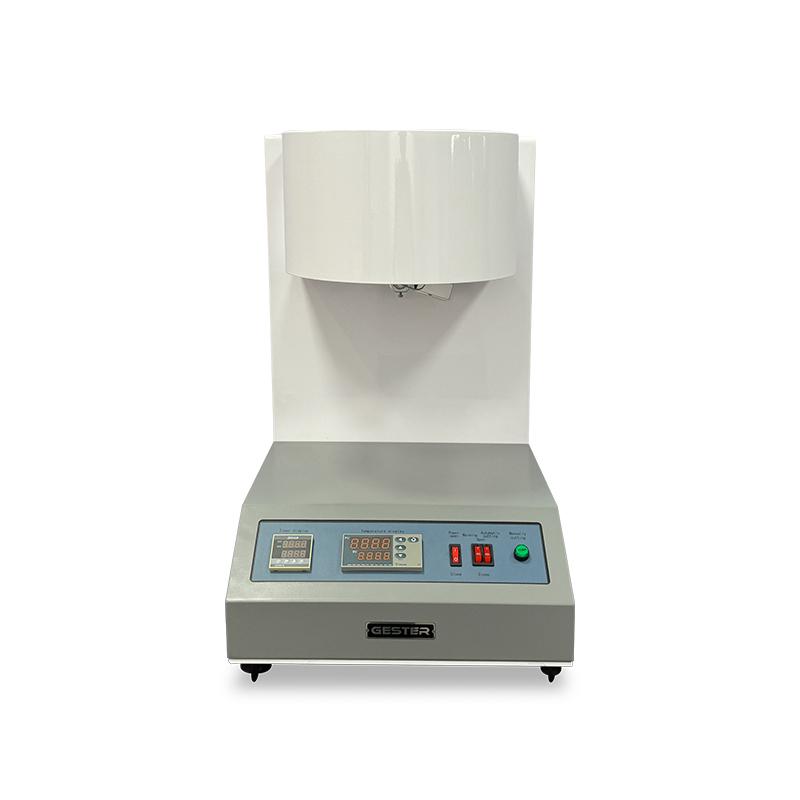

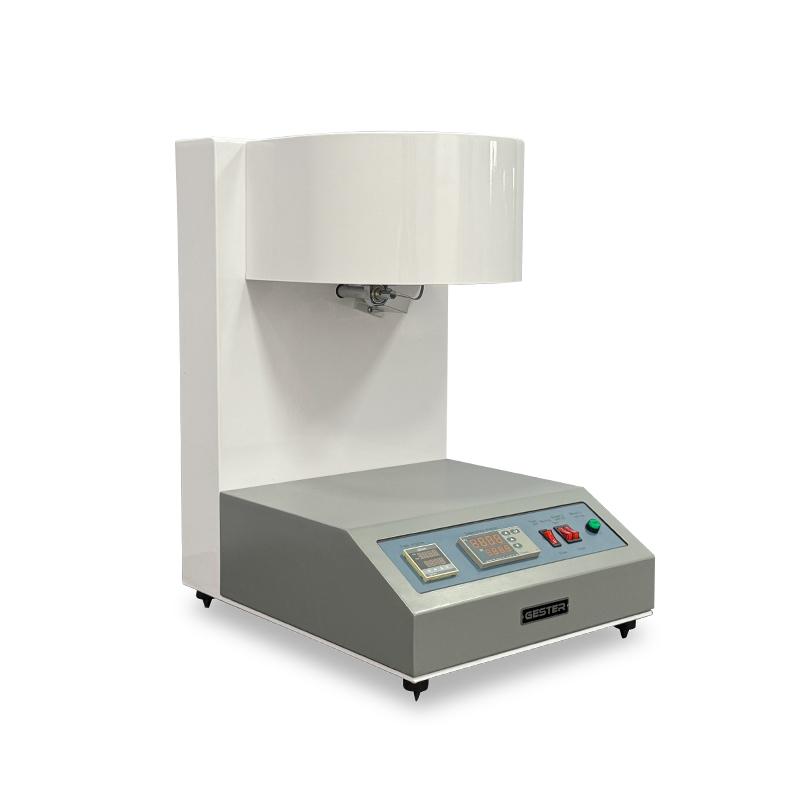

Melt Flow Tester GT-KC67
Application:
This Melt Flow Index Tester adopts new generational manual smart instrument and on-off time relay
output control, the period of constant temperature of instrument is
short and overshoot is minimum. The part of temperature control adopts
molding temperature control unit table to make the precision of
temperature control and the stability of product get the effective
guarantee. To make it be convenient for user, this instrument integrates

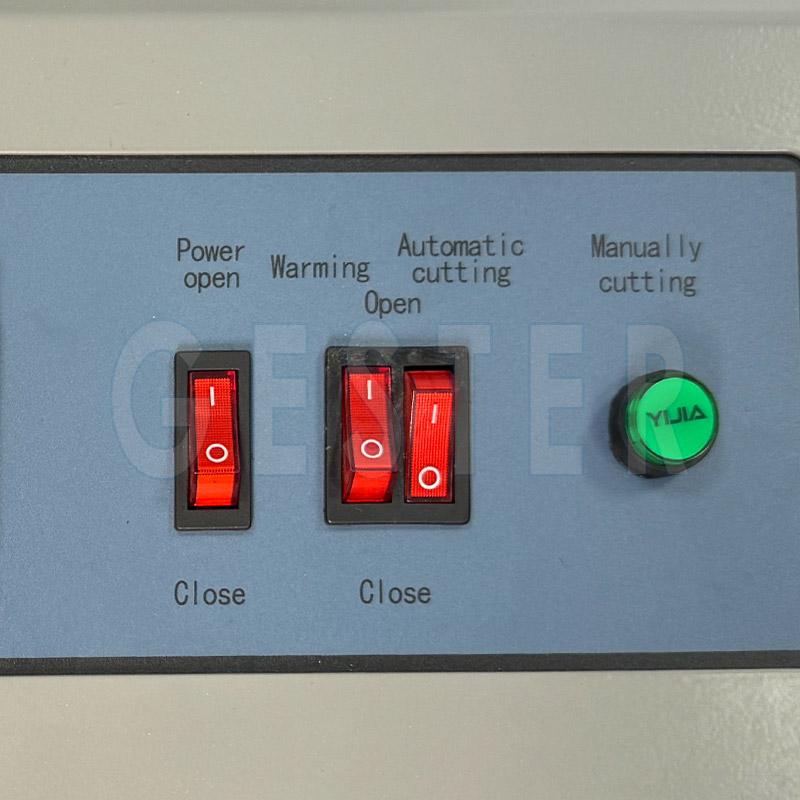

the two cropping methods of time controlled and manual operation as
one(cropping interval and the cropping time can be set randomly).
This Melt Flow Index is the Taiwan model, with high product intelligence and high degree automatic, broad applicable range, fast raising temperature speed, high product precision,reliable and stable performance, it is the ideal test and teaching instrument for the plastic raw materials and plastic products manufacturing enterprises, quality supervision, inspection and institutes, universities and colleges, etc.
|
Model |
GT-KC67 |
|
Testing range |
0.1-400.00g/10min (MFR) |
|
Temp. range |
Room temp. -450℃ |
|
Temp. Control precision |
±0.2℃ |
|
Timing precision |
1S or 0.01S, can be adjusted |
|
Timing range |
1-9999S or 0.01-99.99S, can be adjusted |
|
Load |
(GB/ISO)0.325、1.2、2.16、3.8、5、10、12.5、21.6 (KG) |
|
Cut material method |
Manual, time control |
|
The inner diameter of the barrel |
9.550mm±0.007mm |
|
Length of charging barrel |
150mm |
|
Steel piston |
Length: 190mm; Diameter: >9mm (Diameter of piston head: 9.474±0.007mm, length of piston head: 6.35±0.1mm) Marking line space: 20mm, 30mm |
|
Die |
Tungsten carbide material length: 8.000mm±0.025mm inner diameter: 2.095mm±0.005mm |
|
Power Supply |
1∮AC 220V 50/60HZ |
|
Dimensions( L x W x H ) |
400mm×500mm×640mm |
|
Weight |
60Kg |
|
Standard |
GB/T 3682 ISO1133, ASTM D1238 |
