Mouth-actuated Tester is suitable for Toy Durability test Toy safe Durability test, such as whistles with a ball, the sounders with a reed and other toys.
Brand:
GESTERItem NO.:
GT-M03Order(MOQ):
1Payment:
T/T, L/CShipping Port:
XiamenLead Time：
30 daysProduct Detail

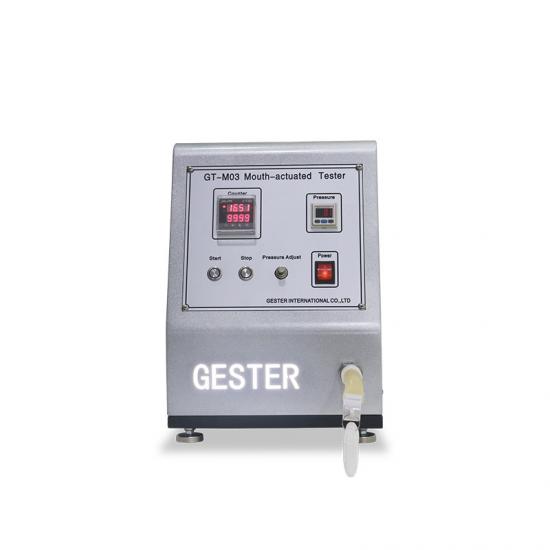

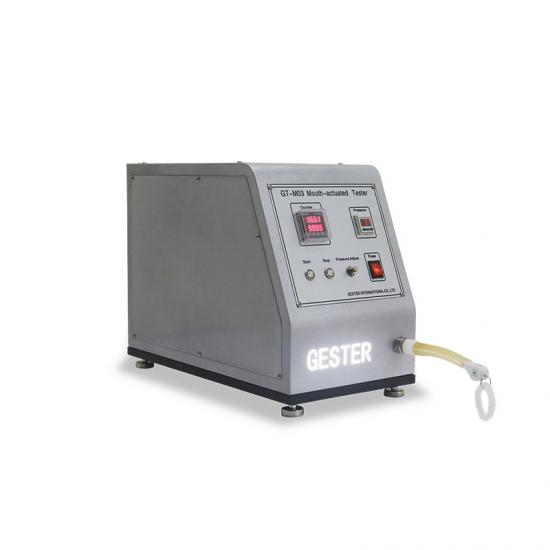

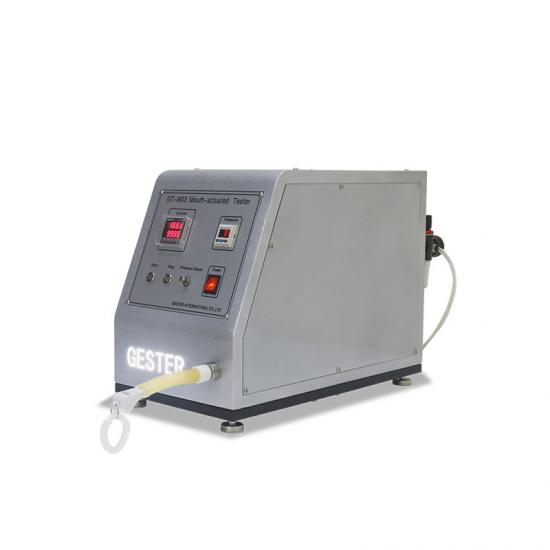

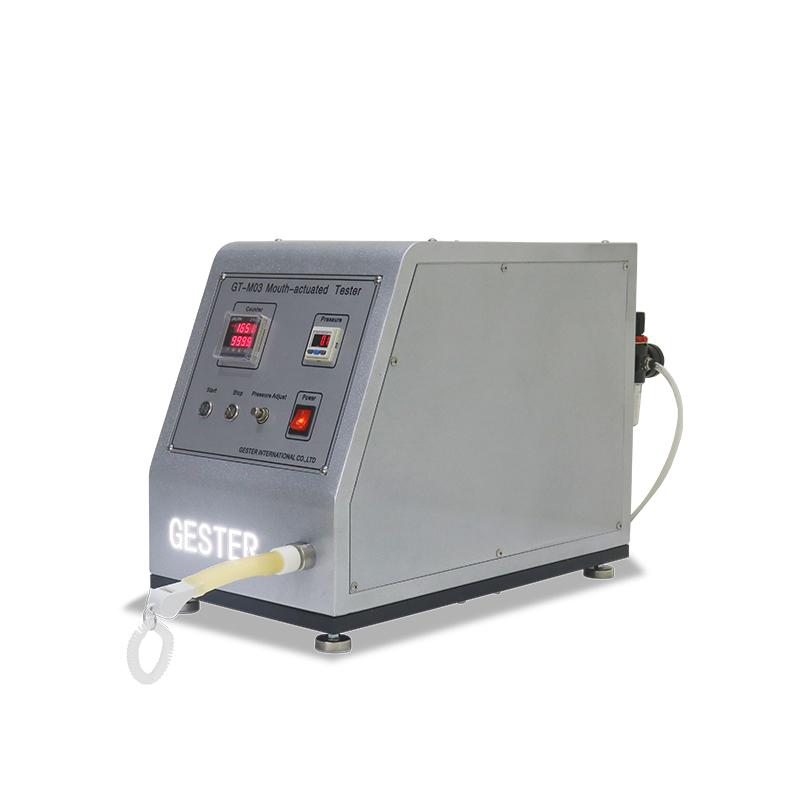

Mouth-actuated Tester GT-M03
|
Application:

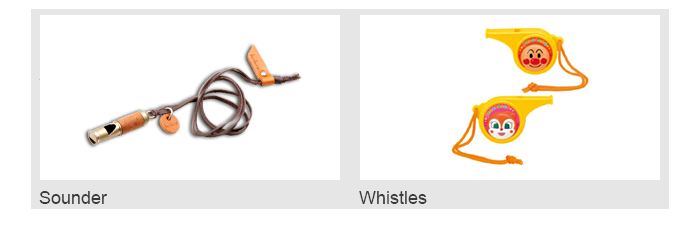

This Mouth Toy Durability Tester is suitable for the test of the safety of the Mouth-Actuated Toys, such as whistles with a ball, the sounders with a reed and other toys. This tester will blow-off certain volume gas in a certain speed and inhale the toy, blow-off and inhale alternately for 10 times, after the test, you should test the toy and the deciduous parts whether they are findings.
Satndards:
EN 71-1 ISO 8124-1 ASTM F963 GB 6675.2
|
Model |
GT-M03 |
Blow and suck air volume |
295±10 cm3 |
Blow and suck frequency |
1 cycle/ 5s |
Test air pressure |
13.8 Kpa |
Testing times |
10 times |

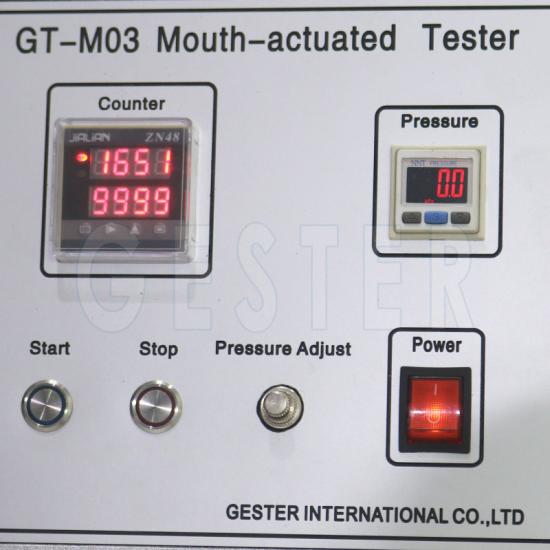

Air pressure meter |
Digital, Units, Kpa; The positive and negative pressure display |
Dimensions (L×W×H) |
27×56×39cm |
Weight |
≈24kg |
Power supplier |
AC220V 50/60HZ |
Accessories |
Tube gripper -3pcs |
