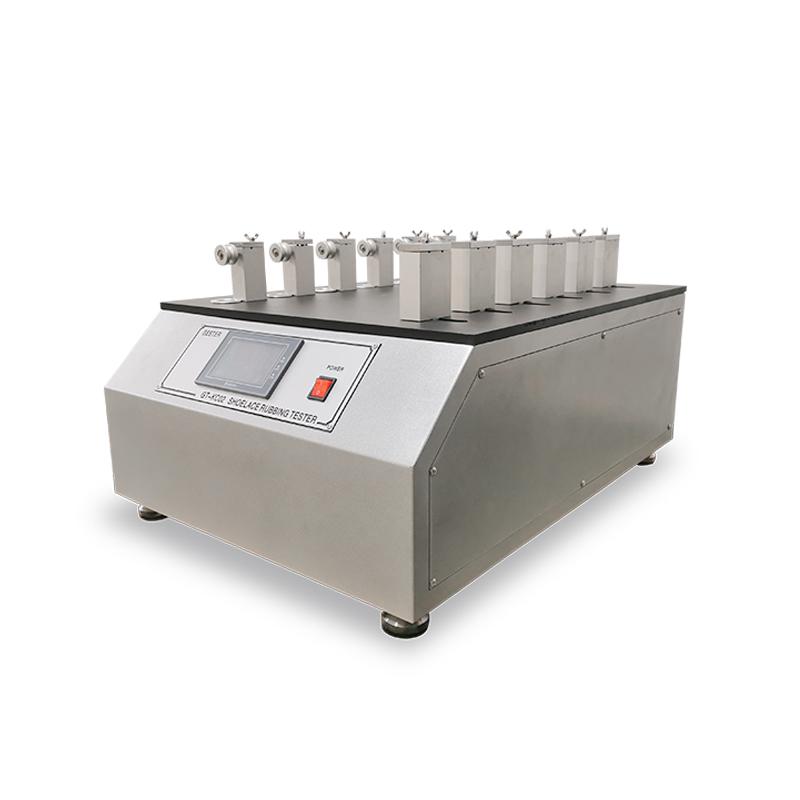

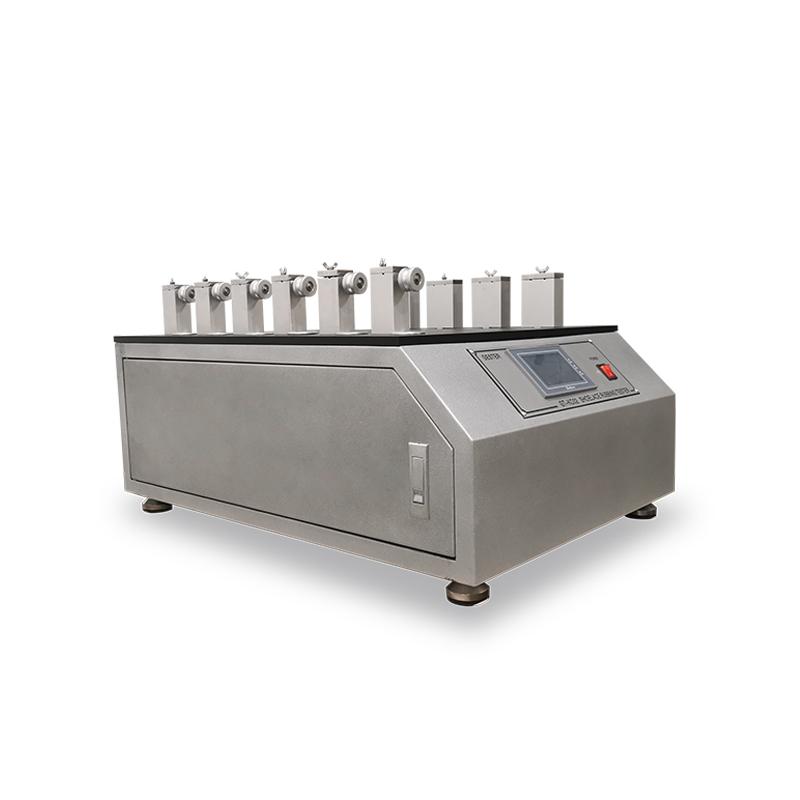

Shoelace Rubbing Tester GT-KC02
|
Application: This Shoelace Rubbing Tester is used to test the abrasion resistance for shoelace of cotton, hemp, chemical fiber or other materials. Standards: DIN 4843; SATRA TM 154; ISO 22774; QB/T 2226; GB/T 3903.36, ISO 2023 Annex B
|

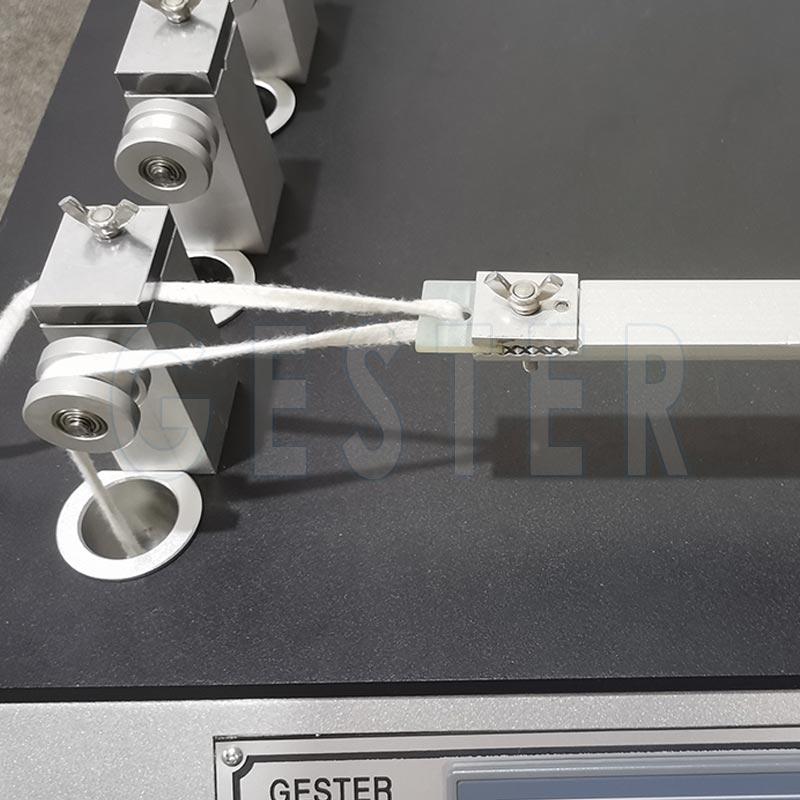

Take two shoelace, mutually hook in the middle. Clamp the both ends of the shoelace at the movable fixture of shoelace rubbing tester, which can make reciprocating linear motion; clamp one end of the other shoelace on the corresponding fied fixture and another end of the shoelace round by a fixed pulley and hanging the a weight. Make the two shoelace abrasion each other by reciprocating linear motion. Then check the wear resistance, when the machine run up to pre-set times, the machine stop.
|
Model |
GT-KC02A |
GT-KC02B |
|
Test position |
4 groups |
6 groups |
|
Control |

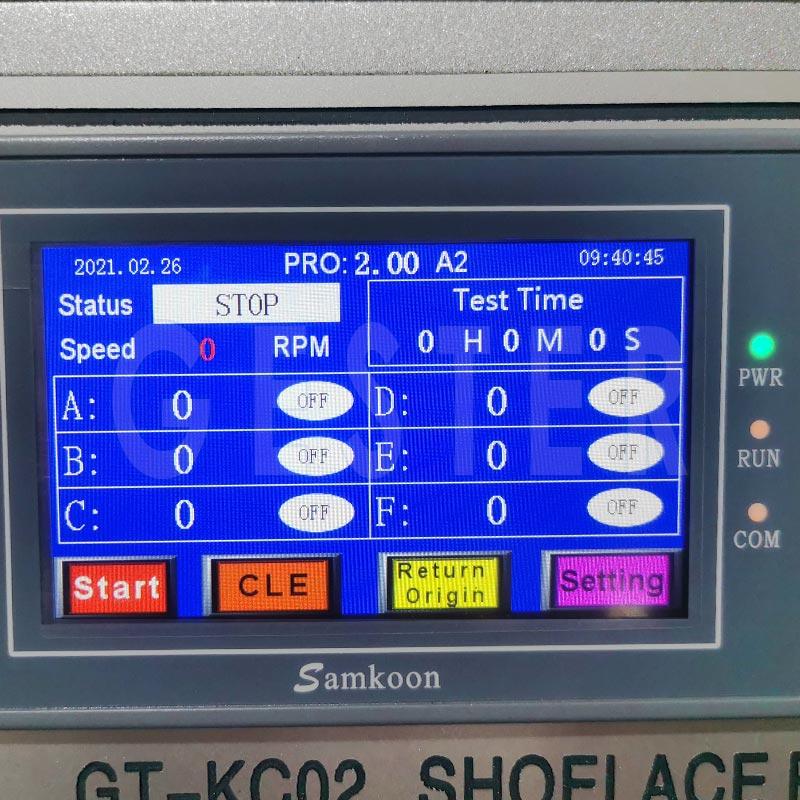

Touch-screen control, 0~999,999 |
|
|
Min. Separation between movable and fixed fixtures |
280 ±50 mm |
|
|
Movable fixture stroke |
35± 2 mm |
|
|
Test speed |
60 ± 6 cycles/min |
|
|
Sample loading gauge |
Angle 52.5degree; Length120 mm |
|
|
Stainless metal strip |
W: 25mm, L: 250mm |
|
|
Weight |
250 ± 3g |
|
|
Power supply |
1∮AC 220V 50/60HZ |
|
|
Dimensions ( L x W x H ) |
66 x 58 x 42cm |
|
|
Weight |
50 kg |
|
Accessories
|
Standard accessories |
GT-KC02A |
GT-KC02B |
|
250g Weights |
4pcs |
6pcs |
|
Stainless metal strip |
4pcs |
6pcs |
|
Clip |
4pcs |
6pcs |
|
Sample loading gauge |
1pc |
1pc |
|
Standard eyelet |
4pcs |
6pcs |
|
Metal eyelet |
4pcs |
6pcs |
|
Power line |
1pc |
1pc |
All kinds of shoelace materials can be tested on the Shoelace Rubbing Tester GT-KC02.
