Smaller Seat Loading pad GT-LB01-3


Product Introduction

Application:

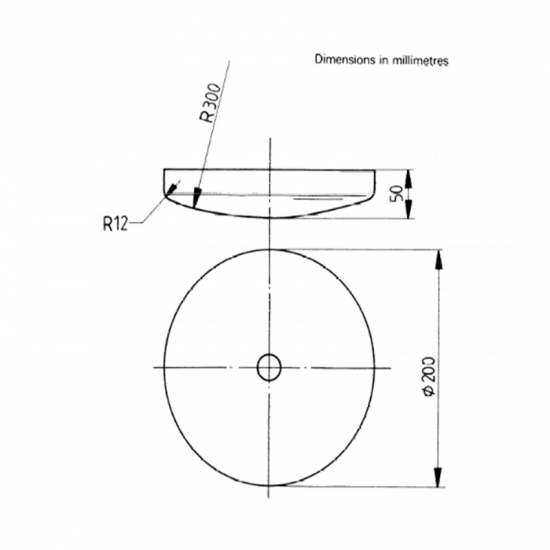

Smaller seat loading pad,  which is a rigid circular object 200 mm in diameter, the loading surface of which has a convex spherical curvature of 300 mm radius with a 12 mm front edge radius.



Standards:

GB10357-3 -2013, ISO7173-1989

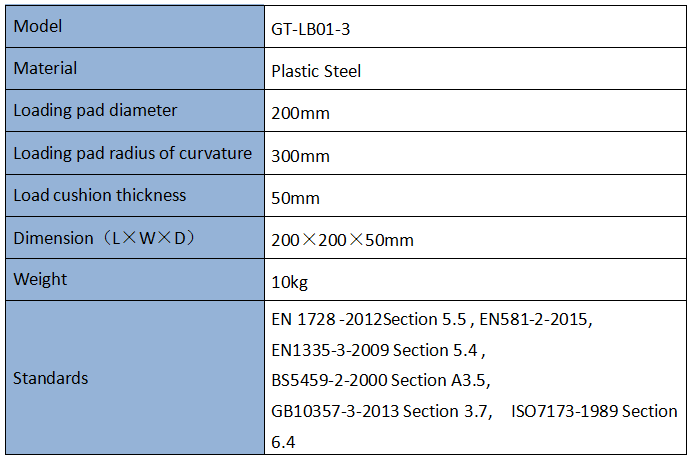

Key Specifications





Applications Industry

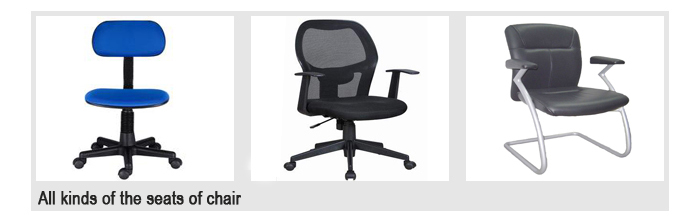

All kinds of seats of chair can be tested on the Smaller Seat Loading Pad

inquiry now
