Taber Abrasion Tester is used to determine the wear resistance of materials and assess its wear resistance degree
Brand:
GESTERItem NO.:
GT-C14BOrder(MOQ):
1Payment:
T/T, L/CProduct Origin:
ChinaShipping Port:
China PortLead Time：
20-30 DaysProduct Detail

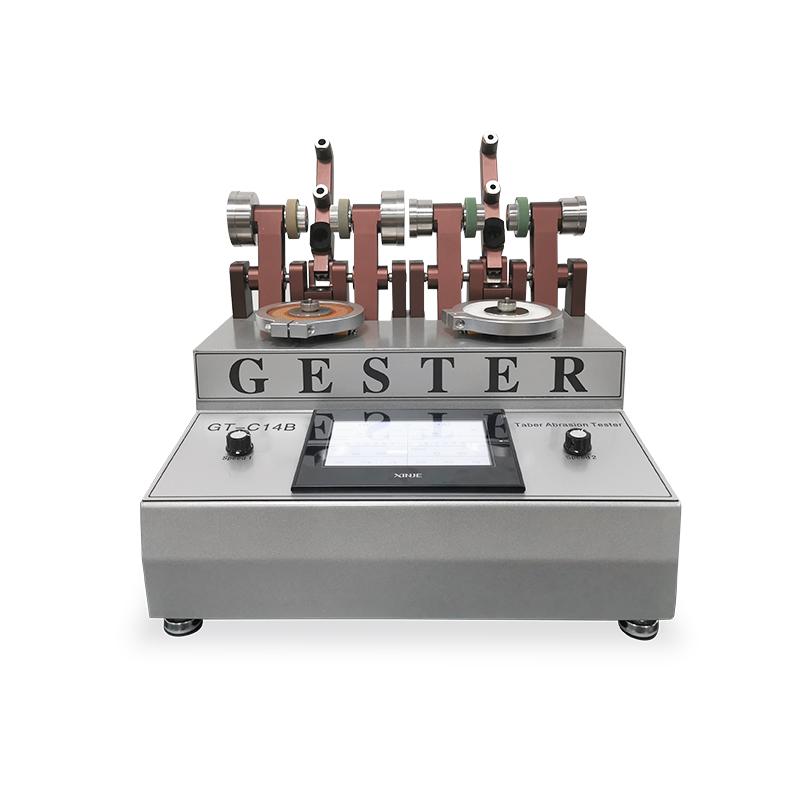

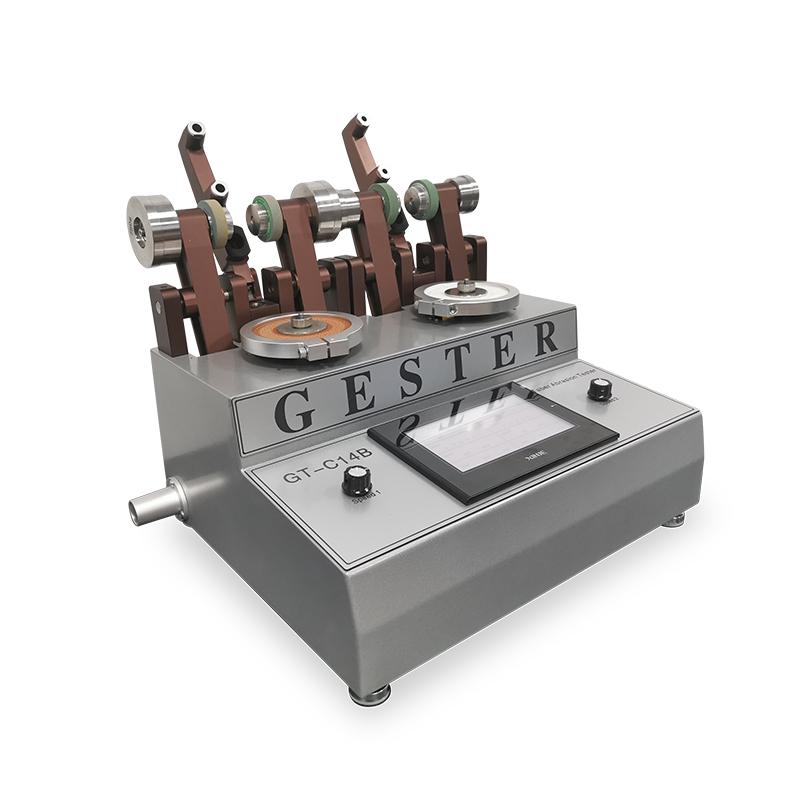

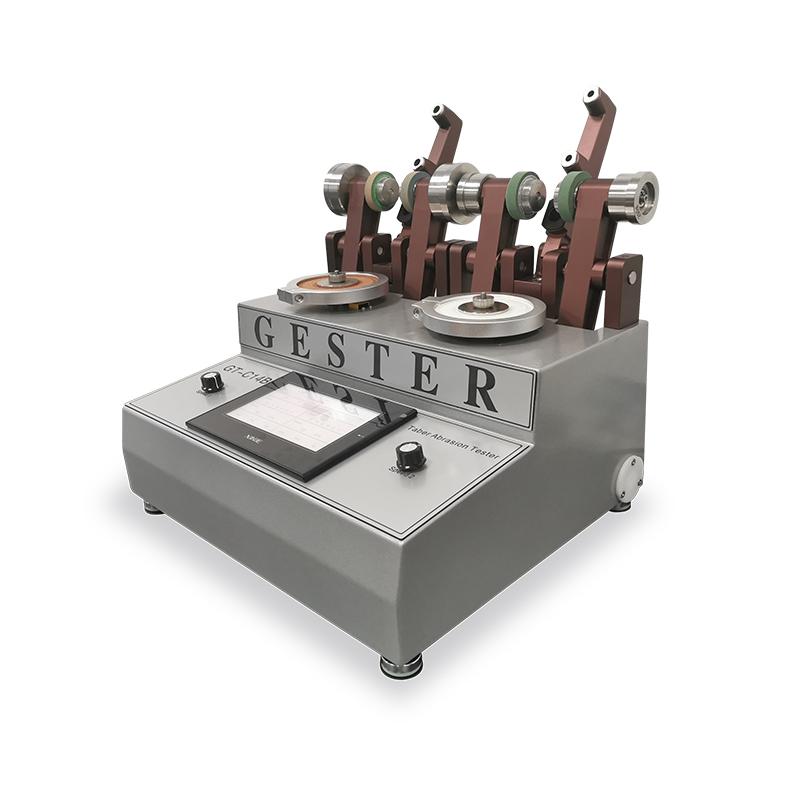

Taber Abrasion Tester GT-C14B
|
Application: The Taber Abrasion Tester is used to determine the wear resistance of materials and assess its wear resistance degree, like measuring its mass loss, thickness loss, and transmittance etc.It’s applicable for flat products, like suitcases, carpet, cardboard, clothing, glass, plastic coatins, metal coating, paint, varnishes, decorative sheets, high pressure sheets, plastics, textiles, flexible floor mats, traffic paint, tile, anodizing layer, blankets, electronic components, decorative plates, wax, label, leather, dental materials, automobile interior decoration, resin, furniture, etc. Taber Abrasion Test Standards:
ASTM D3884, ASTM D1175, ASTM D1044, ASTM D4060, ASTM D4685, TAPPI T476, ISO 9352, ISO 5470-1, JIS K7204, JIS A1453, JIS K6902, JIS L1096, JIS K6964, DIN 52347, DIN 53109, DIN 53754, DIN 53799, SATRA TM163 |
|

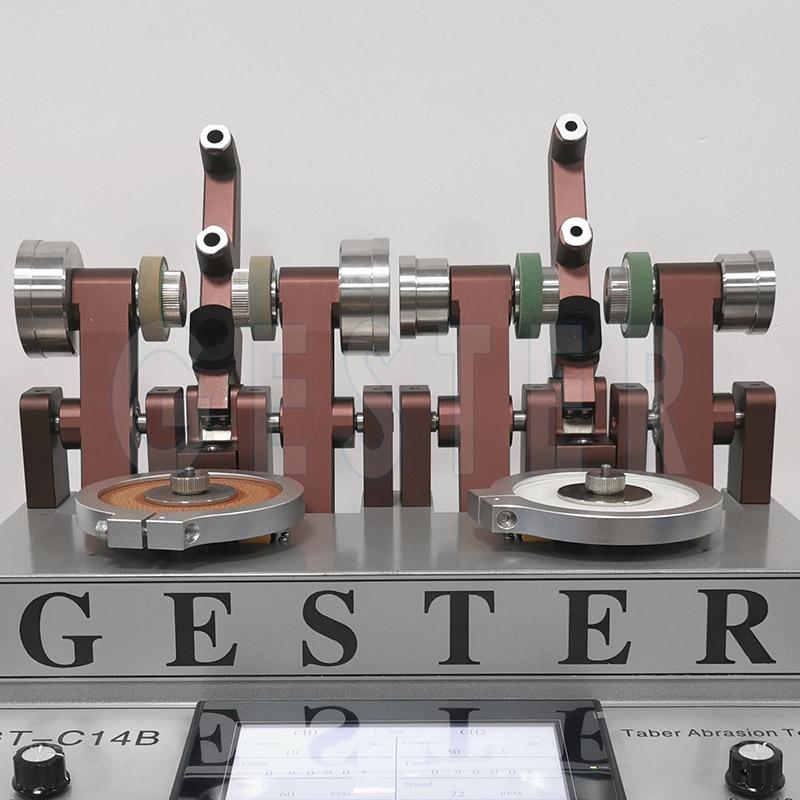

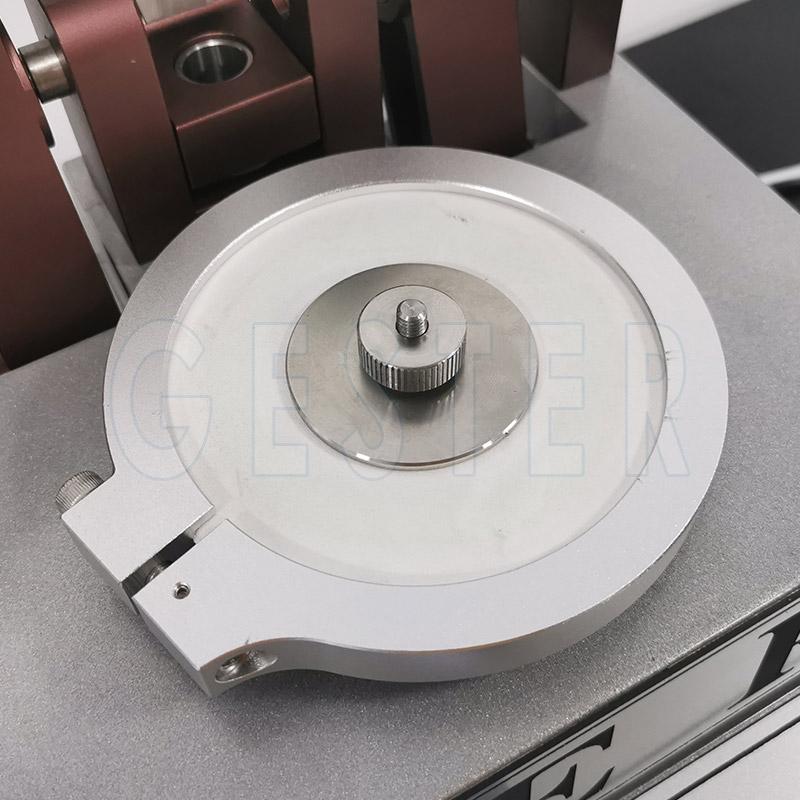

1. Unique wear process. Place test sample on turntable and two abrasive wheel press on material to make material to wear. 2. Specimen turntable speed control options of both 60 rpm and 72 rpm. 3. Precision steel weights of 250 grams and 750 grams are furnished to provide standard wheel loads of 500 and 1000 grams.Weights are marked to show total load on each wheel. This marking includes the weight of the abrading arm (250 grams). 4. Taber Type Abrasion Tester Can test with different wear medium and accessories. |
|
Model |
GT-C14B |
|
Test position |
2 |
|
3 kinds of load |
250g, 500g, 1000g |
|
Wheel internal faces apart |
52.4±1.0 mm |
|
Turntable speed |
60±2 rpm or 72 ±2rpm |
|
Counter |
LCD display 0-999999 |
|
Power supply |
AC220V 50/60Hz |
|
Dimensions ( L x W x H ) |
60×37cm ×27cm |
|
Weight |
30kg |
|
Control mode |
Touch screen control |
|
Standard accessories |
1set |
250g weights |
|
1set |
750g weights |
|
|
pack of 5 |
Paster |
|
|
CS-10 or H18 |
Calibrase wheels (Option) |
|
|
1pcs |
Power line |
|
|
Optional accessories |
Optional |
Abrasive paper 150# |
|
Optional |
Refacing discs S-11 |
|
|
Optional |
Calibrase wheels:CS-32,CS-10F,CS-17,CS-5,CS-35,H-22,H-10,H-38 |
Taber Wear Wheel Selections
Sand wheel / Type
Material/Grind characteristic
Kind
Composition
CS-10/Soft
Rubber & Abrasive grain/ Gentle
Elasticity
Rubber,Abrasives
CS-10F/Soft
Rubber & Abrasive grain/ Very gentle
Elasticity
Rubber,Abrasives
CS-17/Soft
Rubber & Abrasive grain/Coarse
Elasticity
Rubber,Abrasives
H-10/Hard
Glass material/Fine roughness
Inelastic
Ceramics
H-18/Hard
Glass material/Moderate fine roughness
Inelastic
Ceramics
H-22/Hard
Glass material/Very fine roughness
Inelastic
Ceramics
H-38/Hard
Glass material/Very meticulous
Inelastic
Ceramics
CS-0, S-32/Soft
Smooth rubber/ Very gentle
Elasticity
No abrasive rubber
S-42, S-33/ Soft
Sandpaper stripe /Moderate
Elasticity
Sandpaper stripe
CS-5/Soft
Wool felt/ No wear
Elasticity
Blanket
S-35/ Hard
Tungsten carbide/Cutting
Inelastic
Tungsten carbide
S-39/--
Leather / Gritfeeder
Leather
|
Coating |
Brick |
Plywood |
Plastic |
Cloth |
|
CS10,CS17 |
CS17,H18 |
CS32,CS33 |
H18,H22,CS17 |
H18,H22,CS17 |
