The whole process of color fastness to rubbing.


Textile Sample Color Fastness To Rubbing

The whole process of color fastness to rubbing.

This test is designed to determine the degree of color which may be transferred from the surface of a colored fabric to a specify test cloth for rubbing (which could be dry and Wet).

Equipment that needed for measurement:

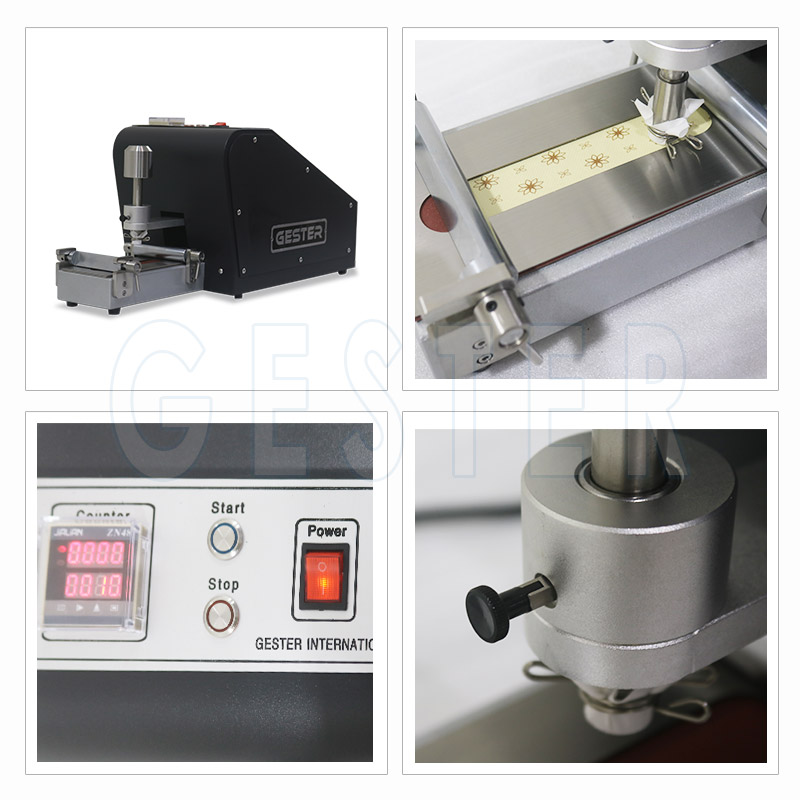

1. Crock Meter GT-D04.
2. Cotton Rubbing Cotton.
3. Grey Scale
4. Stop Watch
5. Color Matching Cabinet GT-D08.

Size of Fabric:
You will need to have 14 Cm * 5 Cm pieces of textile fabric sample (one warp direction/wale direction and other weft/course direction).

Test Procedure of Color Fastness To Rubbing:
a)Lock the test specimen (textile sample) onto the base of the crock meter.
b)Using the spinal clip, set 5 Cm * 5Cm of the white cotton fabric to the finger of the crock meter.
c)Lower the covered finger on the test sample.
d)Turn hand crank at the rate of the one turn per second.
e)Remove the white rubbing test cloth and e valuate with grey scale.


In this stage compare the contrast between the treated and untreated white rubbing cloth with grey scale and rated 1 to 5.
