Chair Seating Impact and Durability Testing Machine applies to all types of chairs, with 2 functions of chair seating impact and seating durability test.

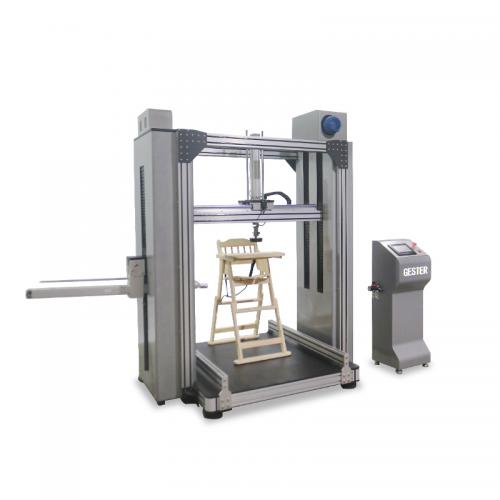

High Chair Seating Impact Testing Equipment GT-MJ31 Product Introduction Application: This tester applies to all types of high chairs, with 2 functions of chair seating impact and seating durability test. The purpose of this test is to evaluate the ability of the chair to withstand heavy and abusive impact forces on the seat and evaluate the ability of chairs to withstand fatigue stresses and wear caused by downward vertical force(s) on the seat. Standards: EN14988-2017 Section 5.17, 8.8.5 Feature 1.The main structure of the machine is made of aluminum, beautiful and easy to maintain. 2. Using PLC touch screen control, operation more convenient. 3. In addition, the machine loading device using electric control movements, more extensive test space. Key Specification Model GT-MJ31 Impactor Diameter 150mm Impactor Weight 23kg Cylinder Stroke 0~300mm Beam Stroke 900~1350mm Test Speed 10~30r/min Test Times 0~999999times, settable Control PLC touch screen control Dimensions(W×D×H) 150×150×200cm Weight ≈300Kg Air Source ≧7kgf/cm^2 stable air source Power 1∮ AC 220V 50Hz 5A Accessories: 23kg Impactor 1pc
Chair Armrest and Seat Front Edge Testing Machine GT-LB03L tests the strength and durability of the handrails, seats, or other parts by simulating the loading of the seats during routine use.
Computer Five Feet Compression Resistance Testermachine is used to test the compressive strength of the five feet of the office seat, and test the stressful situations of the feet by the vertical pressure.Secure the chair casters to the turntable, set an certain time and an certain times of forces on the feet, check the feet anti-damage ability.
Chair Backrest and Tilt Mechanism Durability Test Machine The latest design of the machine has two test functions: First test is to evaluate the ability of the chairs to withstand fatigue stresses and wear caused by rearward force on the backrest of the chair. Second test is to evaluate the ability of the tilt mechanism to withstand the fatigue stresses and wear caused by repeated tilting.
