AATCC Electronic Crockmeter | Crocking test machine
Brand:
GESTERItem NO.:
GT-D04AOrder(MOQ):
1Payment:
T/T, L/CProduct Origin:
ChinaShipping Port:
China PortLead Time：
Have in stockProduct Detail
Electronic Crockmeter GT-D04A | Textile Testing Equipment Manufacturers
Application of Electronic Crockmeter:
Electronic Crockmeter is used to determine the colour fastness of textiles to dry or wet rubbing. A pinned acrylic sample holder ensures rapid sample mounting and repeatability of results.
BS 1006- D02, ISO 105- X12/D02, AATCC 8/165, ASTM D6279, JIS L 0849 Type1, JIS L 0862 Type1
|
Model |
GT-D04A |
|
Control mode |
Electronic control |
|
Application range |
Fabric and other soft materials (No sample cutting required) |
|
Rubbing head diameter |
16mm |
|
Vertical pressure |
9N±0.2N |
|
Rubbing head track |
104±3mm |
|
Test speed |
60±2 rpm |
|
Power supply |
AC 220V 50/60HZ |
|
Dimension ( L x W x H ) |
62 x 26 x 28cm |
|
Weight |
14kg |
|

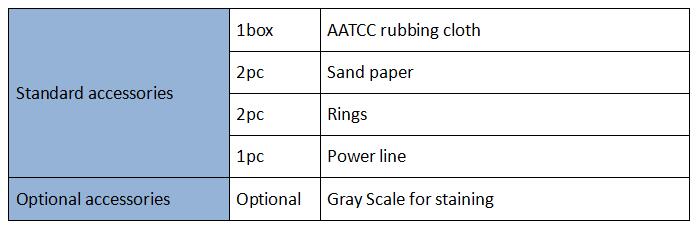

Standard accessories |
1box |
Rubbing cloth |
|
2pc |
Sand paper |
|
|
2pc |
Rings |
|
|
1pc |
Power line |
|
|
Optional accessories |
Optional |
Gray Scale for staining |
Need to test harder materials or specialized cut samples?
Explore our Crockmeter GT-D04B designed for fabric soft and hard materials (Sample cutting required). Contact us!
