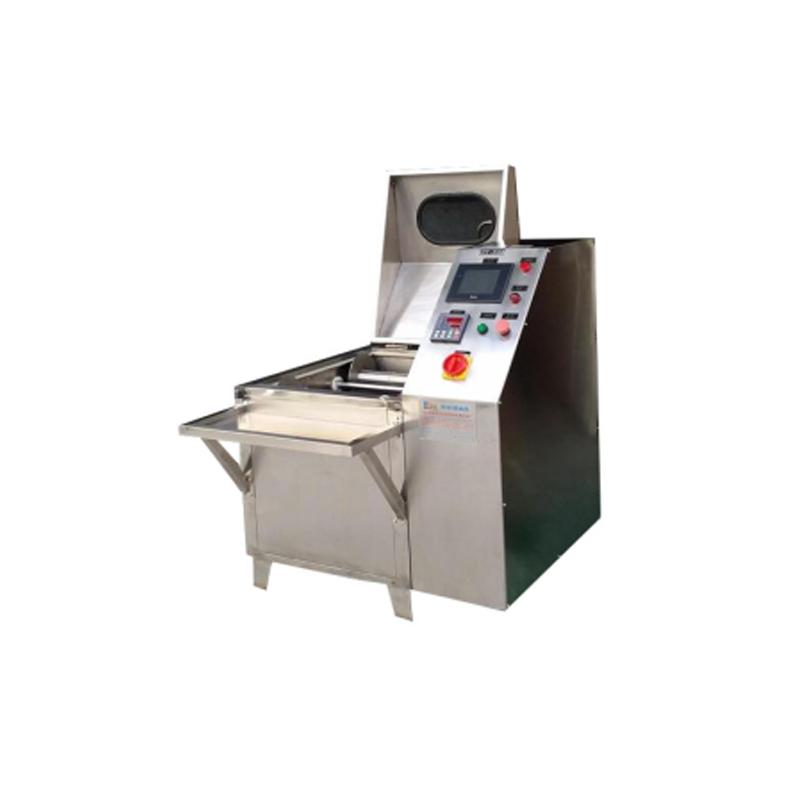

Laboratory Jigger Dyeing Machine GT-D27

Laboratory Jigger Dyeing Machine GT-D27

Application

Jigger Dyeing Sampling Machine is suitable to test the dyeing of cotton and linen cloth, viscose, man-made fiber, etc, and suitable for dye material, such as direct dyes, acid dyes, basic dyes, insoluble azo dyes, and reactive dyes, etc. This apparatus can achieve bleaching and dyeing with low-liquor ratio, simulates as nearly as possible the mechanism of production jigs.

1. Laboratory Scale Jigger Dyeing Machine Operating Interface: Color touch screen man-machine interface, operate easily, programmable function, presetting dyeing technics for customer
2. Constant Fabric Speed: Adopt advanced electronic encode control speed technology to precise control of cloth speed,maintains a constant cloth speed real-timely;and convenience to used.
3. Temperature Control and Monitor: Adopt out-heating technology,avoid heating unevenness, automatic temperature control system monitors dyes solution’s temperature accurately, and display the temperature on panel digitally;
4. Fabric Tension: Exert tension on cloth by adjusting different linear speeds of two main rollers, and maintain constant  tension, tension value direct input by color touch screen, adjusts speed automatically;
5. Lab Jigger Dyeing Machine Motor: 2 sets 120W precision-controlled motors, and equipped with high quality reducer;
6. Controller: Industrial Programmable Logic Controller(PLC), high reliability, and advanced anti-interference ability;
7. Structural Design: Modular design, convenient for precision production and properties expanding, specially designed cloth-leading structure, facilitate and smart, easy to install and dismantle;
8. Dye Vat: Imported SUS304 stainless steel, avoid rust, durable; ladder structure, consume small quantity dyes solution;
9. Dyes Solution Cycle Mode: Auto-stirring, keep dyes solution evenness;
10. Winding Length: Automatically records, pre-settable, measurable and controllable
11. Alternating Direction: Reverse automatically according to cloth length and number of cycles
12. Timing: Adjustable, end of cycle alarm.
13. Counting: Tracks and cycles are counted automatically.
14. Stopping mode: Stopping tracks number can be presetting
15. Drive system: Equipped with 2 sets one phase 50HZ, 120W precision control motor and reducer, initiative control separately to receive and release roller.
16. Dye vat，housing，main Roller,cloth-leading roller etc made by high grade stainless steel,fine workmanship equipment.
17. Lab Jigger Dyeing Sampling Machine Displayer:  Electronic true color touch screen.
18. Controller: Industrial Programmable Logic Controller(PLC)
19. Cooling and heat mode:One set of cooling coil;electrical heating,digital automatic temperature control system.
