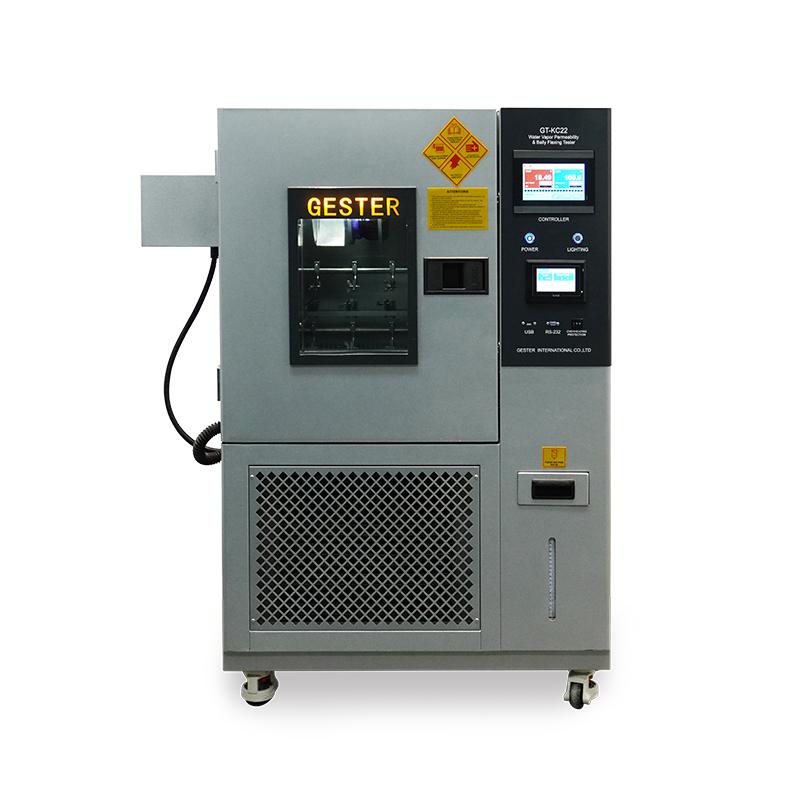

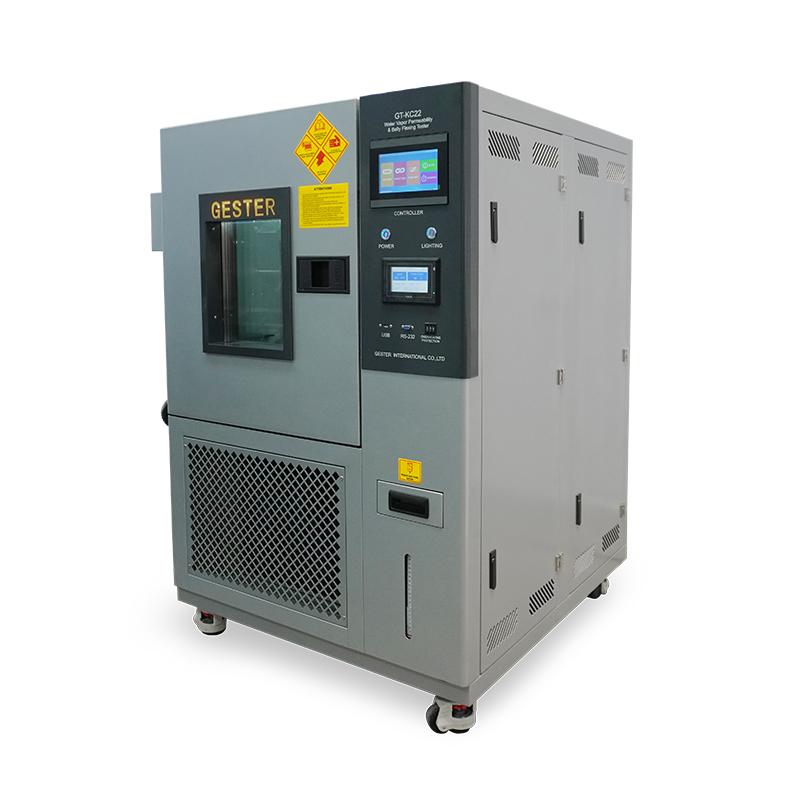

Water Vapor Permeability & Bally Flexing Tester GT-KC22

Model

GT-KC22

Control system

Touch Screen Programmable Microprocessor Control

Temperature Range

-40~100℃

Temperature Accuracy

+/-0.5℃

Humidity Range

20%～98%RH

Humidity Accuracy

+/-1%RH

Inside Chamber Capacity

150L

Chamber Material

SUS # 304 Stainless Steel and Painted

Power supply

1∮AC220V 50/60HZ

Dimension(W×D×H)

110X170X180 cm

Weight (Approx)

400 kg

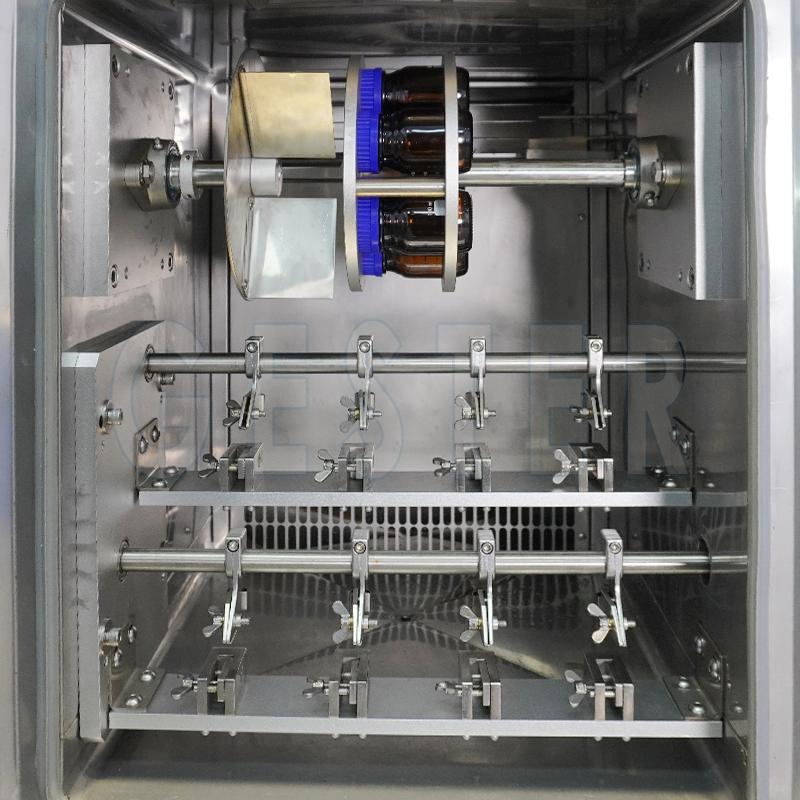

Water Vapor Permeability Parameters

Testing condition

Temperature:  (23 ± 2)°C

Humidity:  (50 ± 5)% RH

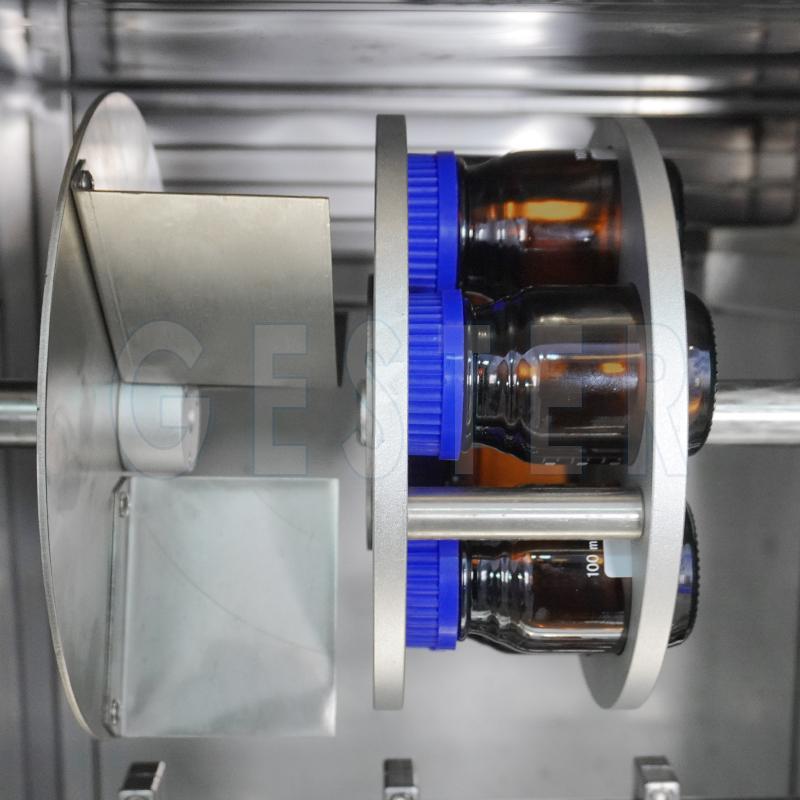

Testing bottle number

6pcs

Bottle mouth diameter

30mm

Bottles holder speed

75 ±5cpm

Fan blades

90 x 75 mm, 3 flat blades in planes inclined at 120° to each other

Fan rotate speed

(1400 ± 100) r/min

Specimen size

￠34mm

Standards

EN ISO 20344 Section 6.6.2 and 6.8, AS/NZS 2210.2 Section 6.6.2 and 6.8

GB/T 20991 Section 6.6.2 and 6.8, EN 344-1 Section 5.13

Bally Resistance Flexing Parameters

Position

8

Flexing angle

22.5° ± 0.5°

Flexing Speed

100 ± 5 cycles / flexes per minute

Counter

LCD  0 - 999,999.( Adjustment)

Sample size

70 ± 5 x 45 ± 5 mm

Standards

SATRA TM 55 ; IULTCS/IUP 20-1; ISO5402-1; ISO 17694;

EN 13512 ;

EN344-1 section 5.13.1.3 and annex C;

EN ISO 20344 section 6.6.2.8

GB/T20991 section 6.6.2.8; AS/NZS 2210.2 section 6.6.2.8; GE-24; JIS-K6545, ASTM D 6182

Testing Bottles

6pcs

Power Line

1pc

GT-D10 Drying Oven

GT-KD20 Pneumatic Sample Cutting Machine (cutter: 70 ± 5 x 45 ± 5 mm,and ￠34mm)

GT-KC51 Water Vapor Absorption Tester

GT-KC10A Bally Resistance Flexing Tester
