This GT-KC13B Martindale Abrasion Tester measures the wear and abrasion resistance of footwear vamps, natural leather, rubber outsoles, and upper textiles. It drives specimens against a standard abradant in a precise 60mm x 60mm Lissajous motion path at a regulated speed of 47.5 ± 2.5 r/min.
Available in 4, 6, 8, and 9 working stations, it features an intelligent PLC touch screen and interchangeable standard weights supporting 9kPa and 12kPa nominal pressures. A unique quick-release system allows technicians to extract individual sample holders for evaluation without halting other active stations or lifting the top plate. It fully complies with ISO 20344, ASTM D4966, ISO 12947, and SATRA TM31.
Brand:
GESTERItem NO.:
GT-KC13BOrder(MOQ):
1Payment:
T/T, L/CShipping Port:
Xiamen PortLead Time：
10-30 daysProduct Detail
Martindale Abrasion Tester GT-KC13B
This Martindale Tester to determine the abrasion resistance of all kinds of footwear vamp material. Samples are rubbed against known abrasion at low pressures and in continuously changing directions and the amount of abrasion. The unique design allows removal of individual sample holders for examination without lifting the top motion plate.
Martindale Abrasion Tester Standards:
ISO 20344-2021 section 5.24 , ISO 5470-2, ISO 12947, ISO 17704
AS/NZS 2210.2 section 6.12, GB/T 20991 section 6.12
EN 344-1 section 5.14, EN 13520, BS3424.24,
ASTMD4966, SATRA TM31, EN 388 Section 6.1
|

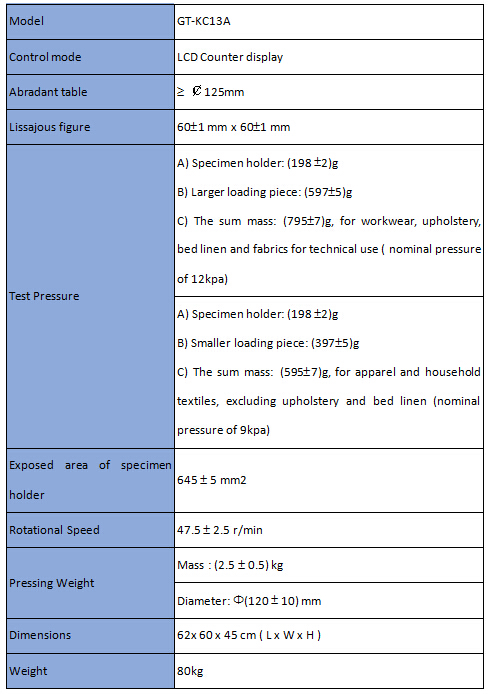

Model |
GT-KC13B-4 |
GT-KC13B-6 |
GT-KC13B-8 |
GT-KC13B-9 |
|
Working station |
4 |
6 |
8 |
9 |
|
Control mode |
Touch screen control |
|||
|
Abradant table |
≥ ￠125mm |
|||
|
Lissajous figure |
60±1 mm x 60±1 mm |
|||
|
Test Pressure |
A) Specimen holder: (198 ±2)g B) Larger loading piece: (597±5)g C) The sum mass: (795±7)g, for workwear, upholstery, bed linen and fabrics for technical use ( nominal pressure of 12kpa) |
|||
|
A) Specimen holder: (198 ±2)g B) Smaller loading piece: (397±5)g C) The sum mass: (595±7)g, for apparel and household textiles, excluding upholstery and bed linen (nominal pressure of 9kpa) |
||||
|
Exposed area of specimen holder |
645 ± 5 mm2 |
|||
|
Rotational Speed |
47.5 ± 2.5 r/min |
|||
|
Pressing Weight |
Mass : (2.5 ± 0.5) kg |
|||
|
|
Diameter: Φ(120 ± 10) mm |
|||
|

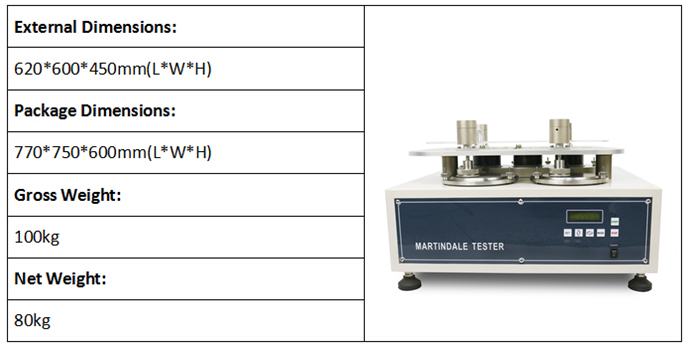

Dimensions ( L x W x H ) |
74×70×37cm |
74×70×37cm |
88×78*37cm |
88×78*37cm |
|
Weight |
About 130kg |
About 150kg |
About 160kg |
About 170kg |
Accessories:
|
Standard accessories |
1set |
Abrasion Weight And Holder |
|
2pcs for each head |
Standard Abradents Fabric Φ165mm |
|
|
Box of 60pcs |
Standard Backing Foam Φ44mm |
|
|
2pcs for each head |
Standard Woven Felt Discs Φ165mm |
|
|
1pc |
Pressing Weight |
|
|
1pc |
Cutting Die Φ165mm (Making Standard Abradents Fabric and Woven Felt) |
|
|
1pc |
Cutting Die Φ44mm (Making Samples and Standard Backing Foam) |
|
|
1pc |
Power Line |
|
|
Optional accessories |
Optional |
R1mm Holder Insert |
|
Optional |
Standard Abrasion Fabric Φ165mm |
|
|
Optional |
Standard Backing Foam Φ44mm |
|
|
Optional |
Standard Felt Discs Φ165mm |
|
|
Optional |
P400 Abrasion Paper |
|
|
Optional |
GT-C48 Pneumatic Sample Press |
|
|
Optional |
Gray Scale for Color Change |
|
|
Optional |
Gray Scale for Staining |
|
|
Optional |
EN 388 Clamping Ring for Thick Material |
