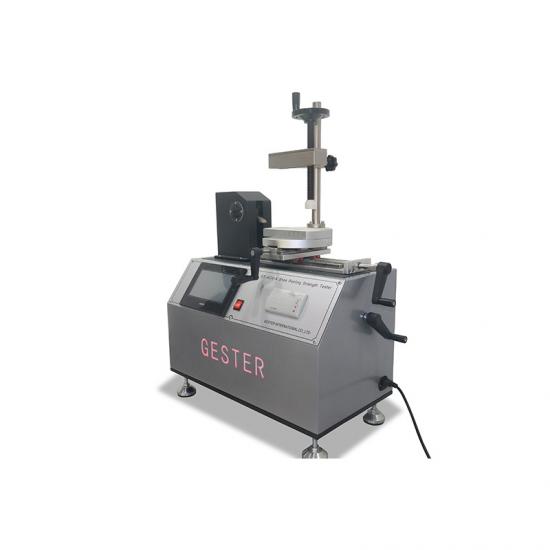

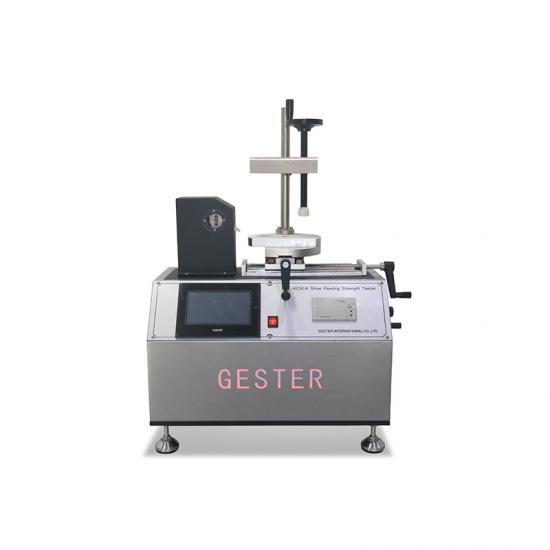

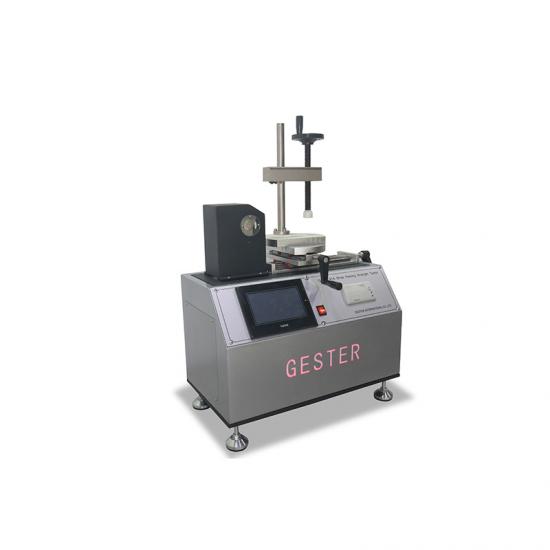

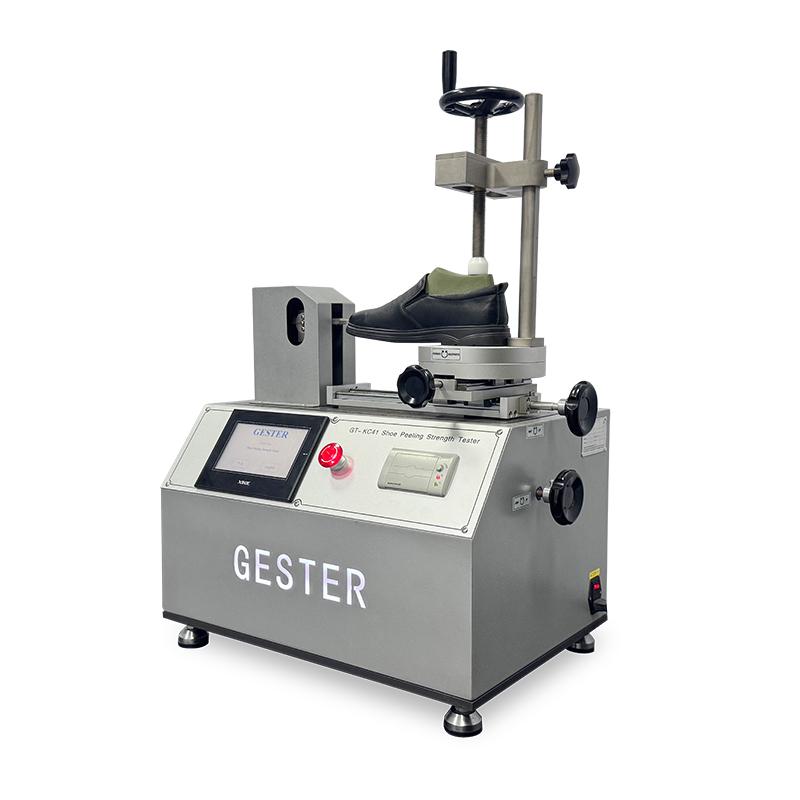

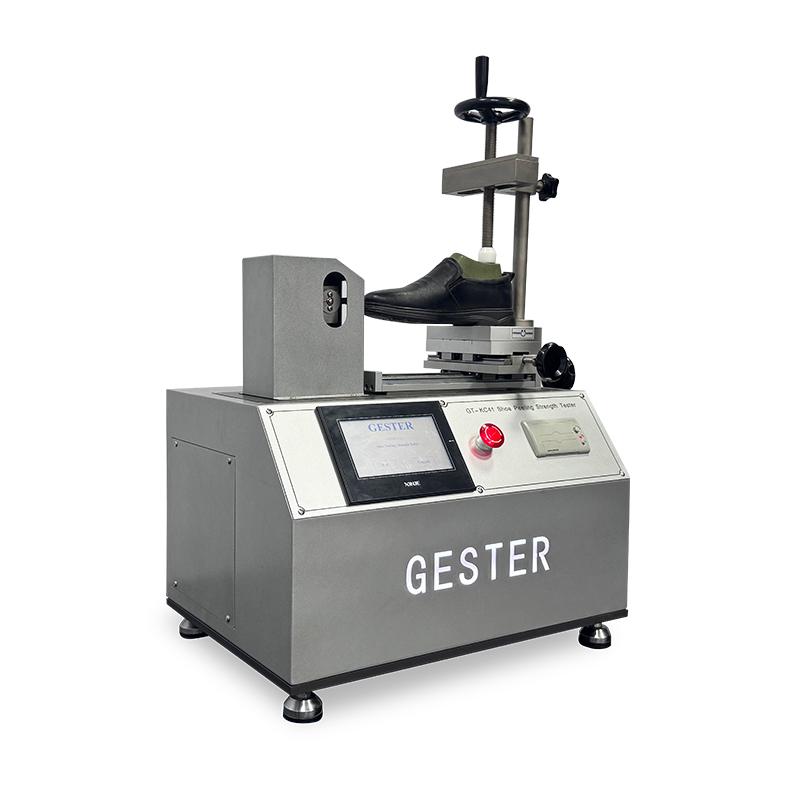

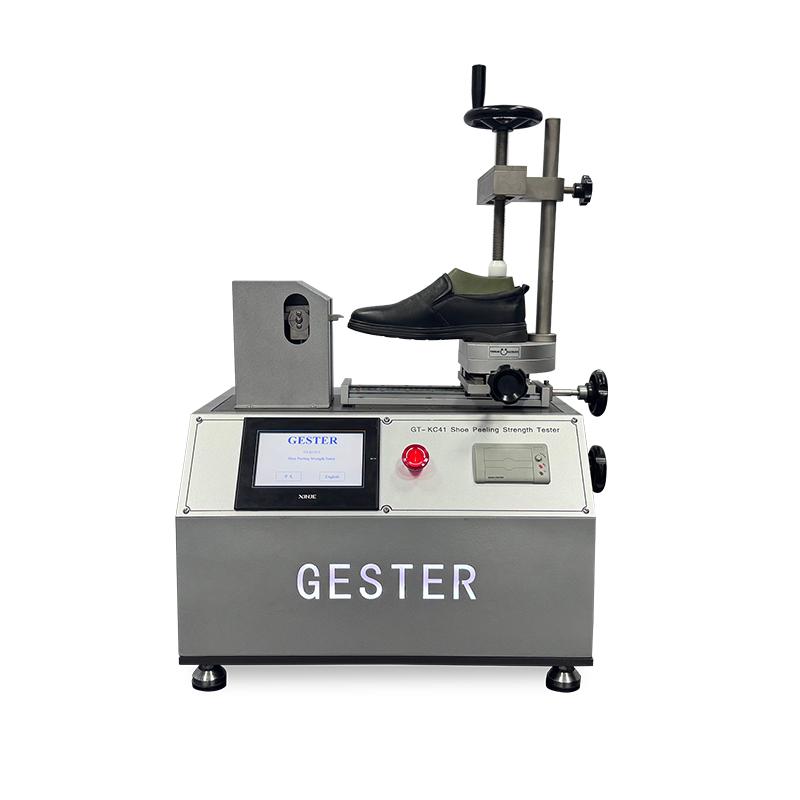

Shoe Peeling Strength Tester GT-KC41A

Product Introduction

Application:

This peeling strength tester is determined for testing the peeling strength between sole and upper of a whole shoe or between outsole and medium bottom.

Standards:

GB/T 3903.3

Dimensions

Shoe peeling strength testing machine Principle

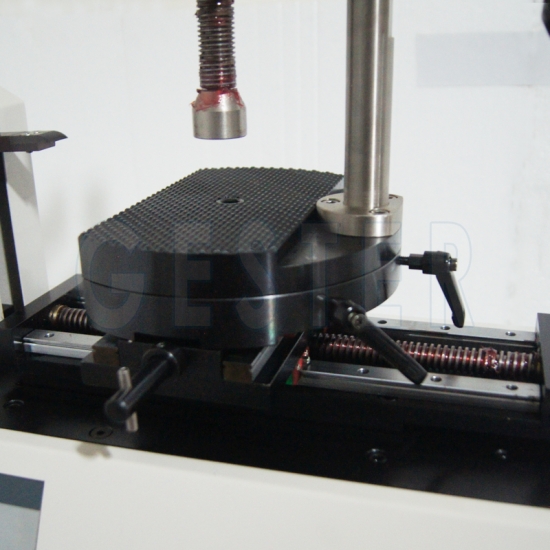

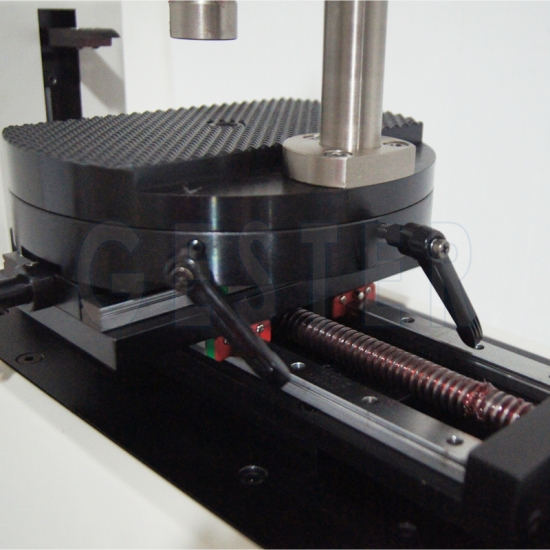

Fitting the shoe last to a whole shoe and clamping it on the peeling strength tester, strip off the joint between the sole and upper by peeling knife. The peel force is the measured value when peeling. The peeling strength can be counted as the peeling force and width of cutter point.

Key Specifications

Model	GT-KC41A
Load range	100kg
Peeling cutter`s width	20±0.2 mm and 10±0.2 mm
Peeling cutter`s moving down speed	20±2 mm/min
Elevating range	40 mm
Display method	LCD
Power supply	1∮AC 220V 50/60HZ
Dimensions (W×D×H)	60 x 40 x 85 cm
Weight	45 kg
Standards	GB/T 3903.3
Standard accessories	20±0.2 mm Peeling cutter 1pc
	10±0.2 mm Peeling cutter 1pc
	Shoe last (Size 44) 1Pair
	Power line 1pc
Optional accessories	Shoe last (Size 35, 36, 37, 38, 39, 40, 41, 42, 43, 44)
Optional accessories	Angle block gauge
