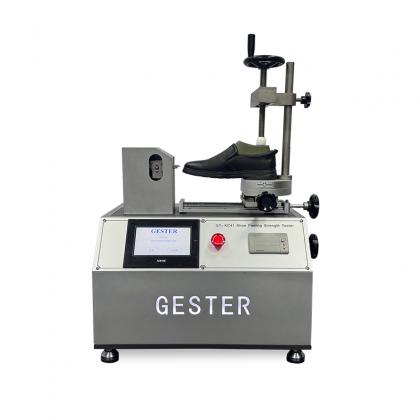

Shoe Peeling Strength Tester GT-KC41B

Peeling Strength Tester is used to determine the strength of the bond between the sole and upper at the toe and heel area of the lasted margin of completed footwear.

Brand:
GESTER
Item NO.:
GT-KC41B
Order(MOQ):
1
Payment:
T/T, L/C
Shipping Port:
Xiamen Port
Lead Time：
10-25 days

Inquire now

Product Detail

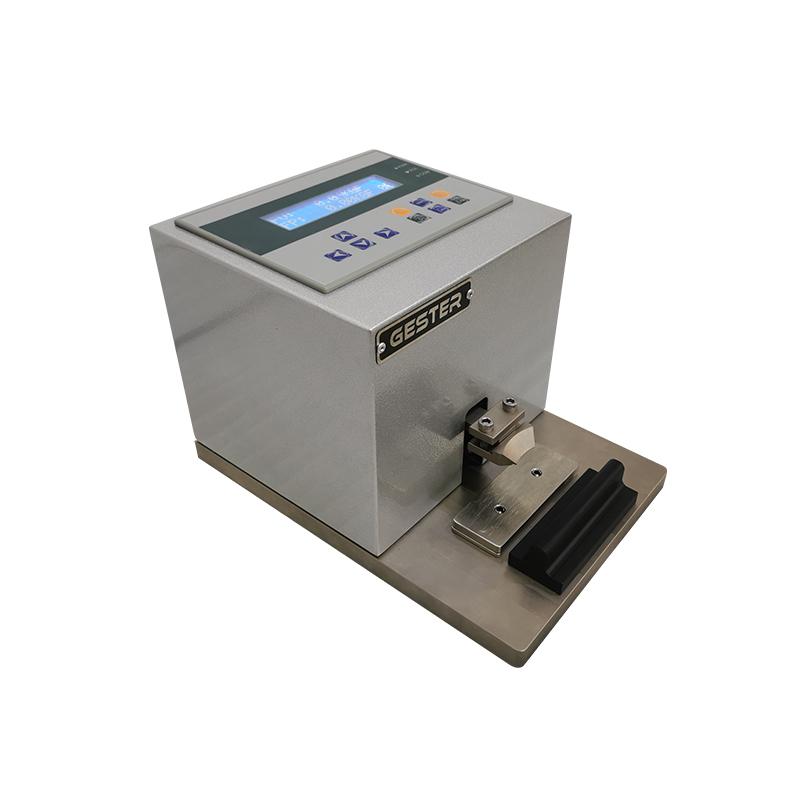

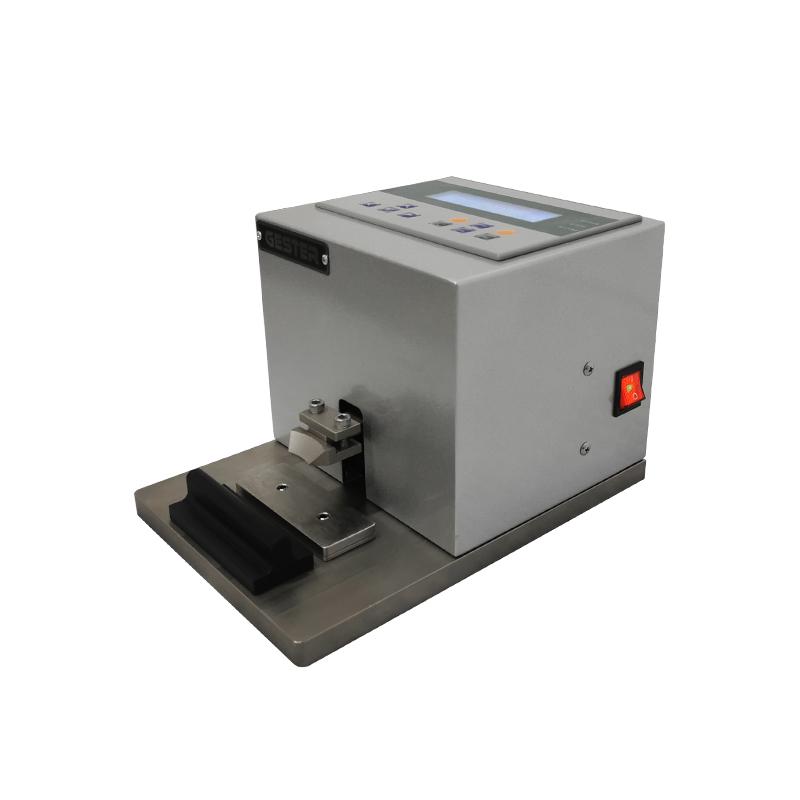

Shoe Peeling Strength Tester GT-KC41B

Product Introduction

Application:

Peeling Strength Tester is used to determine the strength of the bond between the sole and upper at the toe and heel area of the lasted margin of completed footwear. The method is mainly applicable to stuck-on or moulded-on constructions with an extended sole edge.

Shoe Peeling Strength Tester standards:

SATRA TM404, BS 5131-5.1

Dimensions

Bond strength test

Principle

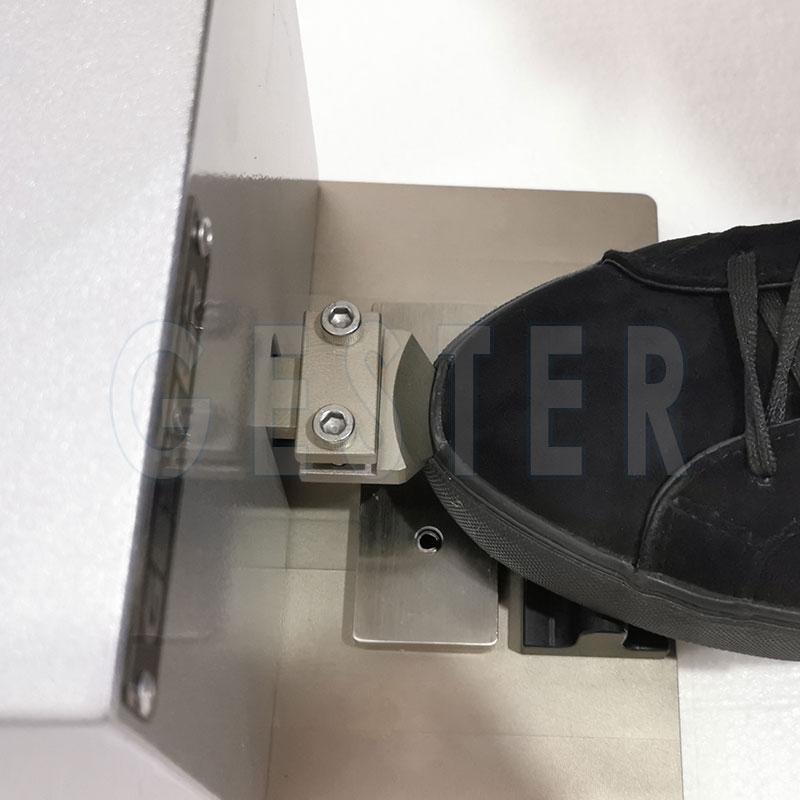

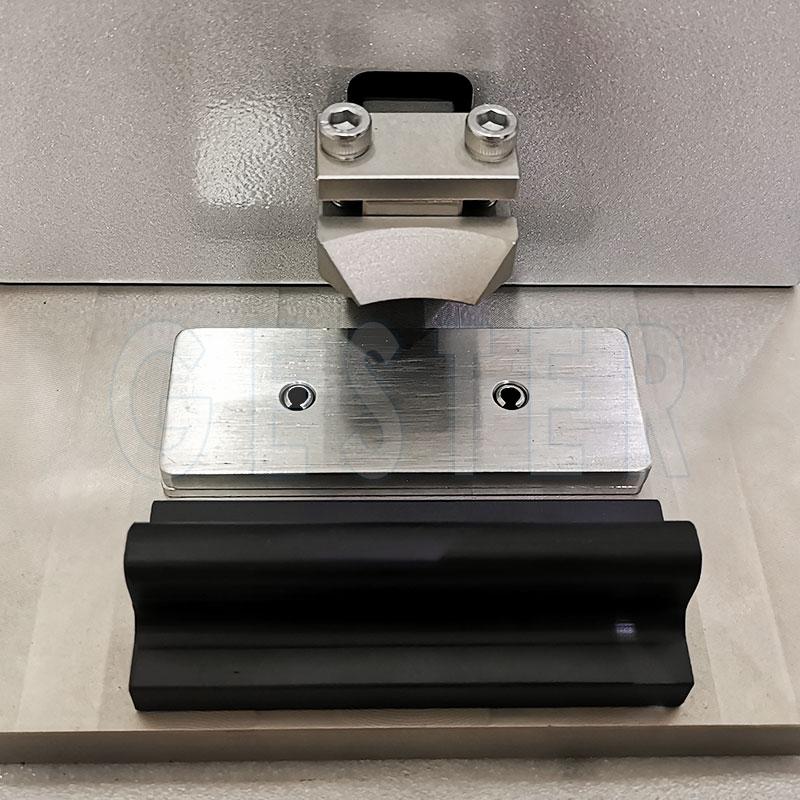

A thin rectangular steel plate with an arc shaped cut-out is connected to a force measuring system. The arc shape is positioned on top of the extended edge of the sole of the test footwear at either the toe or heel. The wearing surface of the sole is brought into contact with a fulcrum which is a fixed distance from the center of the arc. The footwear is then rotated by hand about the fulcrum and the force applied by the steel plate which is necessary to separate the upper from the sole is measured . The test may also be non-destructive by applying a set maximum force and checking for failure of the bond.

Shoe Peeling Strength Tester Key Specifications

Model	GT-KC41B
Load range	100kg
Peeling cutter arc length	22 ± 1 mm
The centre distance of the fulcrum and the arc	45mm
Display method	LCD
Power supply	1∮AC 220V 50/60HZ
Dimensions (W×D×H)	30 x 22 x20 cm
Weight	15 kg
Standards	SATRA TM404, BS 5131-5.1
Accessories	Power line
