Mattress Roller Tester is used to determine the mattress endurance for long-term repetitive loading.
Brand:
GESTERItem NO.:
GT-LA02Order(MOQ):
1Payment:
100% T/T in advanceShipping Port:
Xiamen PortLead Time：
20-30daysProduct Detail

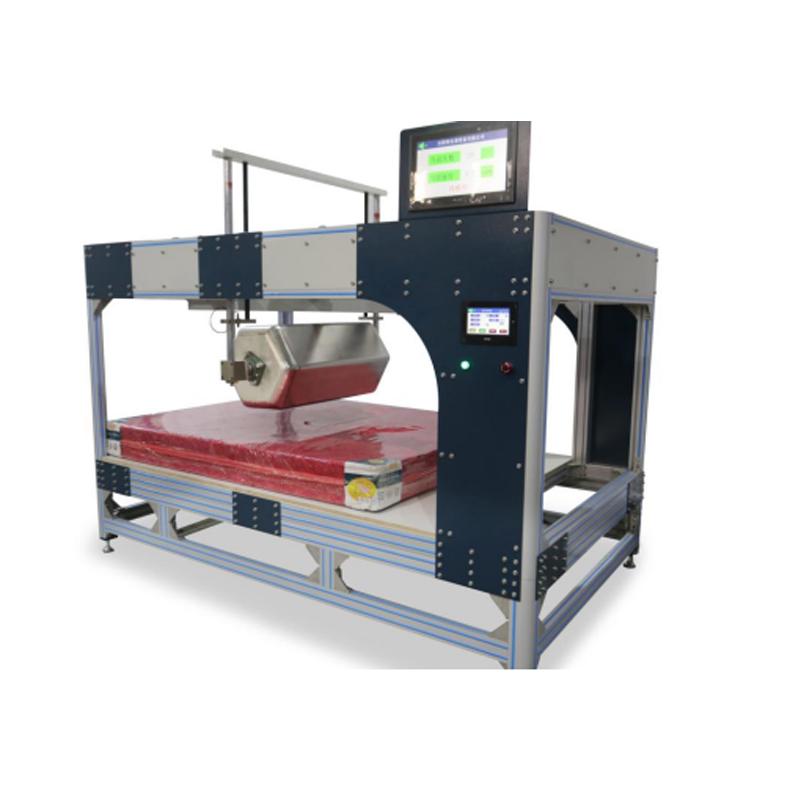

Mattress Roller Tester GT-LA02
|
Application: The Mattress Roller Tester is an instrument for testing the bearing capacity and durability of various types of mattresses for long-term repetitive loads.
Principle: It is designed by imitating people continual roll over on the mattress (positive pressure, lateral pressure, and overturn, etc.).Use cylinder or hexagon to load the testing part of mattress which is horizontally placed for repeated loading, to determine the mattress endurance for long-term repetitive loading. |
|
Model |
GT-LA02A |
GT-LA02B |
|
Cylinder Shape |
Hexagon |
Round |
|
Cylinder Length |
36±3in(915±75mm) |
1000mm |
|
Cylinder Weight |
240±10Lb(109±4.5kg) |
1400N |
|
Drum diameter (face to face) |
17±1in(430±25mm) |
300mm |
|
Controller |
PLC programmable control |
|
|
Motor |
Taiwan Delta |
|
|
Test speed |
0-20cpm （adjustable） |
|
|
Stroke |
0--1900mm |
0--1000mm |
|
Power supply |
1∮, AC 220V 50Hz |
|
|
Dimension (W×D×H) |
380 x 250 x 180 cm |
280 x 250 x 180 cm |
|
Weight |
≈1200kg |
≈900Kg |
|
Standards |
ASTM F1566 |
BS EN 1957, QB/T 1952.2 |
|
Standard accessories |
ASTM Hexagon Roller |
EN Round Roller |
|
Optional accessories |
EN Round Roller |
/ |
All kinds of Mattress can be tested on the Mattress Roller Tester
