Bally Leather Flexing Tester GT-KC10A

Bally Resistance Flexing Tester factory direct sale, fast delivery.

  • Brand:

    GESTER
  • Item NO.:

    GT-KC10A
  • Order(MOQ):

    1
  • Payment:

    T/T, L/C
  • Shipping Port:

    Xiamen Port
  • Lead Time:

    10-30 days
  • Product Detail

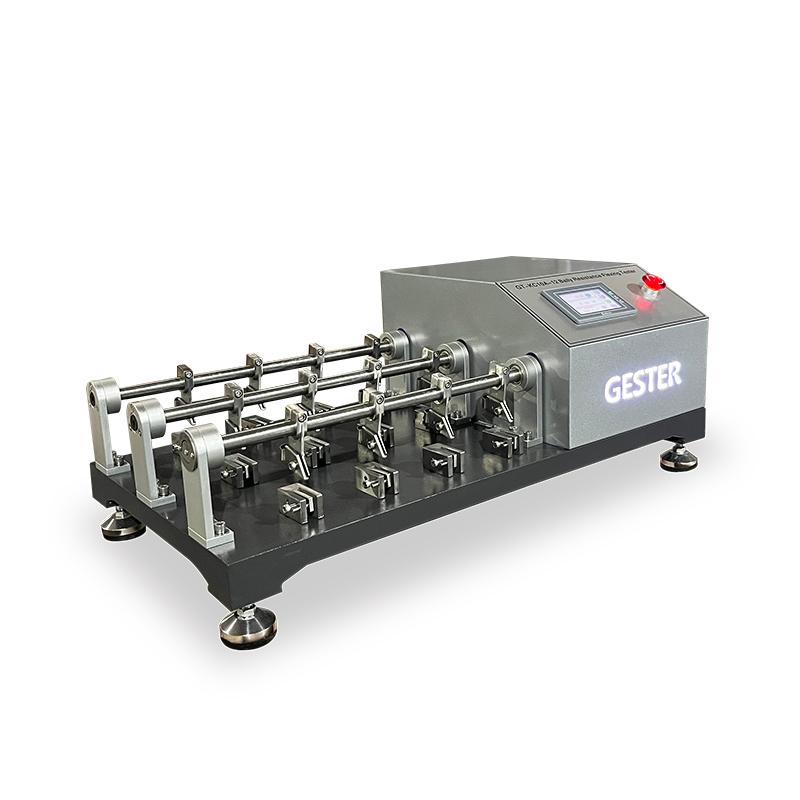

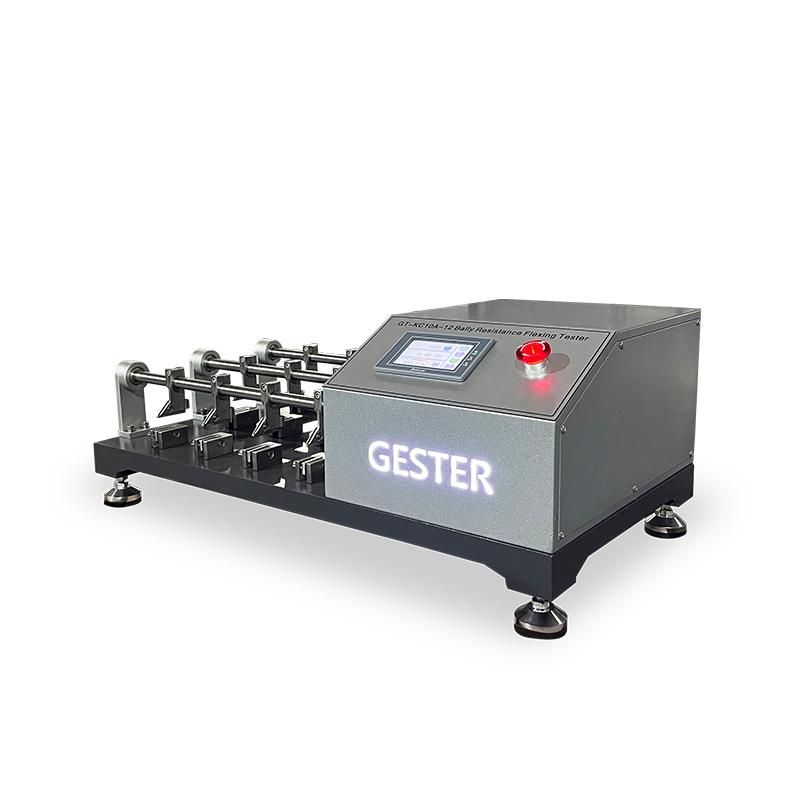

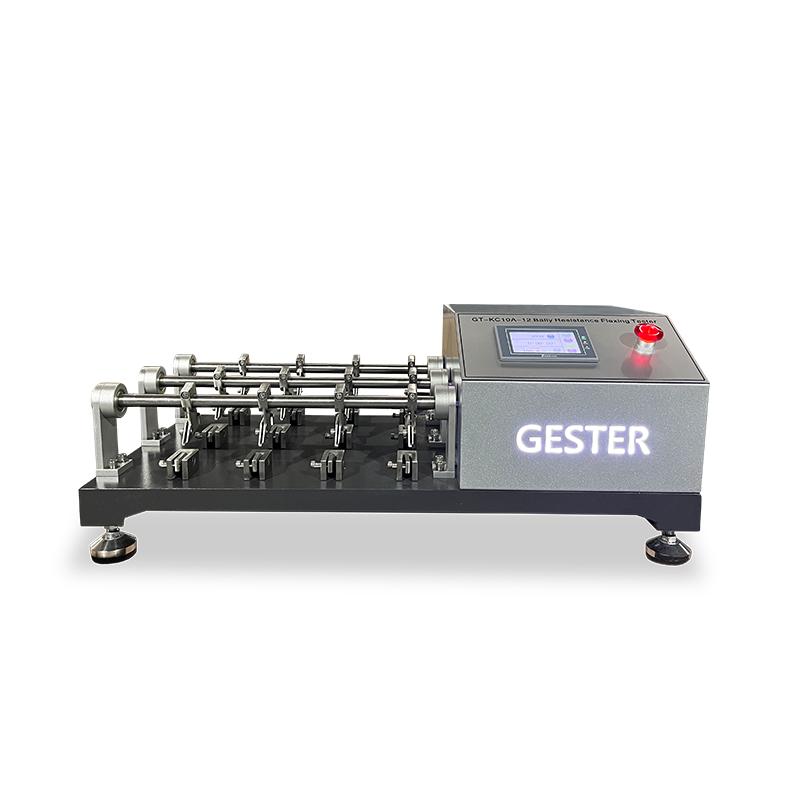

Bally Leather Flexing Tester GT-KC10A



Product Introduction


Application:

This Bally resistance flexing tester is used to determine the resistance of a material to cracking or other types of failure at flexing creases. The method is applicable to all flexible materials and in particular leathers, coated fabrics and textiles used in footwear uppers.


Bally Flexometer Dimensions

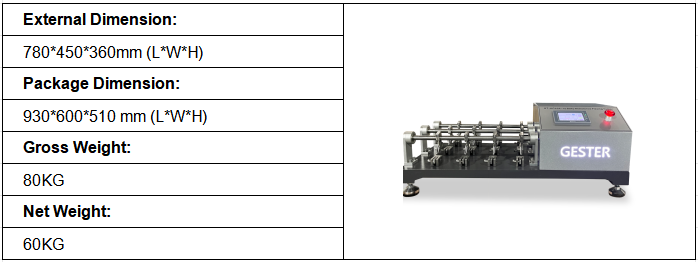

Bally Flexing Tester Dimensions


Feature

Bally leather flexing tester: test specimen is folded in half then one end is secured in a clamp. The test specimen is then turned inside out and the free end secured in a second clamp at 90 degrees to the first. The first clamp is repeatedly oscillated through a fixed angle at a defined rate causing the test specimen to flex. At set intervals the number of flexing cycles is recorded and the damage to the test specimen is visually assessed. The bally flexometer test can be carried out with wet or dry test specimens at ambient.


Bally Flexing Tester Key Specifications



Model

GT-KC10A-6

GT-KC10A-12

GT-KC10A-24

Test position

6 Sets

12 Sets

24 Sets

Type of upper grips

Please choose the suitable type as below chart of ‘Standard’.

Flexing angle

22.5° ± 0.5°

Flexing speed

100 ± 5 cycles / flexes per minute

Counter

LCD 0 - 999,999.(adjustable)

Sample size

70 ± 5 x 45 ± 5 mm

Power supply

1∮AC 220V 50/60HZ

Dimensions ( L x W x H )

700x300x340mm

780x450x360mm

1100x510x220mm

Weight

About 45kg

60kg

70kg



Standards:

SATRA TM 55; IULTCS/IUP 20-1;

ISO 17694 ; EN 13512 ;

EN344-1 section 5.13.1.3 and annex C;

EN ISO 20344 section 6.6.2.8;

GB/T20991 section 6.6.2.8;

AS/NZS 2210.2 section 6.6.2.8;

JIS-K6545; BS 3144 Clause 13

Equipped with A type of upper grips.

ISO 32100 ; DIN53351; ISO5402-1;

GE-24;ASTM D 6182

EN ISO 20344-2021 section 6.6.3

Equipped with B type of upper grips.



Accessories:

Standards Accessories

Power line

1pc

Optional Accessories

GT-KD20 Pneumatic sample cutting machine

(Cutter: 70 ± 5 x 45 ± 5 mm)

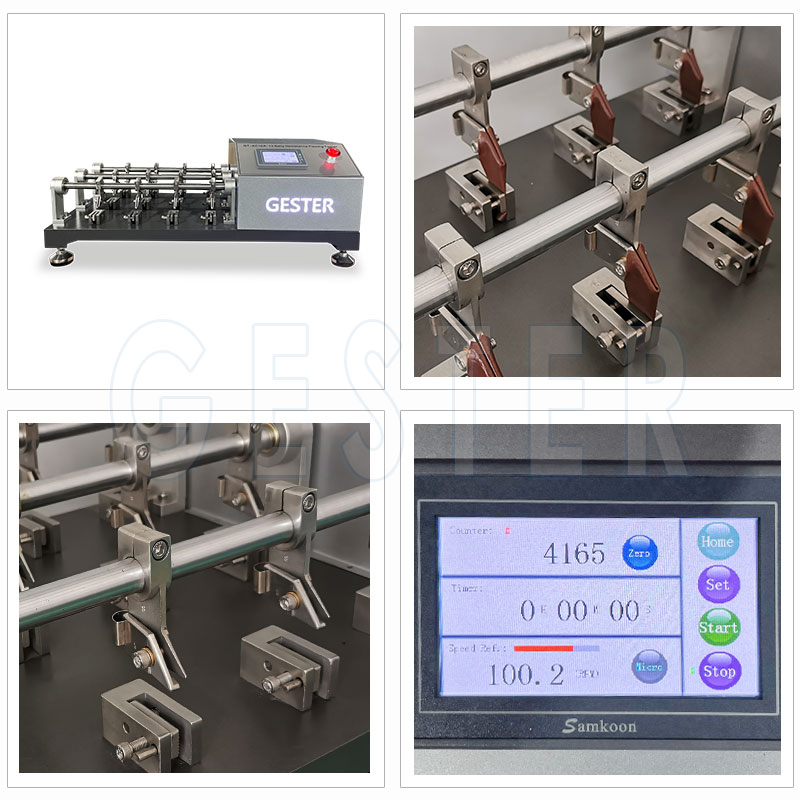

bally flex tester

Application Industry
All kinds of leather materials can be tested on the Bally Resistance Flexing Tester

bally leather flexing tester
