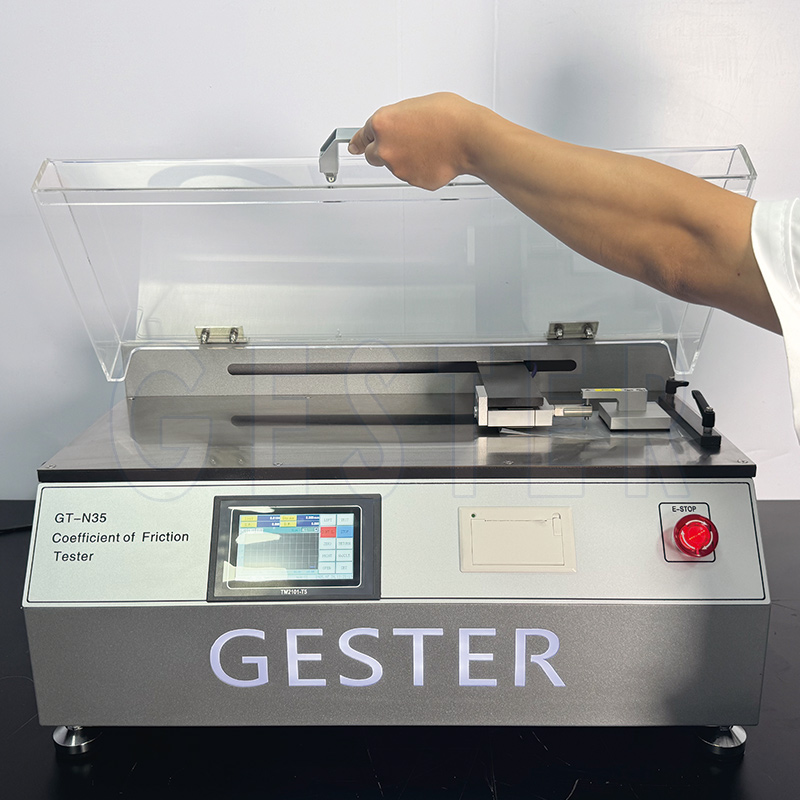

What is Coefficient of Friction Tester?

The GT-N35 Paper Friction Coefficient Tester is It is used to measure the dynamic and static coefficients of plastic film and leather, rubber, paper and cardboard, woven bags, fabric styles, metal composite belts for communication cables and optical cables, pipe belts, wood, coatings, films, wipers, shoe materials, tires and other materials when sliding.

Applicable Standards of Coefficient of Friction Tester GT-N35

The working principle determines the accuracy and stability of the friction coefficient test. The  COF tester GT-N35 adopts a mechanical and electronic combined test mode, and the operation process is easy to understand.

One of the two tested materials is laid flat on the test table, and the other is fixed on a slider with specified weight.

The two test surfaces are attached closely under certain contact pressure.

The system drives the two surfaces to produce relative sliding movement, and records the friction force generated during the process in real time.

The coefficient of friction is calculated by dividing the measured friction force by the gravity of the slider.

The performance features of the plastic film testing equipment GT-N35 are important for accurate and efficient friction coefficient testing.

Stroke Control: Slider stroke can be preset with a wide adjustment range, and dynamic & static friction coefficients are displayed digitally in real time.

Driven by precision differential motor, with smoother transmission, lower noise and better repeatability of test results.

65 million color TFT LCD screen with real-time curve display; equipped with high-speed micro printer, which supports fast and low-noise printing, easy paper roll replacement without ribbon.

Adopts slider running device and sensor fixed-point force measurement mode, which effectively avoids sensor errors caused by motion vibration.

Supports real-time digital display of dynamic and static friction coefficients; slider stroke is adjustable in a wide range, and multiple test modes are optional.

Applications of Coefficient of Friction Tester

The plastic film testing equipment GT-N35 is widely used in many industries because of its wide material adaptability and accurate test performance. Its versatility and easy operation make it suitable for you to test the friction performance of materials that need to evaluate slip resistance and smoothness.

Rubber & Tire Industry
Meets the friction test requirements of rubber, tires, wipers and other products to ensure the safety and service performance of products.

Cable & Communication Industry
Applied to test metal composite belts for communication cables and optical cables, pipe belts and other materials.

Other Materials
Also suitable for friction coefficient testing of wood, coatings and other industrial materials.

Limitations
The Paper Friction Coefficient Tester GT-N35 has obvious advantages as well as some limitations. Understanding these helps you judge its suitability for your test requirements.

Material Test Scope
It is mainly suitable for planar material friction test, and may not be applicable to special-shaped or ultra-thick materials with complex surfaces.

Environmental Impact
Test results may be affected by temperature, humidity and surface cleanliness of materials, so it needs to be used in a stable test environment.

Operation Requirements
Although the operation is simple, improper operation (such as uneven material laying, incorrect slider placement) may affect the accuracy of test data.

Maintenance Needs
Regular maintenance of the sensor, guide rail and transmission parts is required to keep the instrument in good test condition.

FAQs

Can the Paper Friction Coefficient Tester GT-N35 test both static and dynamic friction coefficients?
Yes, the Paper Friction Coefficient Tester GT-N35 can display static and dynamic friction coefficients in real time, and complete the two tests in one operation.

What materials can the Coefficient of Friction Tester GT-N35 measure?
It can measure plastic film, paper, leather, rubber, fabric, cable metal composite belt, wood, coatings, shoe materials, tires and other planar materials.

How to ensure the accuracy of test results?
Use high-precision force sensor (accuracy better than 0.5 level), adopt fixed-point force measurement mode, and carry out test in strict accordance with standard procedures to reduce errors.

Does the Coefficient of Friction Tester support multiple standard test modes?
Yes, it supports national standard, American standard and free mode, which can be selected according to your test requirements.

Is the test data output convenient?
The COF tester is equipped with a high-speed micro printer, which can print data quickly with low noise, and also has the function of test data statistics and processing.
