The battery explosion-proof box is mainly used for overcharge and overdischarge of the battery.

This nail penetration test equipment is suitable for acupuncture testing of various power battery cells/modules/battery packs and battery systems, simulating needle-like objects or other sharp objects pierced or pierced during packaging, transportation, storage, use, and disposal of household waste Situation.

The Battery Extrusion Testing Machine is suitable for simulating all kinds of lithium battery storage batteries in the transportation, use, storage and disposal of household waste, the battery is squeezed by external force, and the sharp object penetrates the situation.

This Battery Squeeze Acupuncture Testing Machine is suitable for simulating various types of lithium battery storage batteries in the transportation, use, storage and disposal of household waste, the battery is squeezed by external force, and sharp objects penetrate the situation, the test results are used to evaluate the battery safety performance.

Battery Pack Drop Testing Machine GT-I02   Product Introduction This machine is used to test the battery samples from different heights and different angles and fall freely on the falling bottom plates of different materials to test the safety performance of the battery. At the same time, this machine is also suitable for free fall test of mobile phone, walkie-talkie, electronic dictionary, building intercom, CD/MD/MP3 and other small consumer motor products and parts. According to the drop height required by the test, the free fall falls on the concrete slab or on the wooden board, and the drop height adjustable. Key Specifications   Model GT-I02B Maximum weight of test piece 5kg±100g Drop height 300~1500mm (adjustable) Height resolution 0.1mm Height display accuracy 1mm Drop height display PLC, minimum indication 1mm Control mode height setting, drop, rise and other actions are set by the PLC controller Clamping method air pressure adsorption type Lifting method electric lifting Drop mode automatic fall Drop floor material concrete board, wood board steel sheet Drop angle multi-angle (Ling, Angle, Face) Air pressure 1MPa (customer-owned gas source) Floor size 500×600×10mm Machine size 600×700×1650mm Weight 100kg Power source 1∮, 220V, 3A, 660W

Battery Burning Tester is suitable for lithium battery , battery pack, mobile phone, notebook computer and other small electronic consumer products battery fire resistance/flammability testing.

The battery pack drop tester is used to simulate the impact of drop impact on packaging boxes, single batteries, battery modules, PACK-level battery packs or systems and structural parts during use, transportation, and loading and unloading.

The battery short-circuit tester is designed according to the requirements of various battery short-circuit test standards.

This Battery Impact Testing Machine is suitable for destructive tests in which batteries and batteries (or battery packs) of different masses are hit by free-falling objects from different heights on the batteries, batteries (or battery packs), causing internal short circuits, and pass the observation period test The results are used to evaluate cells, batteries (or battery packs).

Battery Thermal Abuse Testing Equipment GT-I13   Product Introduction This Thermal Abuse Case Stress Test Chamber can be used for module case stress at high ambient temperatures as well as thermal abuse and thermal testing. After the battery (pack) is charged, test it at ambient temperature of 70±2°C for 7h, then shift it out from the oven, cool to room temperature, and the battery case required free from physical deformation that causes the internal components to be exposed. Place each fully charged cell in a natural convection or forced air oven. The oven is raised to an average heating rate of 5 ± 2 ° C to 130 ± 2 ° C. The battery is maintained at this temperature for 30min, the battery does not explode, no fire is qualified.   Key Specifications   Model GT-I13 Temperature range RT ~200 ° C Temperature display accuracy ±0.1 °C Temperature uniformity ± 2 ° C Temperature accuracy ±0.5 °C Heating rate (5±2)℃/min (linear no-load, adjustable heating rate) Temperature overshoot range (stability) After reaching 130 degrees, the temperature overshoot≤ 2°C Inner box size 500×600×500 mm (width×height×depth) Outer box size 700×1150×1500 mm (width×height×deep) (Including pressure relief vent and smoke exhaust part) Temperature Controller Touch screen programmable temperature controller for total temperature rise time control, segmented control program, easy to operate Controller At the right of equipment Inner box material SUS#304 first grade stainless steel Power 380V, 50~60HZ Dimension (mainframe) 66×53×168cm Dimension (controller) 55×35×100cm Outer box material cold rolled steel plate paint treatment Insulation material high efficiency compression glass wool Observation window double tempered glass observation window, size 250*250*5 mm Safety protection device no fuse switch, over temperature protection switch, porcelain fuse, first over temperature alarm Exhaust flue Located above the equipment and with a gas collecting device, the flue gas generated by the explosion can be discharged through an external pipe. Explosion-proof vent design Located above of the equipment, surrounded sealed by high-temperature sealing strips, and the insulation layer is made of soft aluminum foil and glass wool. The size of the explosion-proof vent is 500*500mm, that is the top of the whole box is explosion-proof vent After the pressure relief is completed, the pressure relief vent is automatically .return to original position Control formation Automatically turn on the time meter after the temperature reaches the set temperature, cut off the heating power after the time arrives, buzzer prompt Temperature cycle Blower cycle, using high power fan Explosion-proof door lock Stainless steel explosion-proof door lock, and added chain lock for secondary protection Weight 210kg Power supply AC220V±10%, 50Hz,,16A Power 4KW

Electromagnetic vibration tester completely according to the standard of battery related testing design, simulation under the certain condition of the vibration test of battery, the battery or battery pack is fixed on the vibration table, according to the prescribed frequency, acceleration and displacement mode along the battery sample vibration of three mutually perpendicular direction measured battery should not leak, don't lose heart, not broken, no fire and explosion.

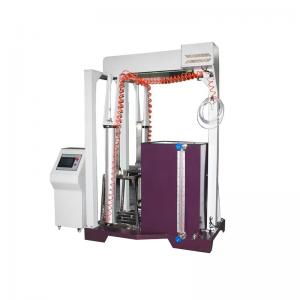

sea water immersion test machine is mainly used to connect the battery to the wiring harness of the whole vehicle in the actual vehicle assembly state, and then place it in 3.5% NaCl (mass fraction, simulating the composition of seawater at room temperature) in the actual vehicle assembly direction for 2H.
