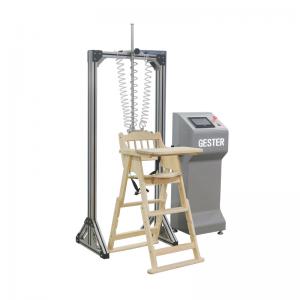

High Chair Seating Impact Testing Equipment GT-MJ31 Product Introduction Application: This tester applies to all types of high chairs, with 2 functions of chair seating impact and seating durability test. The purpose of this test is to evaluate the ability of the chair to withstand heavy and abusive impact forces on the seat and evaluate the ability of chairs to withstand fatigue stresses and wear caused by downward vertical force(s) on the seat. Standards: EN14988-2017 Section 5.17, 8.8.5 Feature 1.The main structure of the machine is made of aluminum, beautiful and easy to maintain. 2. Using PLC touch screen control, operation more convenient. 3. In addition, the machine loading device using electric control movements, more extensive test space.   Key Specification   Model GT-MJ31 Impactor Diameter 150mm Impactor Weight 23kg Cylinder Stroke 0~300mm Beam Stroke 900~1350mm Test Speed 10~30r/min Test Times 0~999999times, settable Control PLC touch screen control Dimensions(W×D×H) 150×150×200cm Weight ≈300Kg Air Source ≧7kgf/cm^2 stable air source Power 1∮ AC 220V 50Hz 5A   Accessories: 23kg Impactor    1pc

The High Chair testing machine is specially designed for testing the distance between the backrest and the horizontal member of children’s high chair.

The High Chair testing machine is specially designed for testing the impact strength of backrest and handrail.
