Water-Cooled Light Weather Fastness Tester:
Benefits, Applications, and Buying Guide
When it comes to material weatherability and light fastness evaluation, one key piece of testing equipment you cannot overlook is the water cooled light fastness tester. An inappropriate tester may lead to unstable test data, low efficiency, or failure to meet standard requirements. But a reliable water-cooled light weather fastness tester supports accurate sunlight simulation, complies with multiple global standards, and helps assess material durability effectively.

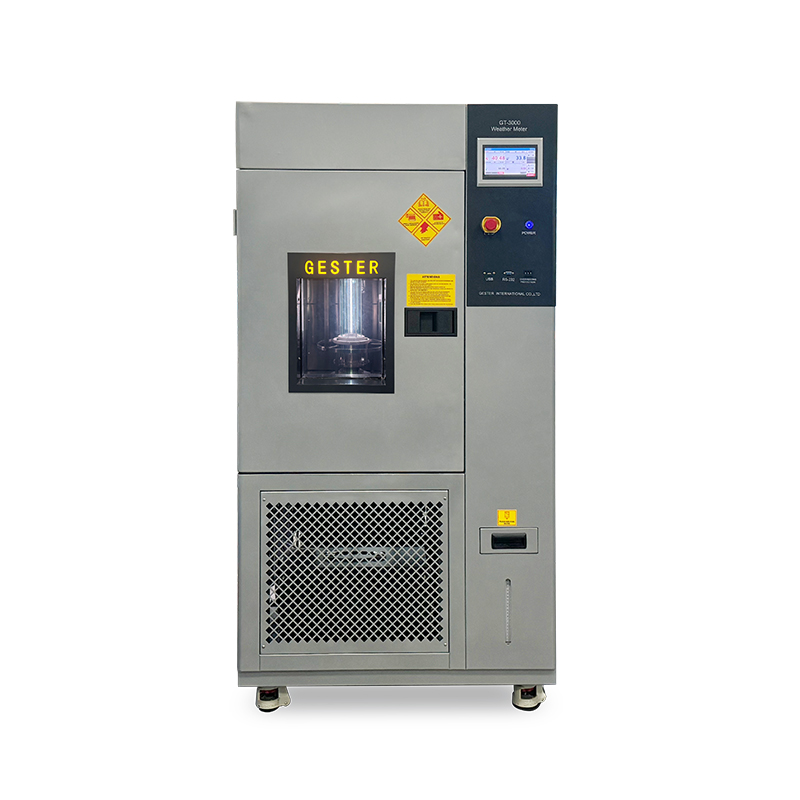

What is the Water-cooled Xenon Arc Tester
Water-cooled Xenon Arc Tester through simulate illumination, exposed to the rain, mist spraying, alternating light and dark, temperature and humidity climates conditions to test material products’ color fading, aging, transmittance, peeling, hardness, softness and other performance changes.
This Xenon Weatherometer is widely applied to test rubber, plastic, coating, petrochemical products, automotive parts, textiles, and many other non-metallic materials.
Key Features of Water-Cooled Light Weather Fastness Tester GT-3000
-
Xenon Weathering Test Chamber: Presetting various specifications, or customized programs, meet diverse range of standards, including AATCC, ISO, BS, JIS etc.
-
6000W water-cooled xenon arc lamp system, accurately simulate sunlight spectrum. Irradiance auto- compensates system, control irradiance, temperature, and humidity timely through a closed loop.
-
Xenon Arc Test Chambers: Irradiation control, light irradiance sensor monitor, digital setting, automatic compensating system, stepless irradiation regulation.
-
Accurate chamber temperature control, irradiation temperature, and heater raise the temperature, air conditioning refrigeration system.
-
Ultrasonic humidification system makes spray water even and low noise. Saturated steam humidifying, industrial refrigerating machine dehumidifying, and close loop control the humidity.
-
Large amount of testing specimen, be able to hold as 3 times of specimen quantity as air-cooled machine in a test.
-
Custom program capability and storage for additional user-defined tests.
-
De-ionized water system to ensure purity of cooling water and spray water.
Applicable Test Standards
Textiles
GB/T 8430, GB/T 14576, GB/T 8427, ISO 105-B02/B04/B06, AATCC 169, M&S C09/C09A, JIS L0843
Paints & Coatings
GB/T 1865, ASTM D6695, ISO 11341, NES M0135, ISO 16474-2
Rubber & Plastics
GB/T 12831, GB/T 9344, GB/T 16422.1, ASTM D2565, ISO 4892
Non-metallic Materials
AATCC TM16, ASTM G26, ASTM D4459, ASTM G155, GB/T 2423.24, GB/T 15102, GB/T 15104
Automotive
SAE J2527, SAE J1885, SAE J2212, SAE J1960, SAE J2412, ISO 3917, PV 1303, PV 3929, PV 3930, DVM 0067-MA, HES D6601, TSL 0601G, GMW3414, EDS-T-7415, D47 1431
Water-Cooled Vs Air-Cooled Xenon Arc Tester
Feature
|
Water-Cooled
|
Air-Cooled
|
Lamp Power
|
Up to 6000W
|
Typically ≤1500W
|
Spectrum Stability
|
Excellent, minimal drift
|
Prone to shift with heat
|
Temperature Control
|
Superior, closed-loop
|
Limited by fan cooling
|
Sample Capacity
|
3× higher per cycle
|
Lower, smaller chamber
|
Continuous Runtime
|
Long‑term stable
|
Shorter intervals
|
Maintenance
|
Lower, longer lamp life
|
Higher, more frequent checks
|
Buying Guide: How to Choose the Right Water-cooled Xenon Arc Tester
When selecting a xenon Weatherometer, focus on these factors:
Confirm it supports your required norms (GB, ISO, AATCC, SAE, etc.).
-
Prioritize Sample Throughput
Choose water-cooled for high capacity; air-cooled only for low-volume basic testing.
Look for Irradiation control, light irradiance sensor monitor, digital setting, automatic compensating system, stepless irradiation regulation.
-
Check Lamp & Cooling System
Does it accurately simulate the solar spectrum? Find out whether a water-cooled xenon arc lamp system meets your requirements.
Does it allow users to programme test parameters themselves and does it have a storage function capable of saving additional user-defined test plans?
Please select a supplier that can provide calibration services, operational training, spare parts, and a responsive after-sales service.
Conclusion
A high-performance water cooled light fastness tester is essential for accurate, compliant material weatherability and light fastness testing. The ASTM G155 Testing Machine GT-3000 combines stable water-cooled xenon lamp technology, precise closed-loop control, large specimen capacity, and wide standard compatibility to support reliable testing across many industries.
