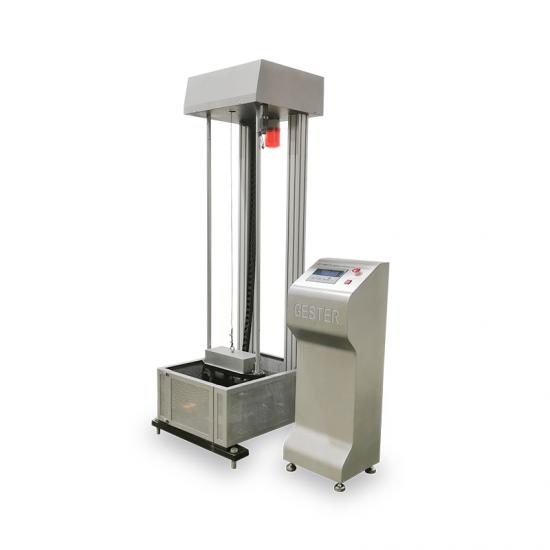

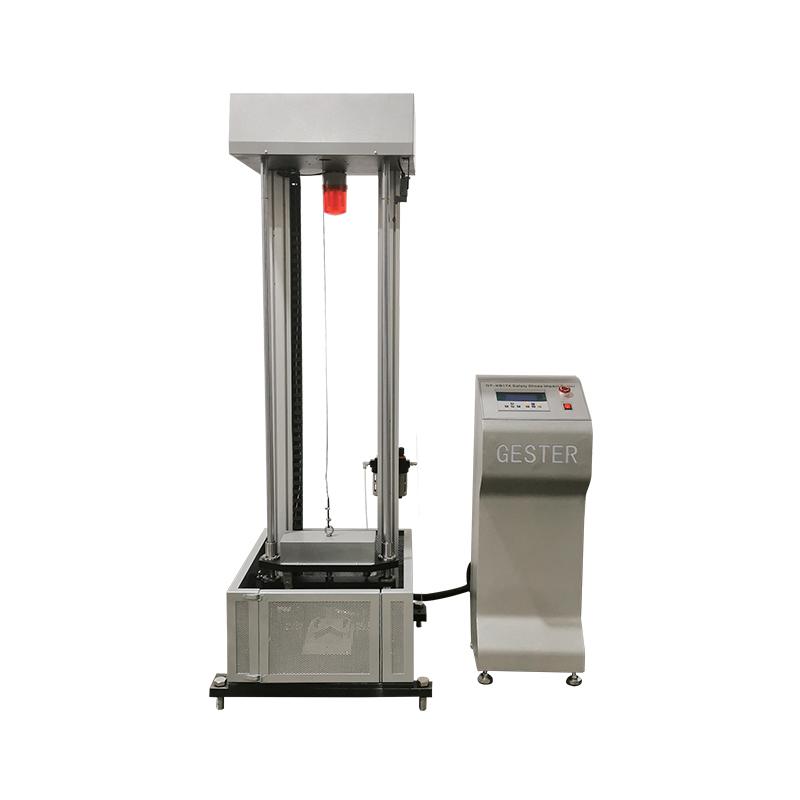

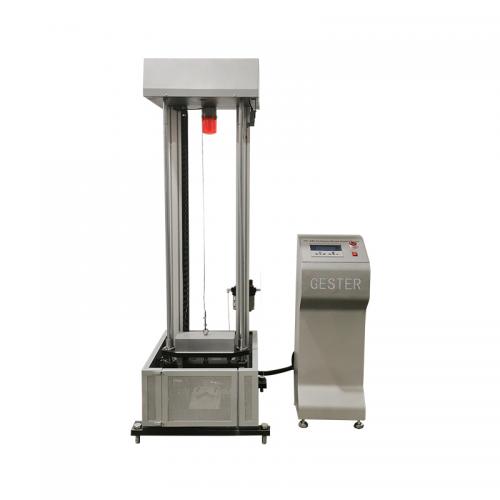

Safety Shoes Impact Tester GT-KB17

GESTER is an professional PPE testing equipment manufacturer specializing in high-energy protective impact systems. The GT-KB17 Safety Shoes Impact Tester serves as an industry-standard laboratory solution designed to accurately measure the impact resistance of protective toe caps and metatarsal steel components. It bridges the technical testing requirements between EN ISO and ASTM methodologies within a single, modular hardware architecture.

Brand:
GESTER
Item NO.:
GT-KB17
Order(MOQ):
1
Payment:
T/T, L/C
Lead Time：
10-30 days

Inquire now

Product Detail

Safety Shoes Impact Tester GT-KB17 | Professional PPE Testing Equipment Manufacturers

Product Introduction

Application:
Safety Shoes Impact Tester is used for impact resistance of safety shoes. Impact steel head of safety shoes by 100J or 200J kinetic energy, and inspect it subsidence to check it quality.

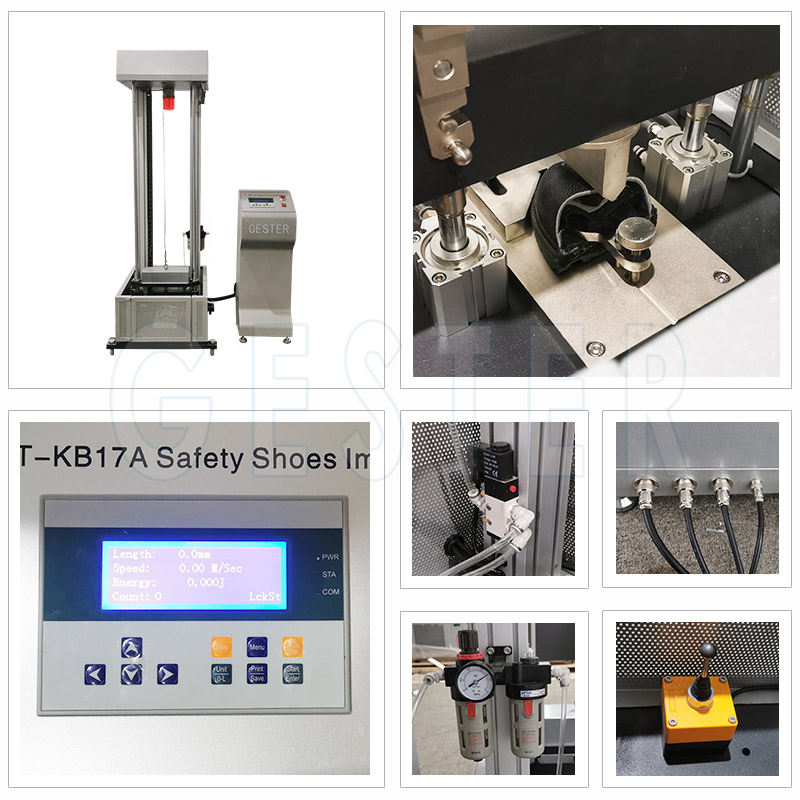

Feature

1. Safety Shoes Impact Tester equip with protection fence, to avoid hazardous objects splash.

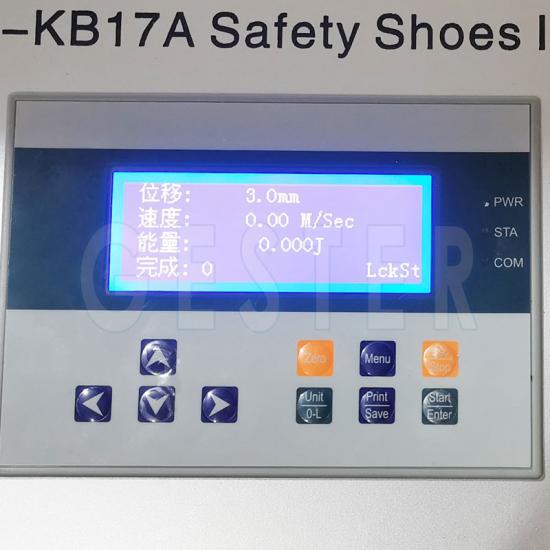

2. Control box separate with impactor, to protect personnel security.
3. Safety Footwear Impact Tester equip with electromagnet absorption device and automatically grab impact head to set height.
4.Safety Footwear Impact Resistance Test Equipment equip with two buffer cylinder, to avoid second impact.

Key Specifications

Model	GT-KB17A	GT-KB17B		GT-KB17C
Drop height range	0- 1200mm
Impact energy	200±2 J or 100±2 J	100±2 J		101.7±2 J
Impact hammer	Wedge, Length 75mm, Angle 90°	Cylinder, Diameter 25.4mm
Impact surface	Corner radius R3 mm	Spherical radius R25.4mm		Length 152.4±3.2 mm
Impact hammer mass	20±0.2 kg	22.7±0.23kg
Power supply	1∮AC220V 50HZ 5A
Dimensions(L x W x H)	100 x 70 x 200cm
Weight	About 280kg
Standards	EN ISO 20344, AS/NZS 2210.2 GB/T 20991 BS EN-344-1		CSA-Z195-14 ANSI-Z41 ASTM F2412 ASTM F2413 NOM-113-STPS	CSA-Z195 ASTM F2412 ASTM F2413 NOM-113-STPS

Accessories:

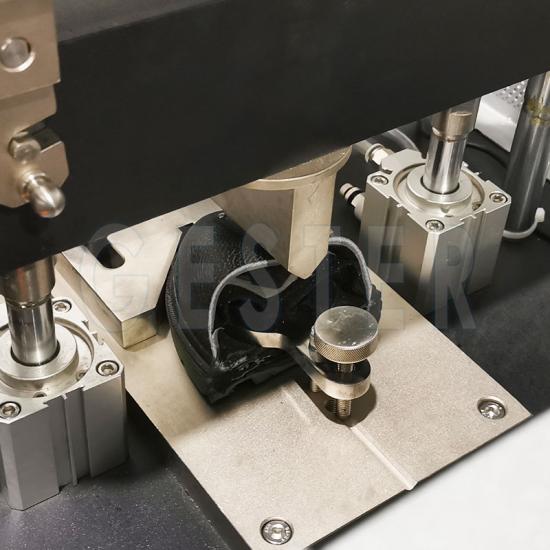

Standard accessories	1set	Toecap clamp device
	1pc	Power line
Option accessories	Air compressor
	Metatarsal protective test clamp device for EN ISO 20344-2020 Section 5.20
	Test clamp device for EN 12568-2010 Section 5.2.2, ISO 22568-1-2019 Section 5.3.1.1

FAQ

Q1: Which global safety standards does GESTER's GT-KB17 comply with?

A: As a dedicated PPE testing equipment manufacturer, our GT-KB17 compliance matrix covers EN ISO 20344 (Europe), ASTM F2412/F2413-2024 (Americas), CSA-Z195 (Canada), and AS/NZS 2210.2 (Oceania/Asia). Each unit comes with factory-calibrated testing metrics.

Q2: What are the main differences between the GT-KB17A, GT-KB17B, and GT-KB17C models?

A: The configuration varies based on your target footwear testing standards:

GT-KB17A: Equipped with a 20 kg wedge hammer (100J/200J) for EN ISO, GB, and AS/NZS.

GT-KB17B: Configured with a dedicated 100J impact hammer for specific regional test profiles.

GT-KB17C: Features a 22.7 kg cylindrical striker tailored directly for American ASTM F2412 and Canadian CSA-Z195 criteria.

Q3: How does GESTER guarantee operator safety during high-energy impact testing?

A: The equipment features an enclosed metal safety fence, a remote digital control panel, and an automated electromagnetic anti-rebound mechanism that locks the striker immediately after the first impact.

Safety Shoes Impact Tester GT-KB17

Application Industry

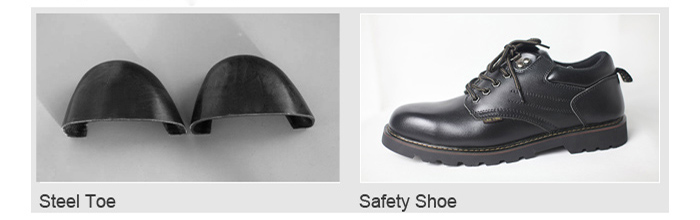

All the material blow can be tested on the Shoes Impact Tester

Shoes Impact Tester
