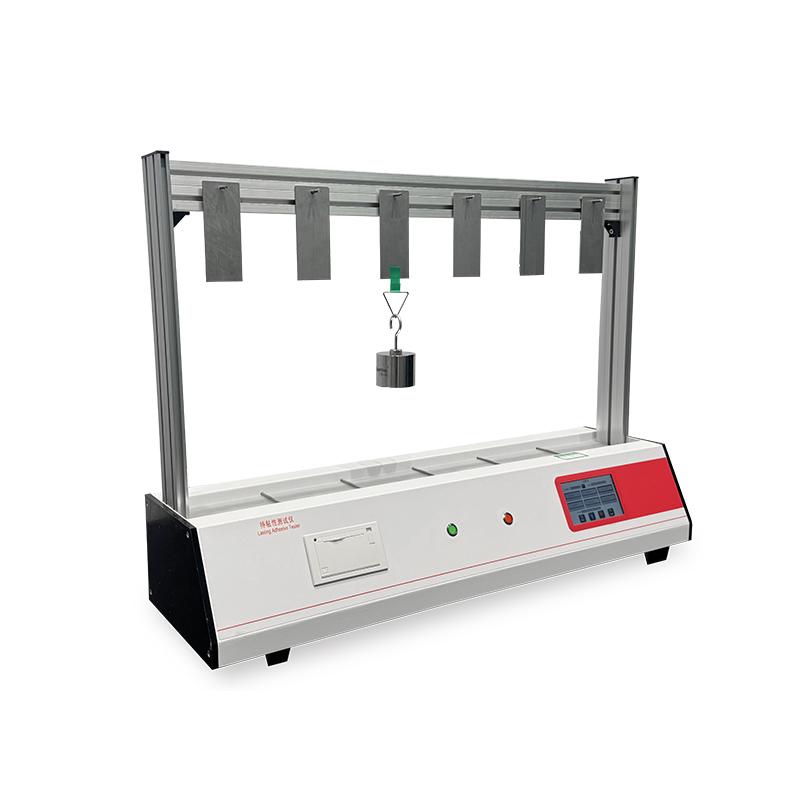

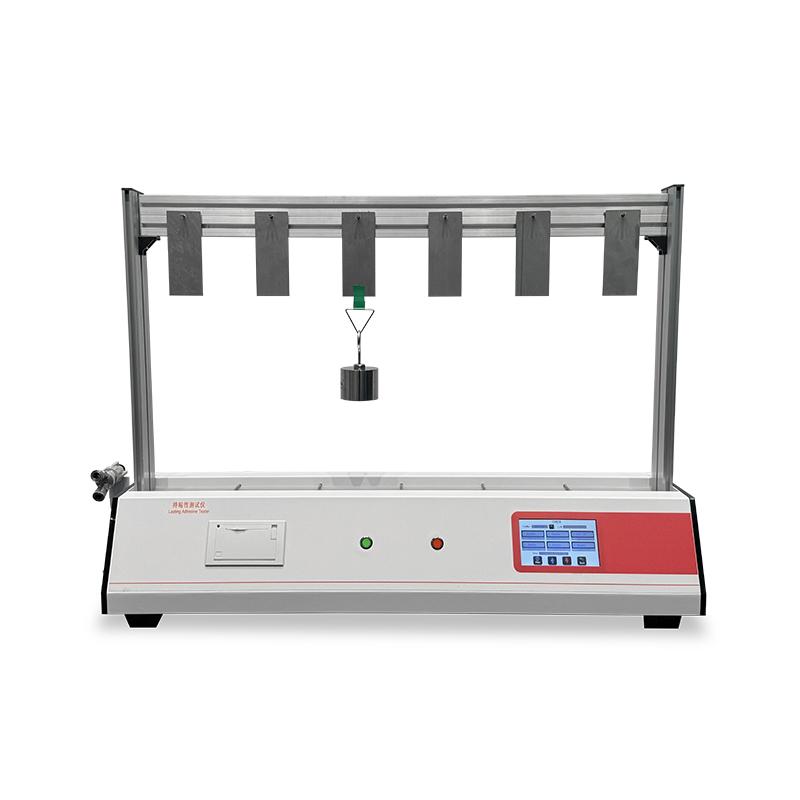

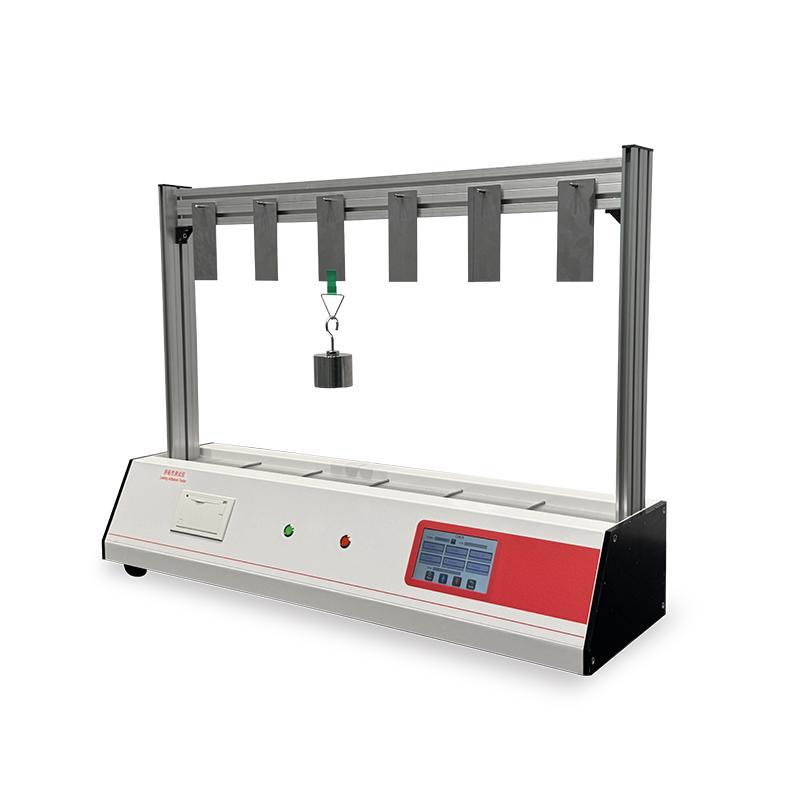

Lasting Adhesive Tester GT-N58

Product Introduction

Application:

Lasting adhesive tester used for test holding adhesive force for Self-adhesive labels, pressure-sensitive adhesive tapes, protective films, plasters, waterproof membranes and so on.

Standards:

ASTM D3654, JISZ0237, GB/T23260, GB/T 4851

Test principle:

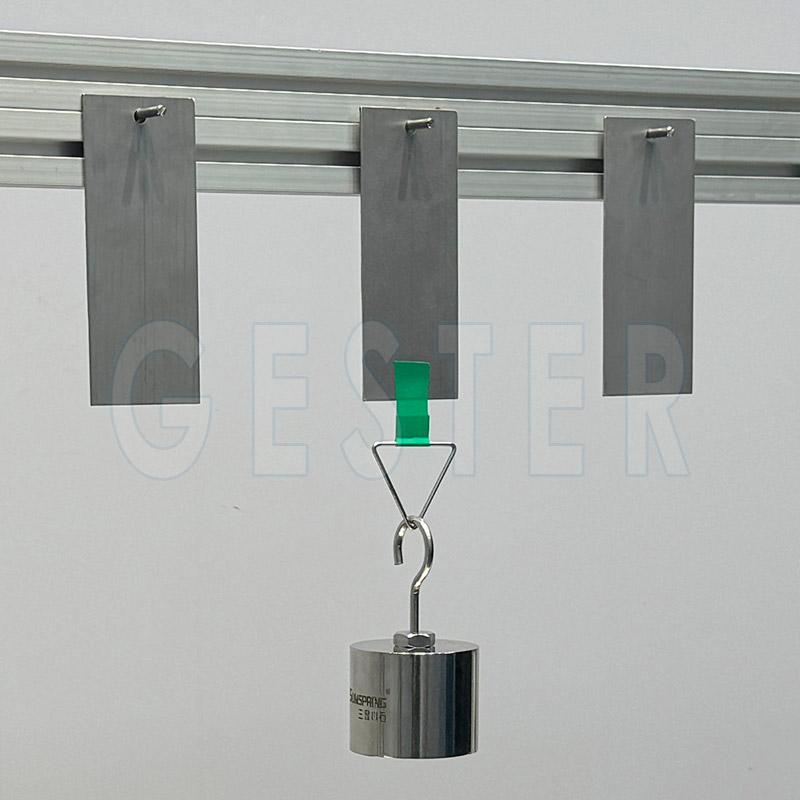

The sample test plates affixed vertically hanging in the test stand, test the displacement value of sample after a certain time by hanging weight on the bottom; or test adhesive tape pulled off resistance performance by the time sample completely break away.

Technical Feature

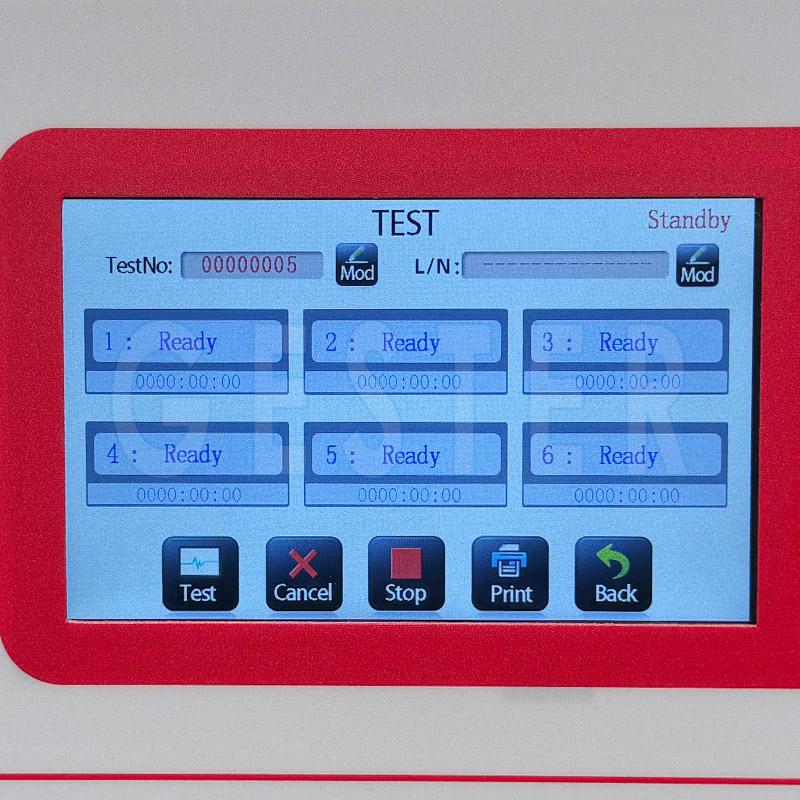

LCD display can clearly store and query the test results.
User hierarchical authority management function to ensure the integrity and standardization of data.
Micro printer, can print complete test information. Such as serial number, batch number, operator, test results, test time and so on.
The test board and test weight designed in strict accordance with the standard ensure the accuracy of the test data.
Six test station can test multiple sets items at the same time.
Automatic timing, ending reminders and other functions to further ensure the high accuracy of the test results.
System procedures with ISP online upgrade function, can provide personalized services.

Lasting Adhesive Tester Key Specifications

Model	GT-N58
Standard Roller	2000g±50 g
Weight	1000g
Test Broad	125 (L) mm×50 (B) mm×2 (D) mm
Timing Range	0～199.99Hours
Positions	6
Dimension	620mm×260mm×420mm
Weight	11kg
Environment Temperature	15℃-50℃
Relative Humidity	No more than 80%, no dewdrop
Power Supply	220V, 50Hz

Accessories

Standard Accessories	1 set	Standard Pressure Roller
	1 set	Weights: 1000g
	1 set	Test Broad: 125×50×2 (L×B×D, mm)
Optional Accessories	1 set	Weights: 500g
	1 set	Weights: 200g
	1 set	Test Broad: 200×50×2 (L×B×D, mm)
	1 set	Test Broad: 125×125×2 (L×B×D, mm)
