Dual Column Computerized UTM Universal Tensile Testing Machine GT-UA01

  • Brand:

    GESTER
  • Item NO.:

    GT-UA01
  • Order(MOQ):

    1
  • Payment:

    T/T, L/C
  • Lead Time:

    30 days
  • Product Detail

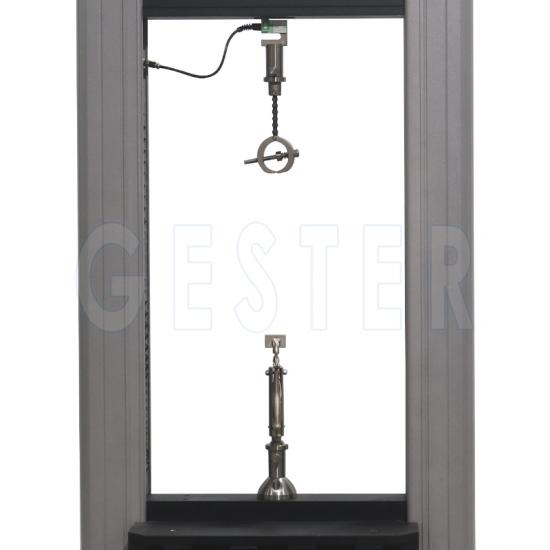

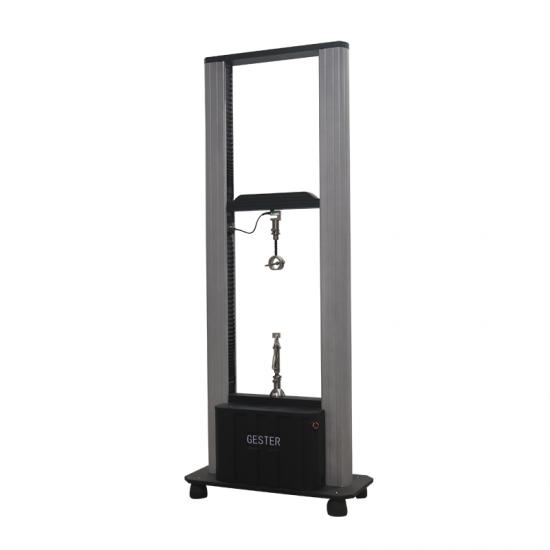

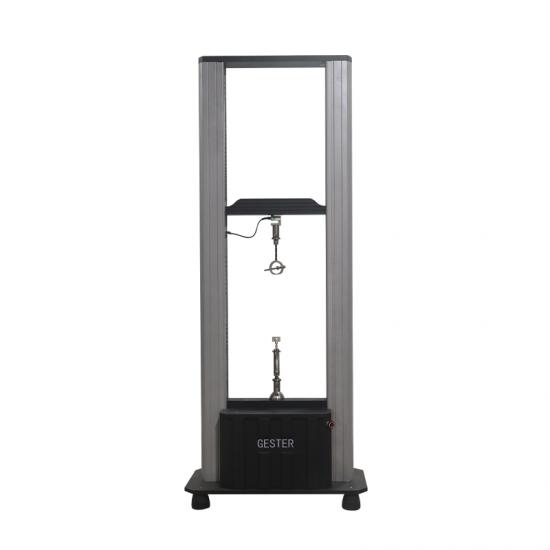

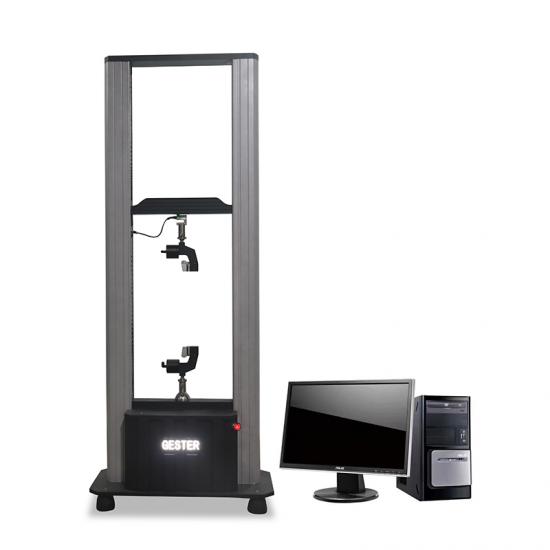

Dual Column Computerized UTM Universal Tensile Testing Machine GT-UA01



Product Introduction

Application:

This universal testing machine is designed for conduct tensile, compression, bending, shearing, bonding strength, peeling, tearing and other tests for rubber, plastic, leather, metal, nylon line, fabric, paper, aviation, packaging, construction, petrifaction, electrician, vehicle and other materials.


Feature
  1. The power system: servo motor and servo drivers and worm gear and rod reducer and ball screw.
  2. Control system: adopting Pulse Command control method, it will be more accuracy and easy to control.
  3. The Utm Machine speed control range: 0.001-1000 - mm/min.
  4. The intermediate plate adjustment is both fast coarse and slow fine-tuning.
  5. It will return to original site and save automatically testing.
  6. Data transmission mode: RS232 transmission.
  7. Utm Universal Testing Machine display mode: computer screen display.
  8. This universal material testing machine can realize constant speed, positioning, constant power, constant stroke control mode and multi-level control mode which can meet the test requirements of the ordinary.
  9. Testing space: test width is 400 mm (standard)
  10. Al plate walking space: 1400 mm (excluding fixture, according to the customer requirements ).
  11. The entire displacement: the encoder is 1800 P/R, it can improve 4 times accuracy
  12. Using the LINE DRIVE encoder strong anti-interference ability displacement resolution 0.001 mm.
  13. Computerized Universal Testing Machine Safety device: overload emergency stop device, up and down stroke limit device, leakage automatic blackout system, automatic break point stop function.

tensile testing machine manufacturers


Universal Testing Machine Key Specifications


Model

GT-UA01

Max. Capacity

10N, 20N, 50N, 100N, 200N, 500N, 1KN, 2KN, 5KN,10KN,20KN

Display

Computer display mode

Force Resolution

1/100,000

Force Accuracy

≤+/-0.5%

Stroke Resolution

0.001 mm

Stroke Range

1400mm

Test Speed

0.001-1000mm/min (option), can set by computer, with up & down fast adjustment button of grips

Force Unit Switch

Kgf, N, Ibf, g, ton, Mpa

Stop Mode

Overload stop, emergency stop button, specimen damage automatic stop, upper & lower limit set automatic stop, automatic reset function

Machine Drive

Servo motor drive, synchronous wheel and precision ball screw drive

Power

400W

Dimensions

110cm x 70cm x 240cm(WxDxH)

Weight

370kg

Power Supply

220V 50/60HZ 10A


Accessories:

Standards accessories

1set

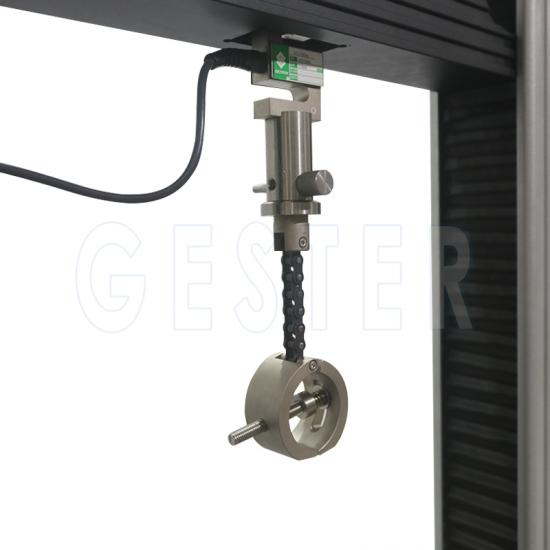

Manual grips

1pc

Load cell

1pc

English operation software

1pc

Cable connect with PC

Option accessories

Optional

Desk top computer

Optional

Other grips

Application Industry

All kinds of materials can be tested on the Dual Column Computerized UTM Universal Tensile Testing Machine GT-UA01

Tensile Testing Machine for Footwear
