Temperature and Humidity Climatic Test Chamber GT-C52

Product Introduction of temperature and humidity test chamber

Application of climatic test chamber:

Temperature Humidity Test Chamber is for conditioning of samples prior to testing. It also can be used for a variety of materials of high - low temperature alternating test. The test temperature, humidity, time can be programmed. Provides conditions of temperature form -40degree to +150degree and of humidity form 20% to 98%.

Standards of climatic test chamber:
CNS, ISO, JIS, ASTM, DIN, BS, IEC, NACE, UL,MIL

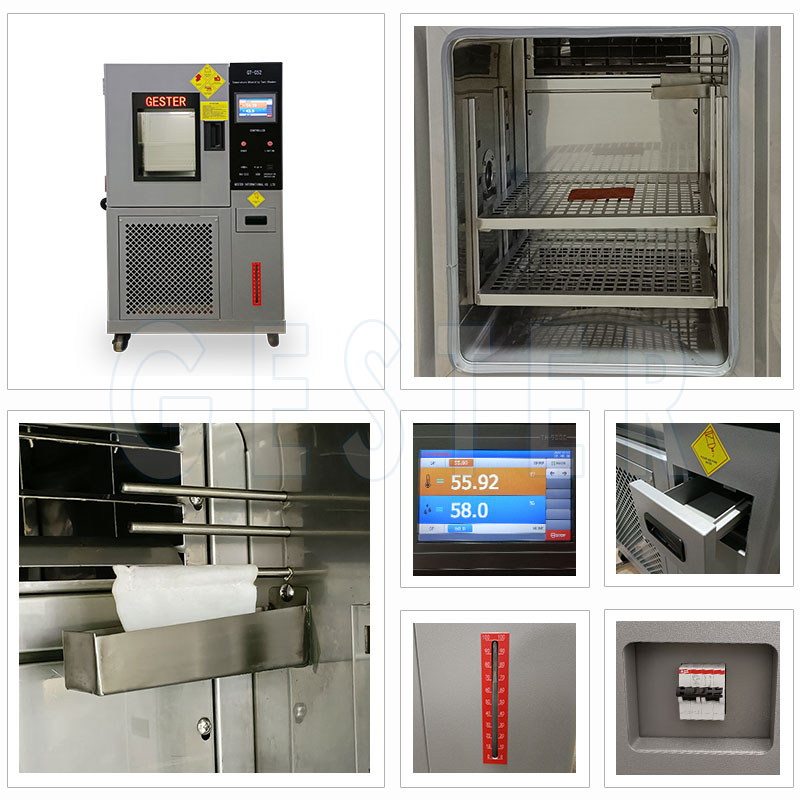

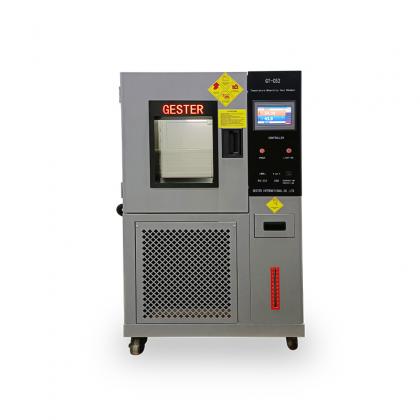

picture of temperature humidity chamber

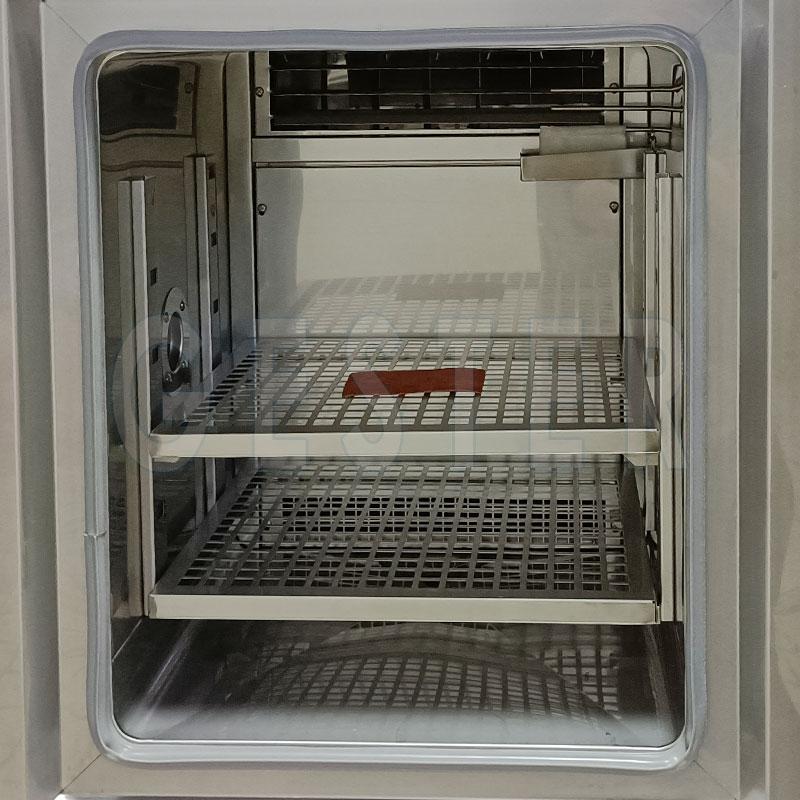

constant temperature and humidity chamber

Feature

Temperature and Humidity Climatic Test Chamber: High quality appearance, Matte Line processing on the surface, and embedded and non-counteractive handle, easy operation, safe and reliable.

Temperature Humidity Chamber Test Space Options

Capacity	80L	150L	225L	408L	612L	1000L
Inside dimension WxHxD(cm)	40x40x50	50x50x60	75x60x50	80x60x85	80x85x90	100x100x100
Outside dimension WxHxD(cm)	91x100x139	100x110x149	125x120x139	130x122x182	130x153x190	150x167x189
Temperature range	-20～150℃, -40～150℃, -60～150℃ optional (can be custom-made)

Key Specifications of constant temperature and humidity chamber

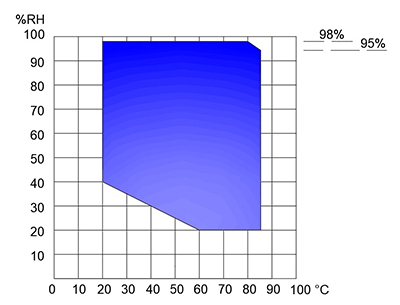

Humidity range	20%～98%, can be set.

Rate of temperature increasing	Room temperature～150℃	About 45 minutes(non-linear no-load, about 3.5℃/minute
	Room temperature～-20℃	About 45 minutes(non-linear no-load, about 1.2℃/minute)
Machine precision	Control accuracy (test precision)	Temperature	+/-0.5℃
		Humidity	+/-1%RH
	Distribution accuracy (uniformity)	Temperature	+/-1.0℃
		Humidity	+/-2%RH
Environment temperature	5℃-28℃
Environmentrelative humidity	≤85%RH
Power voltage	220V AC(+/-10%), protect ground wire, ground resistance≤4Ω.
Frequency	50+/-0.5Hz
Power switch	Air-break switch(40A, knife switch or outlet is prohibited to use.)
Power	4.5KW
Humidification water	Resistivity(≥500MΩ)
Requirement of ambient air quality	Do not contain high concentration dust and flammable gas, without strong electromagnetic radiation source nearby.
Power supply	AC1￠3W 380V 50/60HZ, voltage change allowed value: ±10% of fixed voltage.
Max loading capacity	8KVA
Max operating current	30A
