Furniture Universal Testing Machine GT-LA10

Furniture Universal Testing Machine is used for testing the mechanical properties of tables , desks ,beds and chairs. Can perform the horizontal static load ,vertical static load,  impact test and durability test.

  • Brand:

    GESTER
  • Item NO.:

    GT-LA10
  • Order(MOQ):

    1
  • Shipping Port:

    Xiamen Port
  • Lead Time:

    7-30 days
  • Product Detail

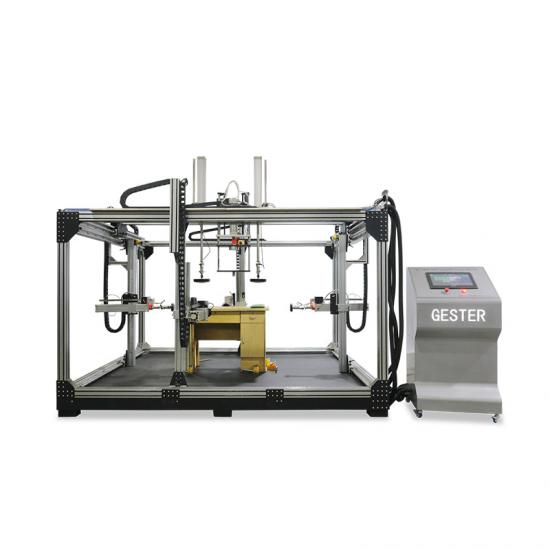

Furniture Universal Testing Machine GT-LA10


Product Introduction

Application:

This tester is used for testing the mechanical properties of tables , desks ,beds. Can perform the horizontal static load ,vertical static load,  impact test and durability test.


Feature:

1. The Furniture Universal Testing Machine adopts frame structure design. The frame is made of high quality industrial aluminum, beautiful and generous.
2. Up to 7 sets of cylinders installed, one set on each side, three on top frame. All cylinders can be adjusted up and down, frontward and backward to cover all mounting surfaces. The seven sets of cylinders can execute joint or independent operation.
3. The bottom fixed block is free to adjust the position to accommodate different specifications of the sample.
4. PC controller to control the actions of the instrument; the operation is intuitive and simple.
5. Furniture Universal Testing Machine Using the precision pressure regulating valve to adjust the pressure to change the loading force value; high precision force sensor sense the force value immediately; each load group adjusts the control individually; the loading force is stable and reliable.
6. Removable loading pad, can easily change the different loading pad to meet the different test requirements.


Standards:

Tables & Desks

&

Storage Units

EN1730-2012 Section 6.2, 6.3, 6.4,6.5, 6.6, 7.2, 7.3 ,

BS EN 15372-2016 Test1, Test2,Test3,Test5, Test6,Test8,Test10,

AS NZS 4610.3-1999 Annex B,D,E,G,N,P,R

AS NZS 4442-1997 Annex A,B,H,J

EN527-3, EN581-3,

GB/T 10357.1,

BIFMA X5.5 - 2014,

BIFMA X5.6 - 2010,

BIFMA X5.9 - 2012,

Chairs

EN 1728-2012 Section 6.4, 6.5, 6.7, 6.12, 6.15, 6.16, 6.17, 6.24,7.3, 7.4,7.9, 8.2, 8.4.1,8.5 , 8.86.25, 6.26 optional accessories)

EN581-2-2015 (corresponding with EN1728-2012),

EN1335-3 -2009 Section 7.2.1, 7.2.2, 7.3.1

EN 1729-2-2012 Section 5.3.2, 5.3.3, 5.3.5, 5.3.6, 5.3.75.3.8 need the optional accessories)

EN 16139-2013 (corresponding with EN1728-2012)

ISO 7173-1989 Section 7.1, 7.2, 7.3, 7.5, 7.6, 7.7, 7.8, 7.10 (7.11,7.12 need the optional accessories)

BS5459-2-2000 Section A5.1 5.2 (A5.3, A7.4 need the optional accessories

BS5459-2-2000 Section  A5.2,

BIFMA X5.1 - 2017 Section 7, 10.3

QB/T 2280-2007 Section 6.6.4, 6.6.3, 6.6.9 , 6.6.13.1

GB/T 10357.3 -2013 Section 4.3, 4.4,4.7,4.8,4.10,4.11,6.9 (4.13,4.14 need the optional accessories)

Bed

EN 1725 Section 7.3, 7.4, 7.5, 7.6 ,7.7

EN 747-2 Section 5.4,5.5,5.6.1,5.7,5.8


Key Specifications



Model

GT-LA10

Frame space

2.5×2.5×2.2m (Other configurations available on application)

Control method

PC control

Load cell

3KN

Power supply

1Φ, AC 220V

Accessories:

Standard Accessories

4 sets

Horizontal loading device

3 sets

Vertical loading device

1 set

GT-LB01-6 Seat Impactor Device

1 set(350Lbs)

GT-LB01-11 BIFMA Bag Type Impactor device

8 pcs

GT-LB01-5 Local loading pad

2pcs

GT-LB01-3 Smaller seat loading pad

1pc

GT-LB01-4 Back loading pad

1pc

GT-LB01-2A Seat loading pad

4pcs

Stoppers

1pc

Stationary fixture

Optional accessories

1pc

GT-LB01-1A Loading point template

1set

GT-LB01-7 Impact hammer

1pc

GT-LA12 Bunk Bed Test Mass

4 pcs

75mm×75mm Loading pad

1set

100kg Disc superimposed weight

1pc

Φ300MM Loading pad

1pc

Φ400MM Loading pad

1set

GT-MA12B Air Compressor

Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related Products

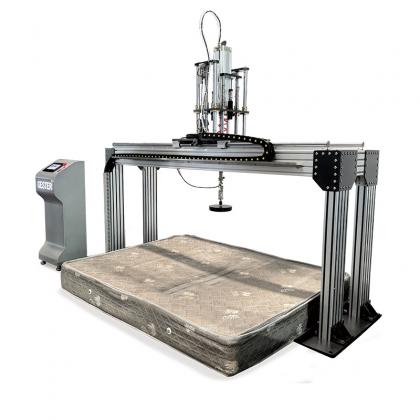

Bed And Mattress Comprehensive Performance Tester
