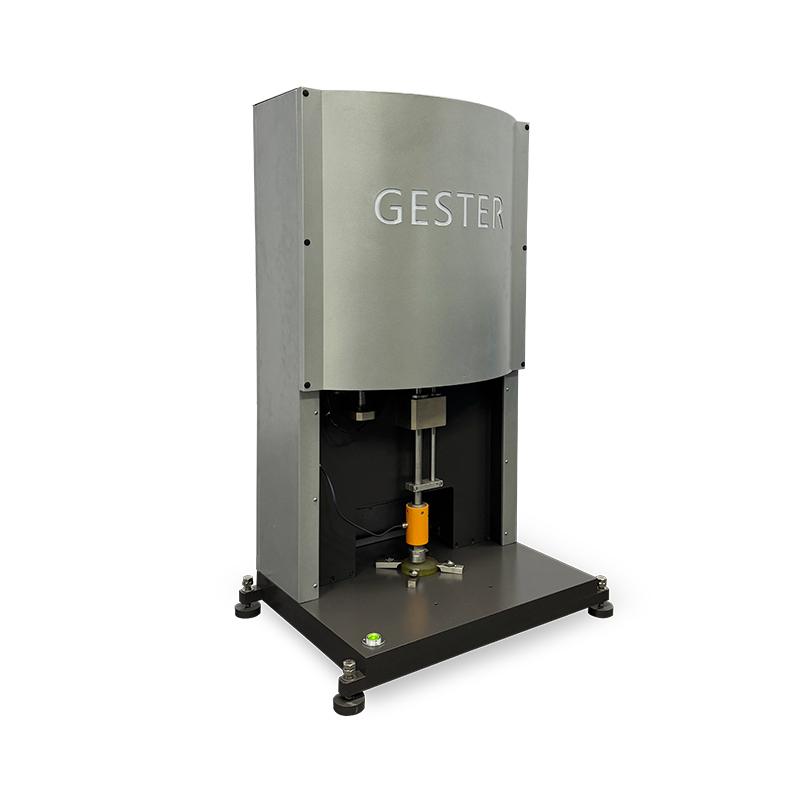

Athletic Footwear Shock Attenuating Testing Instrument GT-KA04B

GT-KA04B athletic footwear shock attenuating testing instrument designed strictly to comply with the SATRA TM142 standard, this specialized footwear testing machine utilizes an 8.5kg free-fall drop hammer and a fixed 50mm fall height to precisely analyze the cushioning limits, impact absorption, and transient force-displacement relationships of athletic outsoles, midsoles, and shoe material systems.
GESTER provides factory-direct wholesale pricing, and robust localized technical support to international footwear brands, supply chain manufacturers, and global third-party testing laboratories.

Brand:
GESTER
Item NO.:
GT-KA04B
Order(MOQ):
1
Lead Time：
15-30 days

Inquire now

Product Detail

Product Introduction

Application:

This Shoe Testing Machine is used to measure the shock attenuating characteristics and rapid rate force-displacement relationships, of materials systems employed in the midsole of athletic footwear intended for use in normal running movements.

Standards:

SATRA TM142

Key Specifications

Model	GT-KA04B
Control method	Computer control
Hammer weight	8.5±0.01 kg

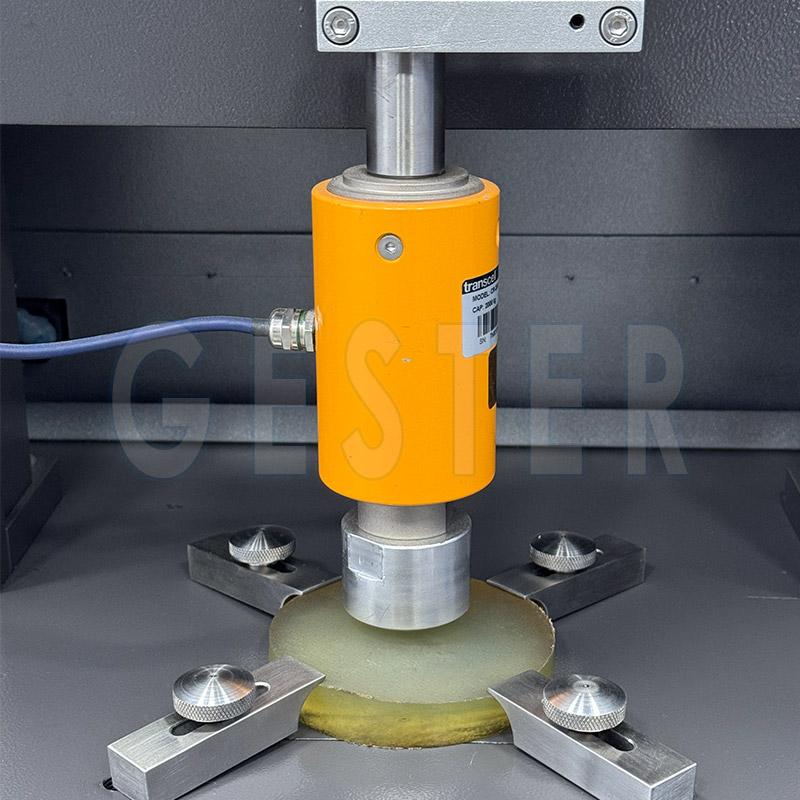

Impact head	Lower surface Radius of curvature R=37.5±0.5mm, dia 45 mm
Drop height	50 mm
Impact method	Free fall
Dimension (W×D×H)	80×58×130cm
Weight	About 350kg

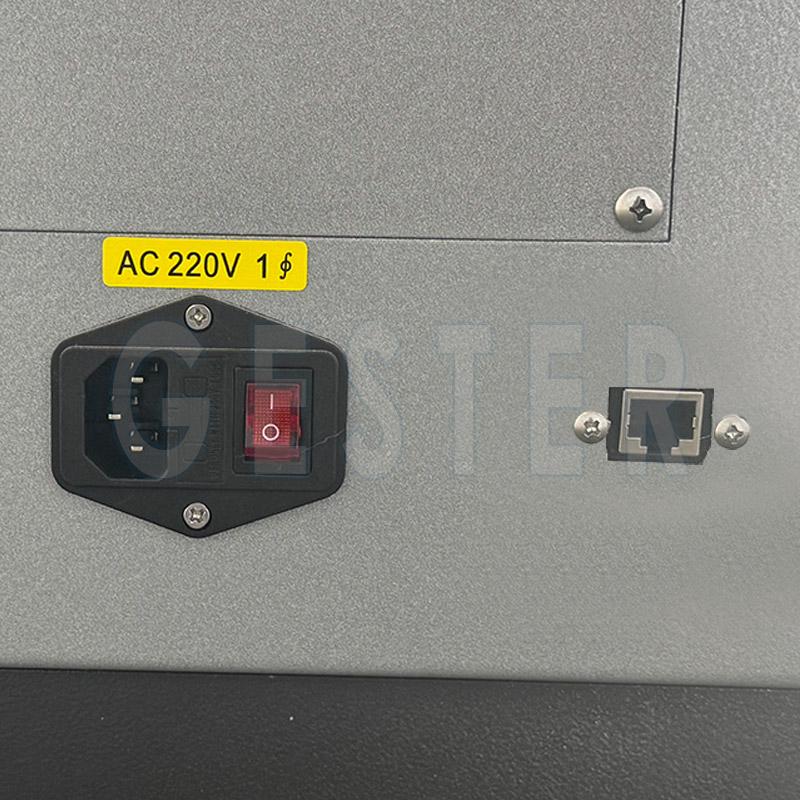

Power	1∮, AC220V

Athletic Footwear Shock Attenuating Testing Instrument FAQ

Q1: Are you the direct manufacturer of the GT-KA04B shock tester?

A: Yes. GESTER is an ISO 9001-certified factory manufacturer and supplier with 25+ years of footwear testing expertise. Buying factory-direct eliminates middlemen markups and ensures direct access to original spare parts and official warranties.

Q2: What are the key technical specifications of the GT-KA04B?

A: It features a 8.5kg drop hammer, a 50mm fall height, and an advanced computer control system that records real-time force-displacement relationships during rapid free-fall impacts.

Q3: How do you handle international after-sales service and technical support?

A: We have an established network of global authorized distributors and local service partners worldwide. We provide comprehensive after-sales support, including a 72-hour rapid response, remote software diagnostics, and online engineering training.

Q4: Can you provide complete laboratory setups for comprehensive shoe material tester?

A: Yes. As a leading footwear testing equipment manufacturers supplier, we provide one-stop laboratory tester solutions. Beyond shock attenuation testing, we supply full catalogs of testers for shoe flexing, abrasion resistance, and tensile properties to equip your entire QA laboratory.

Need Compliance with ASTM F1614, ASTM-F1976 Standards?
If your research lab or quality control center focuses on North American footwear brands or requires a 1000Hz continuous mass-drop system under the ASTM F1614 standard, our alternative configuration is fully optimized for your workflow. View the [GESTER GT-KA04A Athletic Footwear Shock Attenuating Tester] to check out its high-precision 10KN load cell data analysis and automated software options.
