Brand:
GESTERItem NO.:
GT-N19COrder(MOQ):
1Lead Time：
15-30 daysProduct Detail

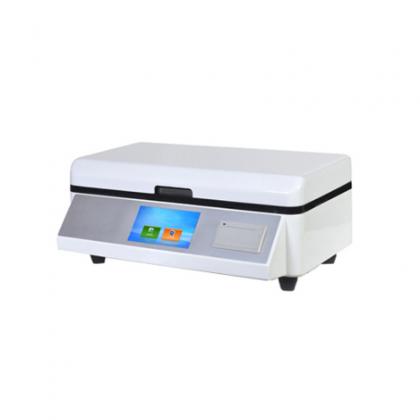

Automatic Paper Thickness Testing Equipment GT-N19C
Application:
This machine is used to measure the thickness of paper and other sheet materials. It is applicable to all kinds of paper.
Standards:
ISO 3034, ISO 12625-3
Feature:
|
Model |
GT-N19C |
|
Display |
Touch screen display |
|
Measuring range |
0-5mm |
|
Resolution |
0.001mm |
|
Indication error |
±0.0025mm or±0.5％ |
|
Indication volatility |
≤0.0025mmor≤0.5％ |
|
Parallelism between measure surfaces |
≤0.002mm |
|
Contact Area |
1000 ± 20mm² |
|
Contact Pressure |
20 ± 0.5 kpa and 2 ± 0.1 kpa |
|
Measuring Head Descending Speed |
0.5～8 mm/s, can be adjustable |
|
Printer |
Thermal printer |
|
Dimension |
410×225×450 (L×W×H, mm) |
|
Weight |
About 25kg |
