(Gakushin) Color Fastness to Rubbing Tester GT-D06

Gakushin Abrasion Tester GT-D06 Rubbing Fastness Tester Manufacturers

Application:

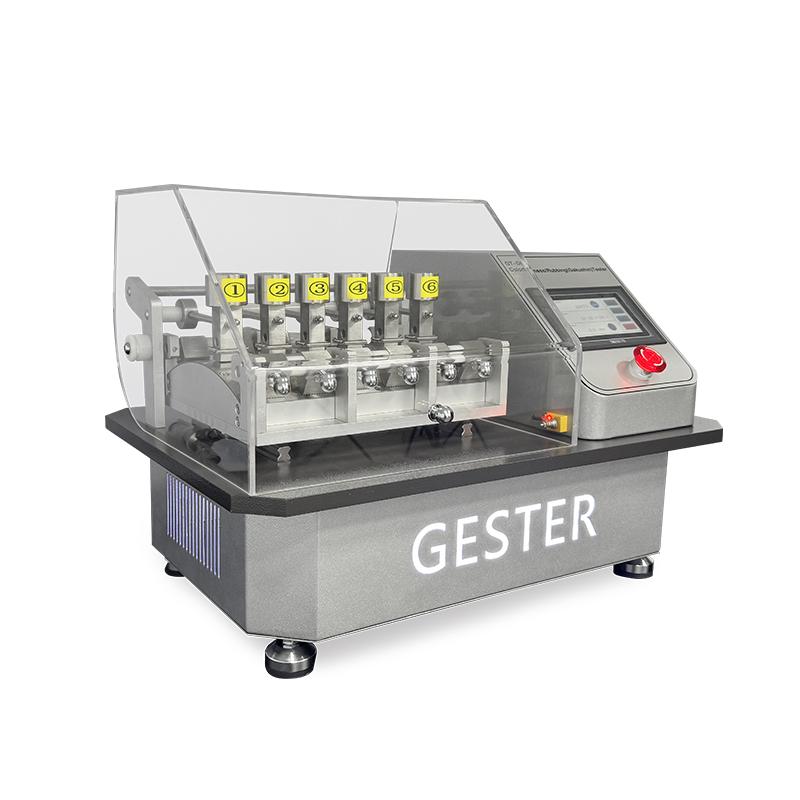

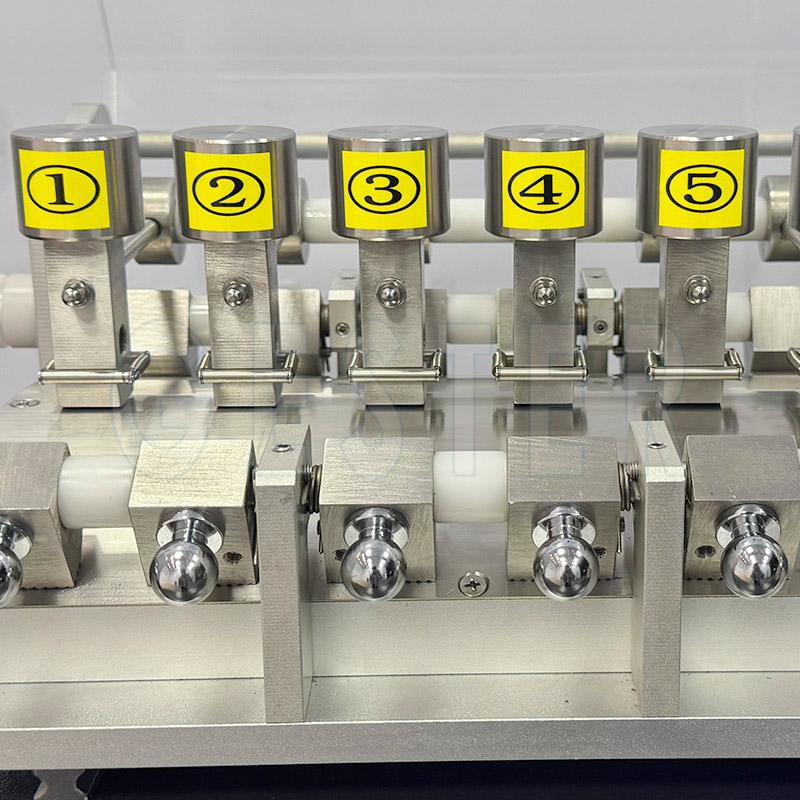

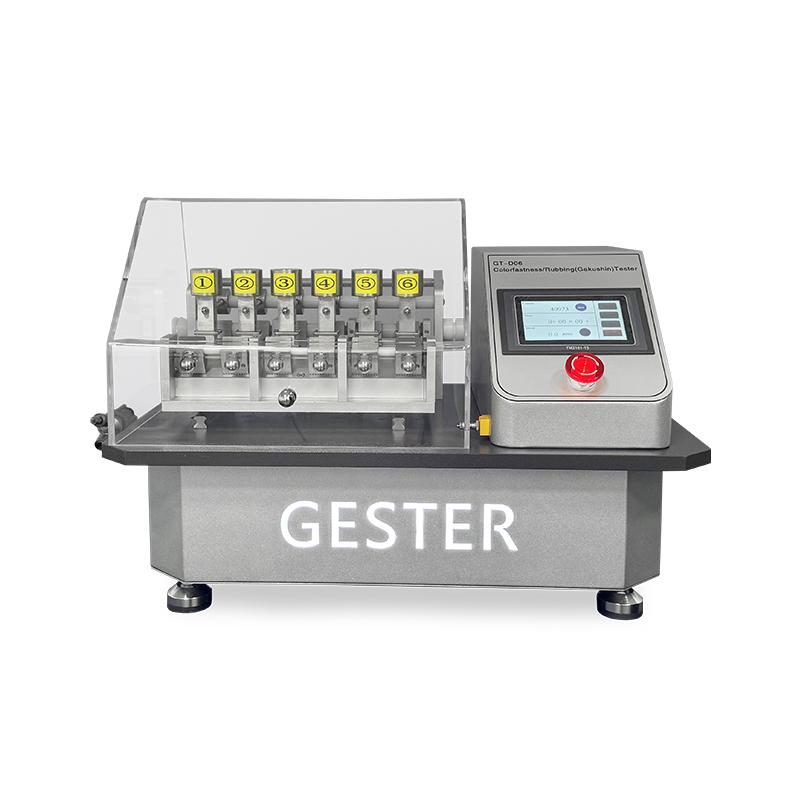

Gakushin Colorfastness Rubbing Tester For evaluating a material's resistance to rubbing motion. Unit is a six station, benchtop machine which includes clamps for sample attachment to moving platen and clamps for weighted rubbing arm for attachment of rubbing material. Cycle counter automatically stops machine at end of test cycles. Test samples are visually evaluated.

Standards

JIS L0823, JIS L0849 Type2, JIS L1006, JIS L1084, JIS L 0862, JIS 10801, TSL5100G, QB/T1646

1. Metal box, high-temperature baking coating, easy maintenance.

2. Gakushin Rubbing Fastness Tester Equip with acrylic protecting hood, can protect operation staff security.

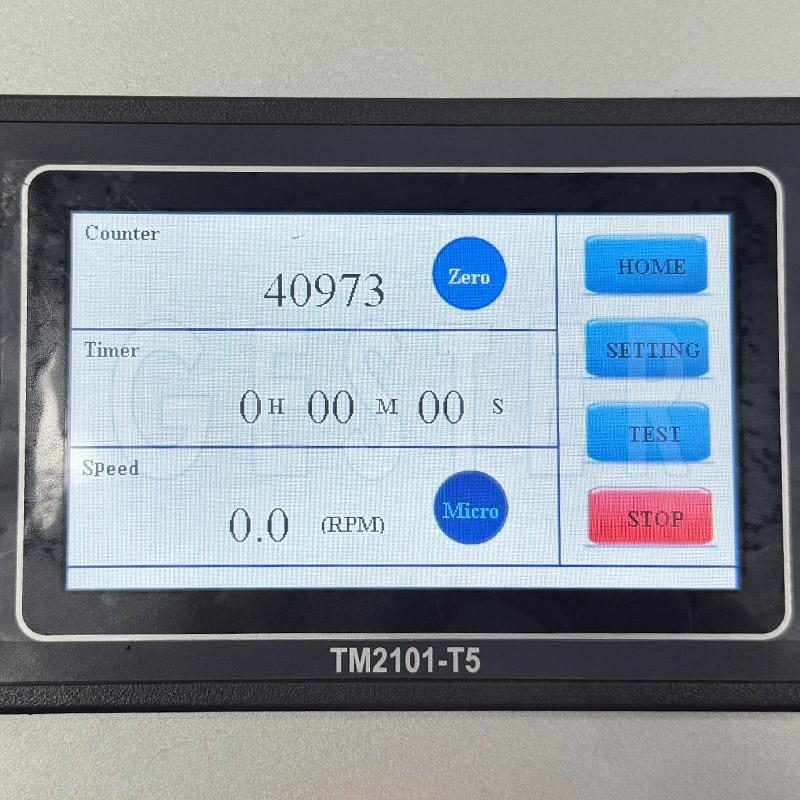

3. Electric motor, fitted with a pre-determined electronic counter for strokes up to 9999, experiment complete successfully, automatic stop.

Accessories

Q1: How many samples can be tested at once?

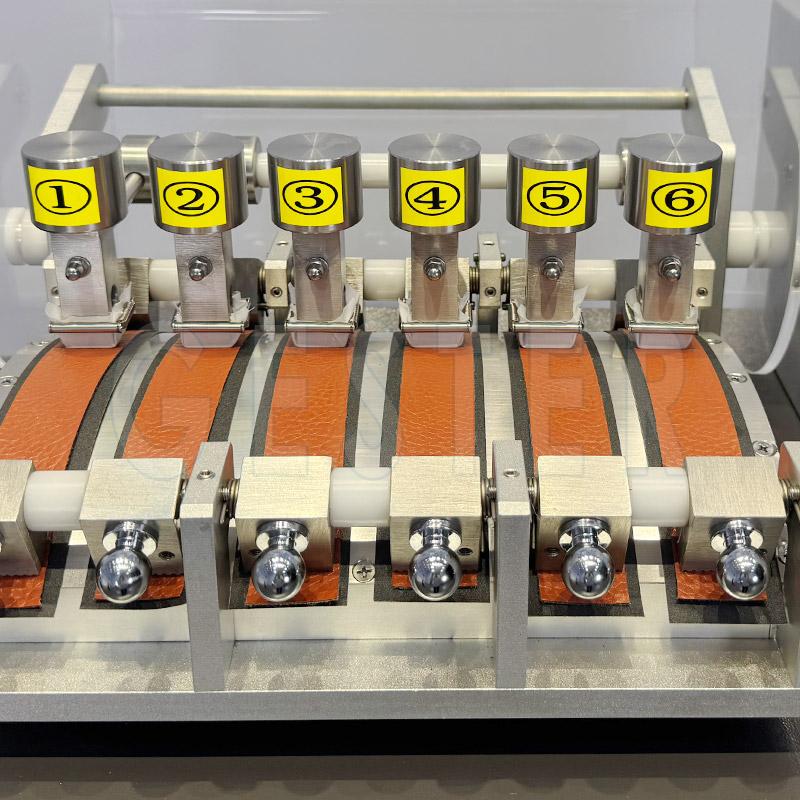

A: The Gakushin Rubbing Tester GT-D06 features 6 Working positions, allowing you to test up to 6 different specimens simultaneously, which greatly improves testing efficiency compared to single-station models.

Q2: Can it be used for both dry and wet rubbing tests?

A: Yes. By adjusting the moisture content of the rubbing cloth according to the standard, the machine accurately performs both dry and wet rubbing fastness evaluations.

Q3: What is the benefit of the "Gakushin" (Type II) design over the standard Crockmeter?

A: The Gakushin-style tester uses a curved rubbing head and a specific arc-shaped motion, which is mandatory for many JIS-based quality assessments, especially in the Japanese automotive and textile industries.

Q4: Is the machine easy to maintain and calibrate?

A: Yes, the GT-D06 is built for durability with minimal maintenance required. GESTER provides detailed calibration instructions to ensure the pressure and stroke remain within standard tolerances.
