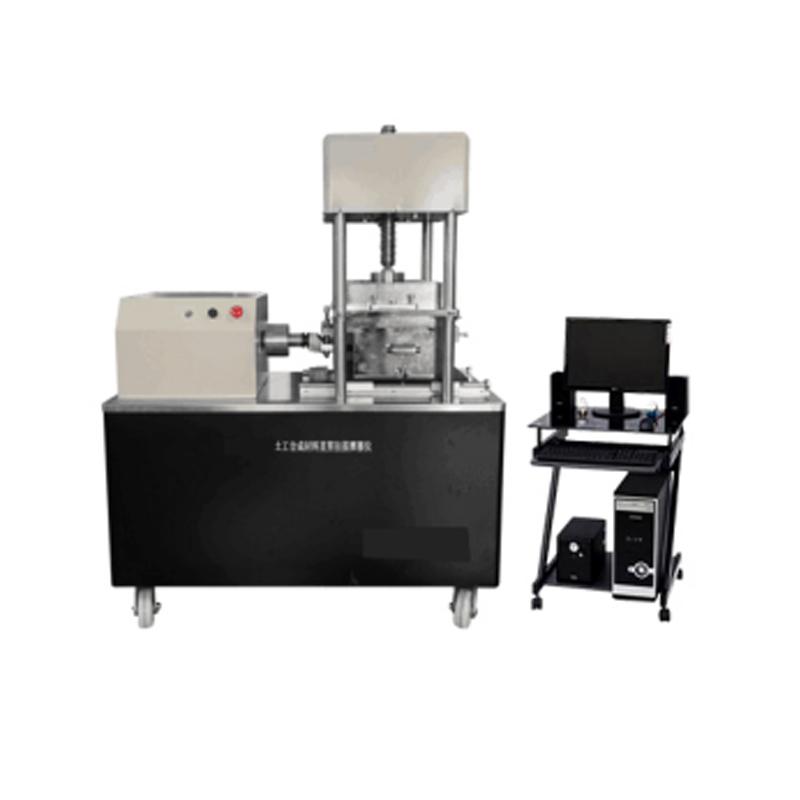

Geotextile Synthetic Material Straight Snips Tester GT-C91

Product Introduction

Application:

This machine is designed for all kinds of geotextile and its relative products frictional characteristic.

Standards:

ISO12957.1, GB/T17635.1, ASTM D5321, JTG E50-2006 T1129, JTG E50-2006 T1130, SL/T235-1999, SL235-2012

Function:

Print output: it supports print output with simultaneous on-screen display of direct shear force and normal force; test results can be printed in the forms of curves, shear force, pull-out force, etc.
Computer processing: it reports and graphs, with on-screen display or printed output.
Operating Software: it can be connected to a PC to record the whole test process, and display real-time curves and data such as shear force and pull-out force.
Multi-function integrated machine: it can perform direct shear friction tests and pull-out friction tests for geosynthetics.

Key Specification

Model	GT-C91
Force Range	50KN, Accuracy:≤±0.02%F.S
Pull-out Test Chamber Size	250×200×200 mm
Shear Box Dimension	300×300×150mm
Shear Box Dimensions for Water Conservancy Standard	80×80mm(Upper and Lower Box)
Pull-out Test Chamber Size	400×250×250mm
Stroke	200mm, resolution 0.001mm
Sampling Frequency	2500 times per second
Speed Range:	0.1-50mm/min
Shear Stress Accuracy	±0.5%
Normal Force	0-200KPa
Test Units of Normal Force	Mpa、Kpa、kgf/mm²、N/mm²、N/cm², can switch
Normal Force Adjustment	Electric Control
Normal Force Accuracy	1 kPa
Power Supply	1∮ AC 220V 50/60Hz
