Footwear Steel Shanks Stiffness Tester
Brand:
GESTERItem NO.:
GT-KB45Order(MOQ):
1Payment:
T/T, L/CShipping Port:
Xiamen PortLead Time：
20 daysProduct Detail

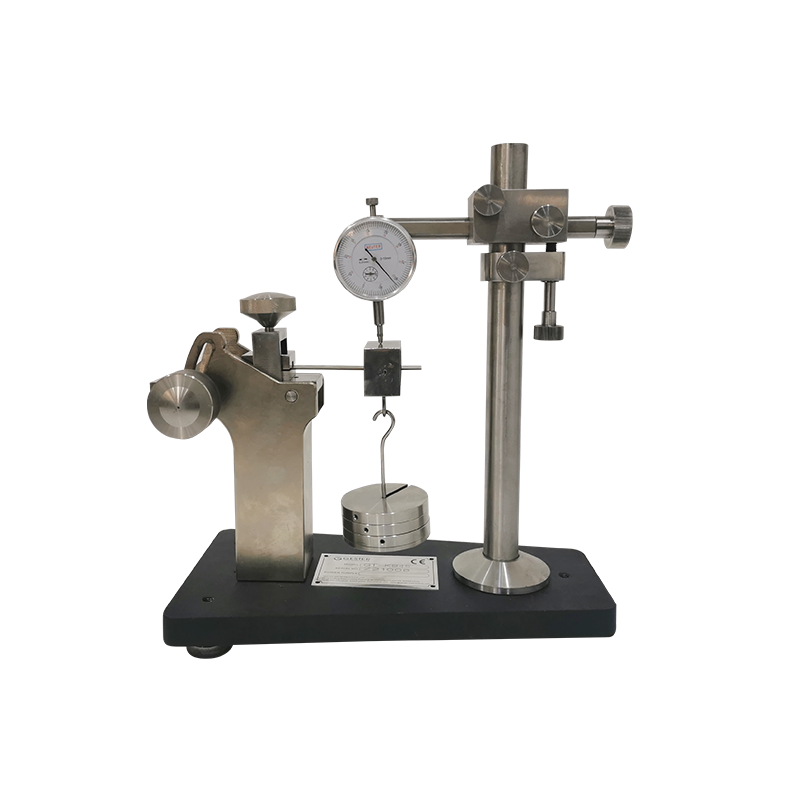

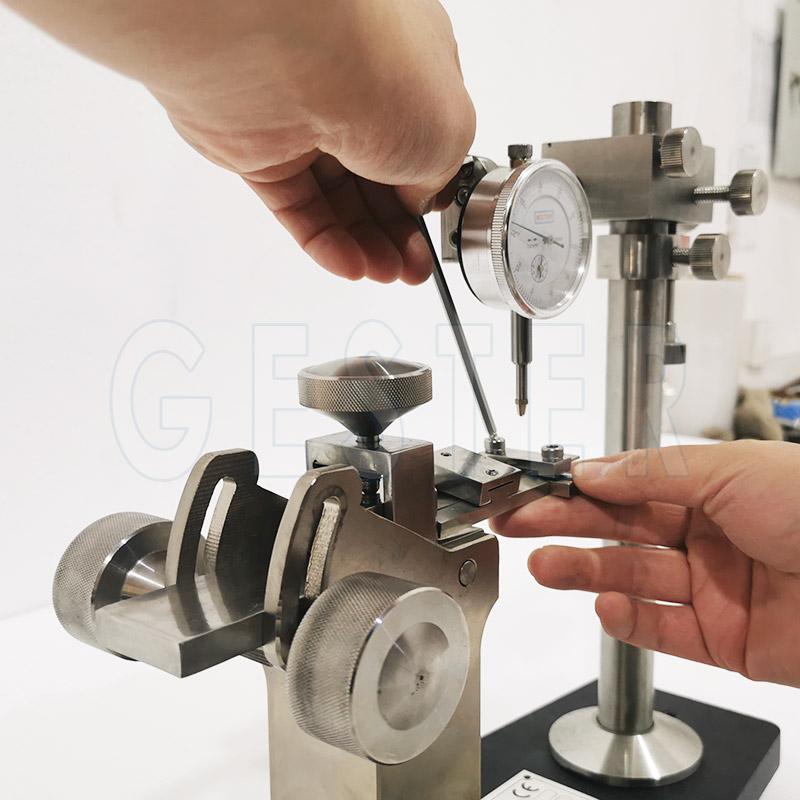

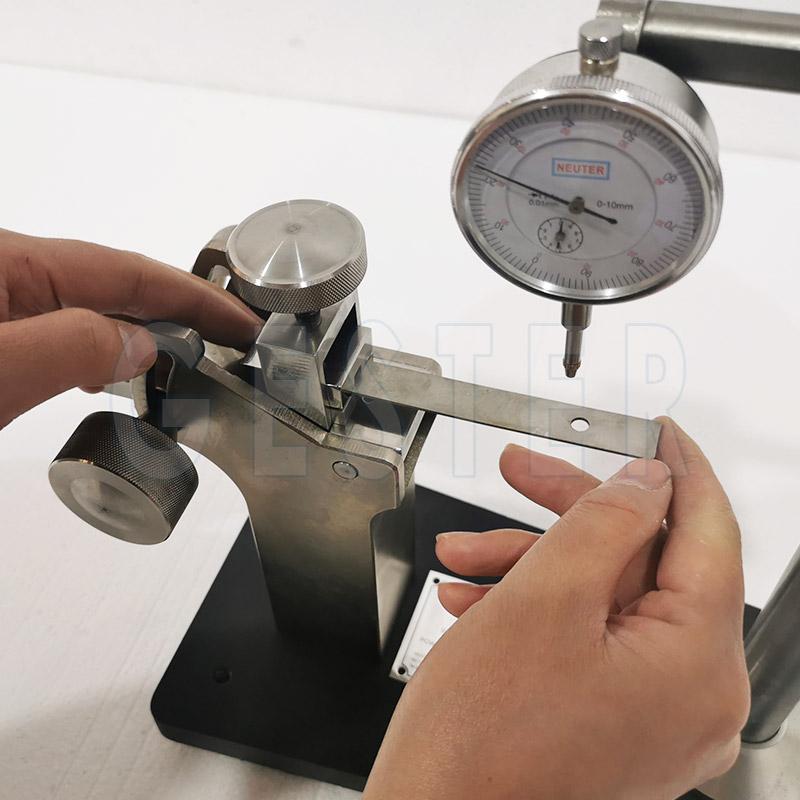

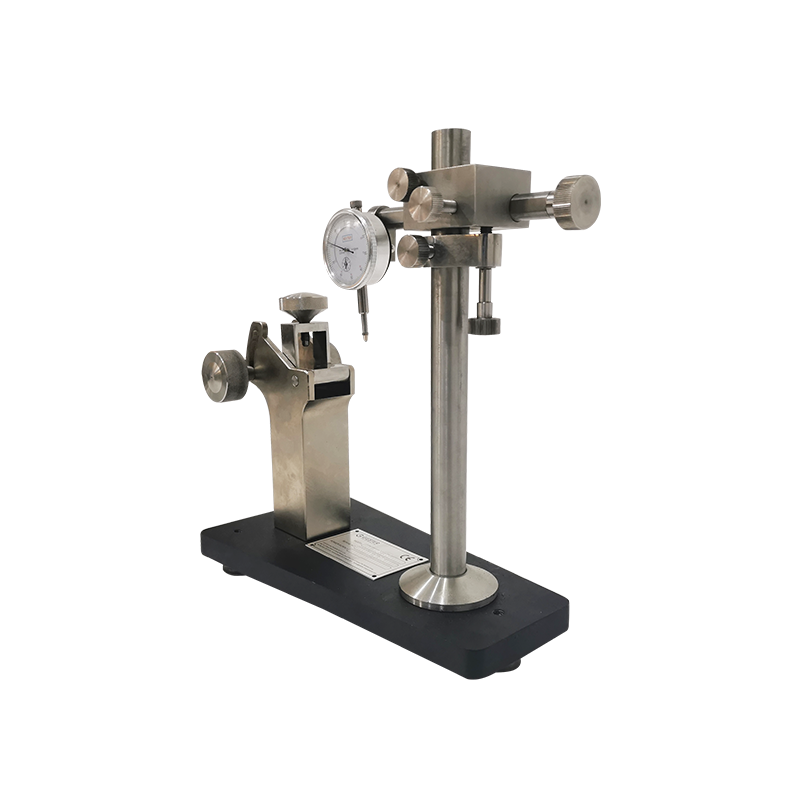

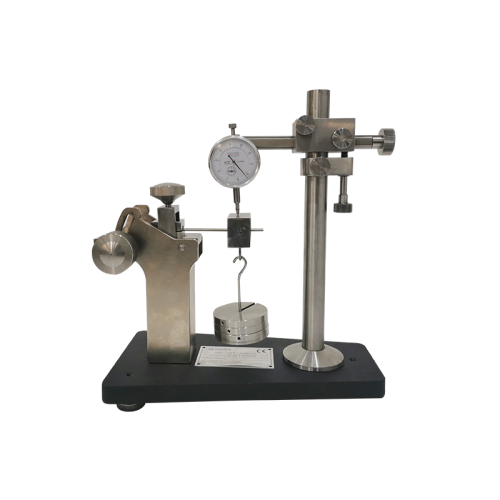

Steel Shanks Stiffness Tester GT-KB45
|

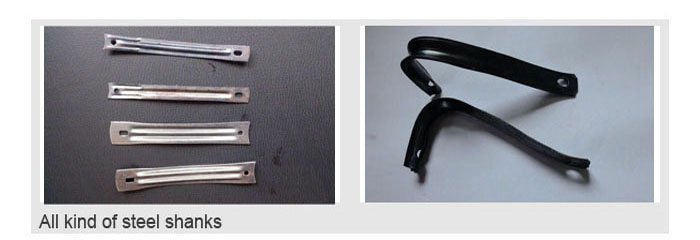

Application: This Steel Shanks Stiffness Tester is used to measure the stiffness in the longitudinal direction of steel shanks used for the reinforcement within footwear and it applicable to steel shanks for all styles of footwear. |
Insole Backpart Stiffness Tester tests the specimen by simulating a personal walking in a normal way so as to determine the resistance of the specimen to flex. Users can set the number of tests themselves, and it will stop automatically when the number of tests has been reached. More than one specimen can be tested once in order to enhance work efficiency.
|
Model |
GT-KB45 |
|
Adjustable angle of back holders |
≦30degree |
|
Specified measuring length |
60±0.02mm |
|
Thickness of front clamp |
12mm |
|
Dial gauge |
0~10mm(Min. graduation 0.01mm) |
|
Dimensions（W×D×H） |
30 cm *16 cm *40 cm |
|
Weight |
16.5 kg |
|
Standards |
SATRA TM 58, BS-5131-4.18,
ISO 18896,
QB/T1812, QB/T1813, GB/T 3903.34 |
