MIT Type Paper Folding Endurance Tester GT-N16
MIT Type Paper Folding Endurance Tester GT-N16
  • Product Origin:

    China
  • Brand:

    GESTER
  • Item No.:

    GT-N16
  • Standard:

    ISO 5626, GB/T 2679.5, QB/T 1049
  • Shipping Port:

    Xiamen Port
  • Lead Time:

    20 days
  • Payment:

    TT or L/C
contact now

MIT Type Paper Folding Endurance Tester GT-N16


Product Introduction

Application:

The GT-N16 MIT Type Paper Folding Endurance Tester is used for determining the folding endurance strength of paper and paperboard using hang type weight method.


This machine has various functions, such as, parameter testing, parametric transformation, parameter regulation, parameter display, parameter memory and parameter print. The tester has data processing function which can directly output result of statistical data with convenient operation, easy regulation and stable performance.

The main functions are shown as following , compact structure, light weight, abundant functions, horizontal type and stable performance, so the tester is suitable for different paper and boards.

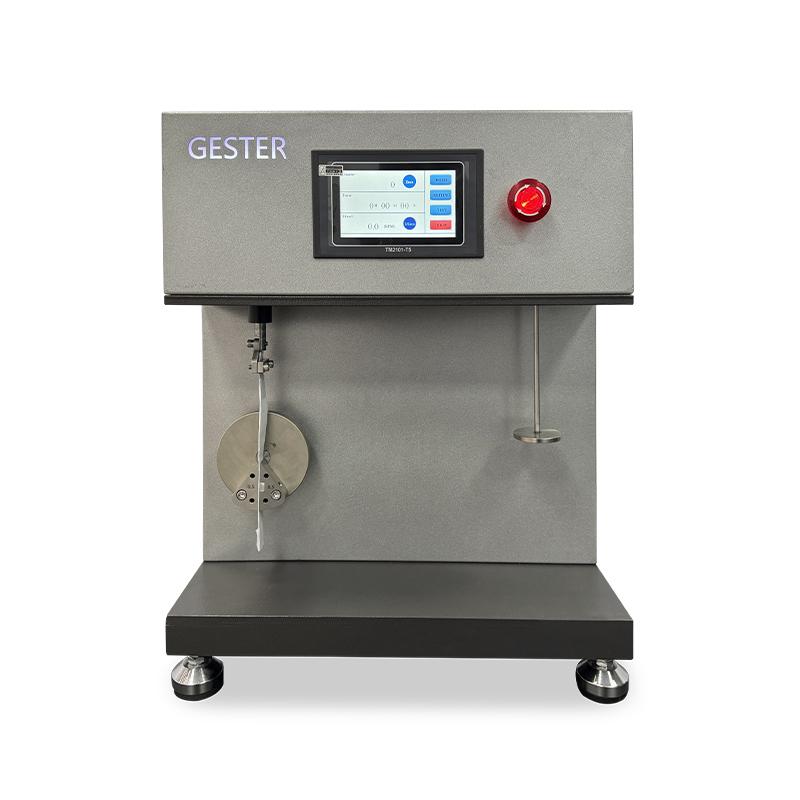

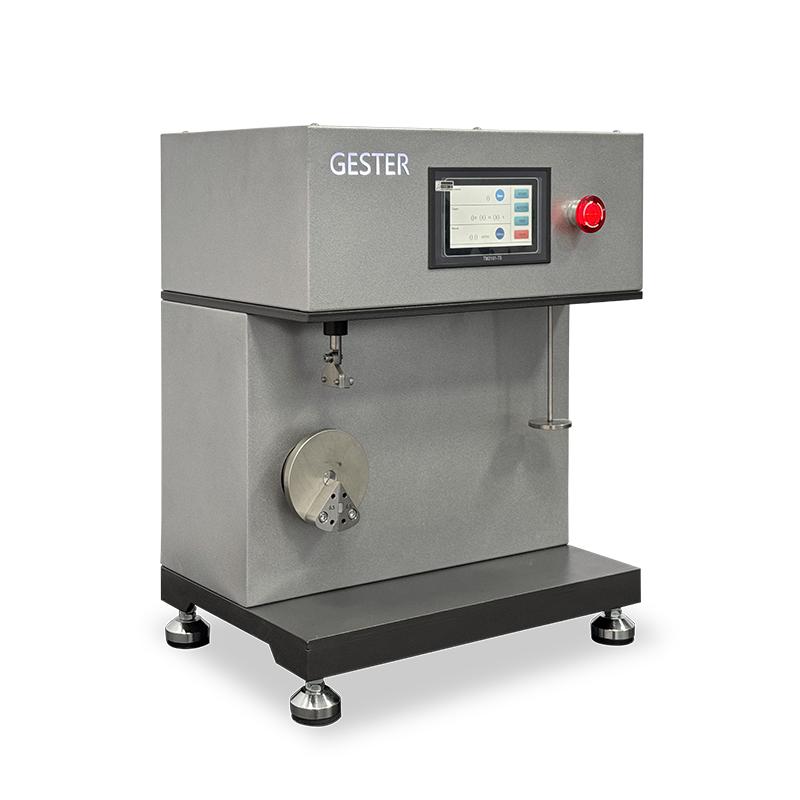

Product's Photo

MIT Type Paper Folding Endurance Tester



Key Specifications



Model

GT-N16

Measuring Range

0 - 99999

Folding Angle

135+/-20, Folding Frequency: 175+/-10 times/min.

Folding Head Width

9+/-1mm; Folding Radius: 0.38+/-0.02mm.

The spring tension

4.91N~14.72N, when every 9.81N tension is added, the compression of spring is 17 mm reduced at least.

The clearances between folding ports

0.25, 0.50, 0.75 and 1.00mm (four ranges)

The tension change due to the eccentric rotating of clamping folding head

Should not be larger than 0.343N.

Standards

ISO 5626, GB/T 2679.5, QB/T 1049
