Pen-cap Air Flow Tester GT-S06

Pen-Cap Air Flow Test Equipment mainly be used to test the safety of the caps for writing and marking instruments which are designed or clearly intended for use by children up to 14 years of age

  • Brand:

    GESTER
  • Item NO.:

    GT-S06
  • Order(MOQ):

    1
  • Payment:

    100% T/T in advance
  • Shipping Port:

    Xiamen Port
  • Lead Time:

    7-30 days
  • Product Detail

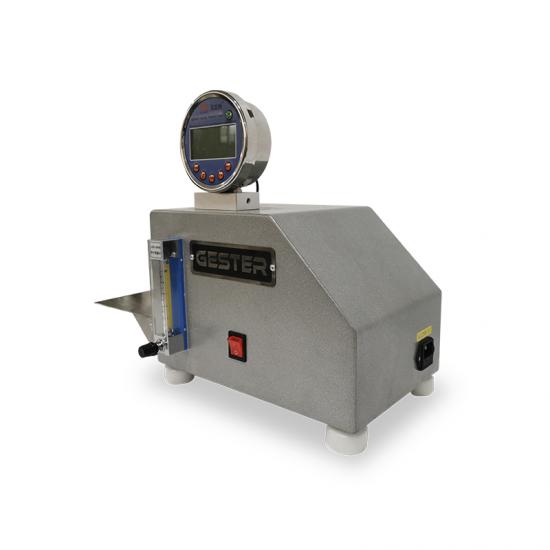

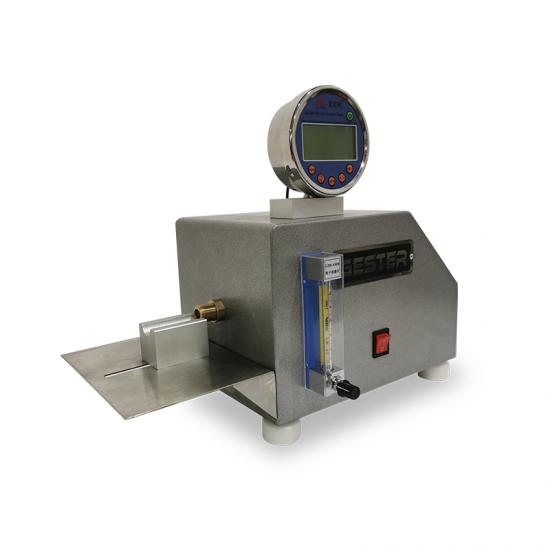

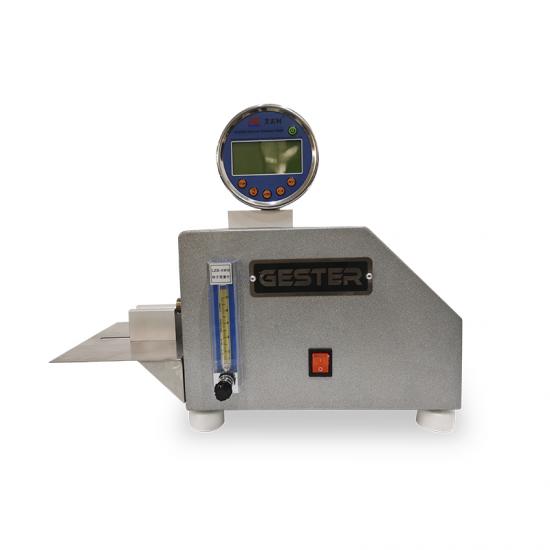

Pen-cap Air Flow Tester GT-S06


Product Introduction

Application:

This Pen-Cap Air Flow Test Equipment mainly be used to test the safety of the caps for writing and marking instruments which are designed or clearly intended for use by children up to 14 years of age. However, Caps for writing and marking instruments which are not designed or intended for use by children, e.g. jewellery pens, expensive fountain pens, professional technical pens, are not be test by this method.



Standards:

ISO 11540

BS 7272-1

GB/T 24110

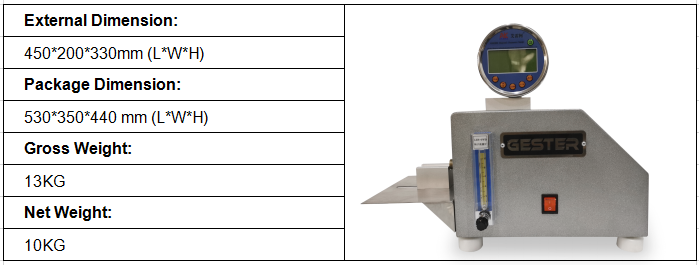

Dimensions

Cap Air Flow Tester Test Principle

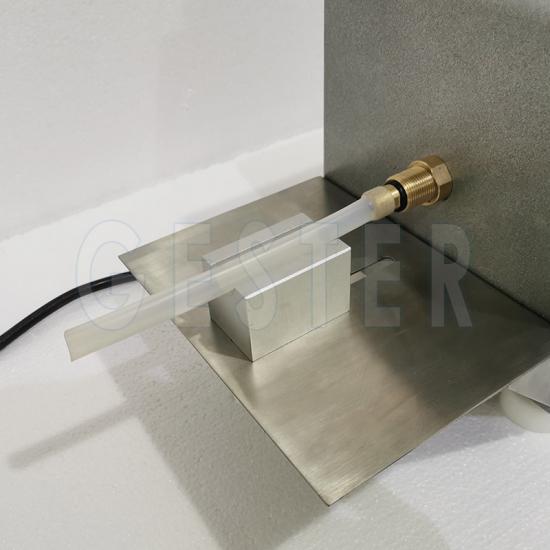

The test cap is fully inserted into an elastomeric tube of the appropriate diameter and the air flow through the tube and the pressure drop are measured in both directions. And when tested, caps shall permit a minimum air flow of 8 l/min, measured at room temperature, with a maximum pressure drop of 1.33 Kpa.

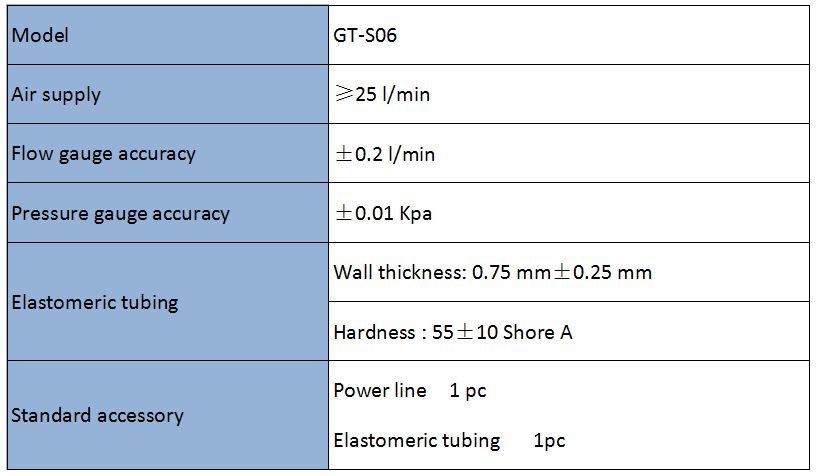

Key Specifications



Pen-Cap Air Flow Tester
