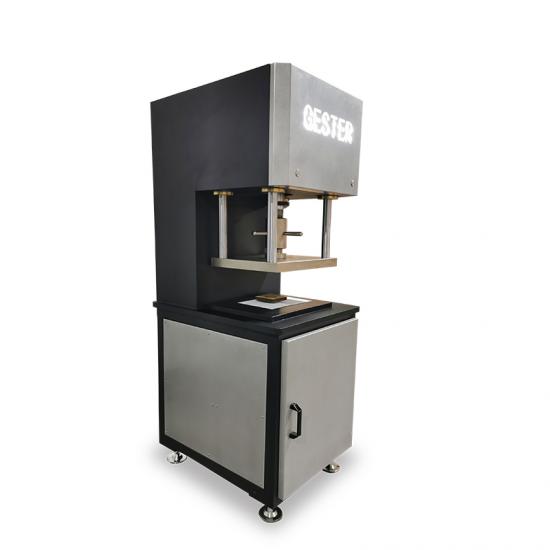

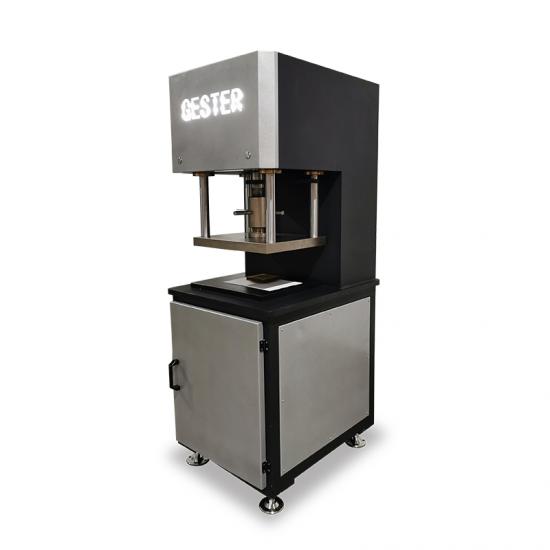

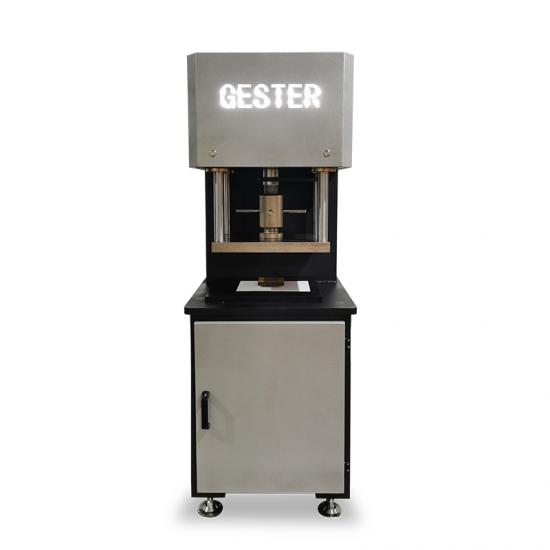

Pneumatic Sample Cutting Machine GT-KD20
Pneumatic Sample Cutting Machine GT-KD20
  • Brand:

    GESTER
  • Item No.:

    GT-KD20
  • Certificate:

    ISO 9001, UKAS, CE
  • Standard:

    ASTM D3776/2646, ISO 3801, BS 3424/2471, BS EN 12127
  • Shipping Port:

    Xiamen Port
  • Lead Time:

    10-30 days
  • Payment:

    T/T, L/C
contact now

Pneumatic Sample Cutting Machine GT-KD20


Product Introduction

Application:

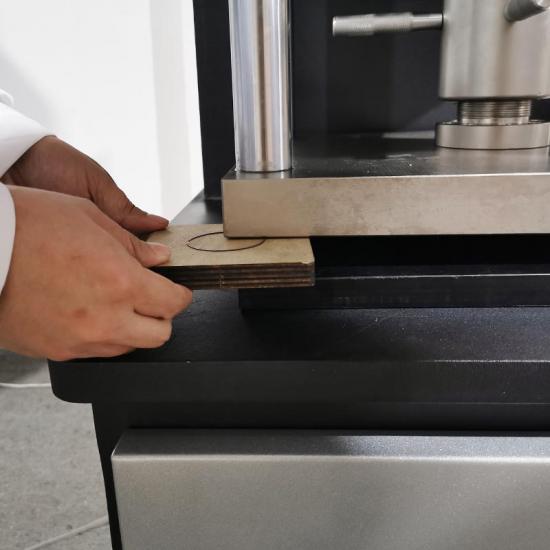

  • This is console model pneumatic sample cutting machine, which is suitable for cutting paper, cardboard, textile, leather, rubber and other materials.


Standards:

ASTM D3776/2646, ISO 3801, BS 3424/2471, BS EN 12127, M&S P65/65A, ISO 20344 ,ISO 5470-2,ISO 3801,AS/NZS 2210.2, GB/T 20991,SATRA TM31


Feature

  • Pneumatic Rubber Sample Cutting Machines is equipped with a steel base. Customer does not need to prepare the working table.

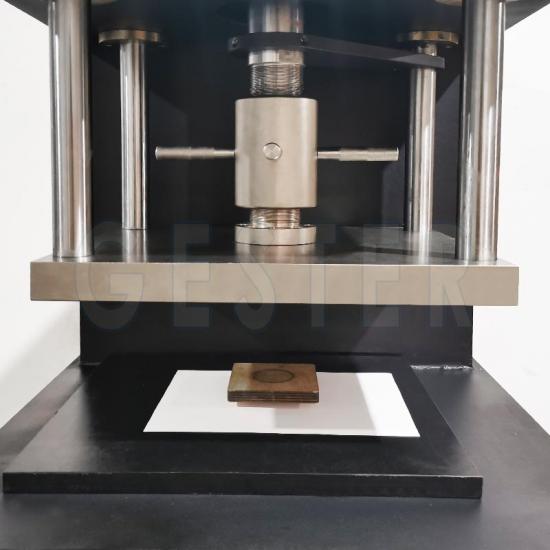

  • Pneumatic Rubber Sample Cutting Machines adopts the rectangle compression platen of dimension 450mm* 380mm , which is install with four guide rods. That is aimed to ensure the parallelism between compression platen and workbench and keep stable during running.
  • Using air cylinder with engine bore of 300mm. It can provide pressure of 4T at the gas pressure of 6kg/cm2.
  • Equipped with dual boot switch, in order to keep safety of operator.


Key Specifications



Model

GT-KD20

Max Pressure

4T

Pressing Plate Dimension

450x380mm

Table-board Dimension

640X480mm

Max Stroke

150mm

Distance from Pressing Plate to Table-board

150mm

Air pressure

6kg/cm2

Power supply

AC220V±10% 50/60Hz

Dimensions

810 x 640 x 1720mm (L x W x H)

Weight

350kg



Accessories

Standard accessories

1pc

Round Die 100cm2



1pc



Power Line

Optional accessories

Optional

Customized Cutting Die
