Safety Shoes Cold Insulation Test Chamber is used to determine the Cold insulation test for safety shoes under low-temperature.
Brand:
GESTERItem NO.:
GT-KB25Order(MOQ):
1Payment:
T/T, L/CShipping Port:
Xiamen PortLead Time：
10-30 daysProduct Detail

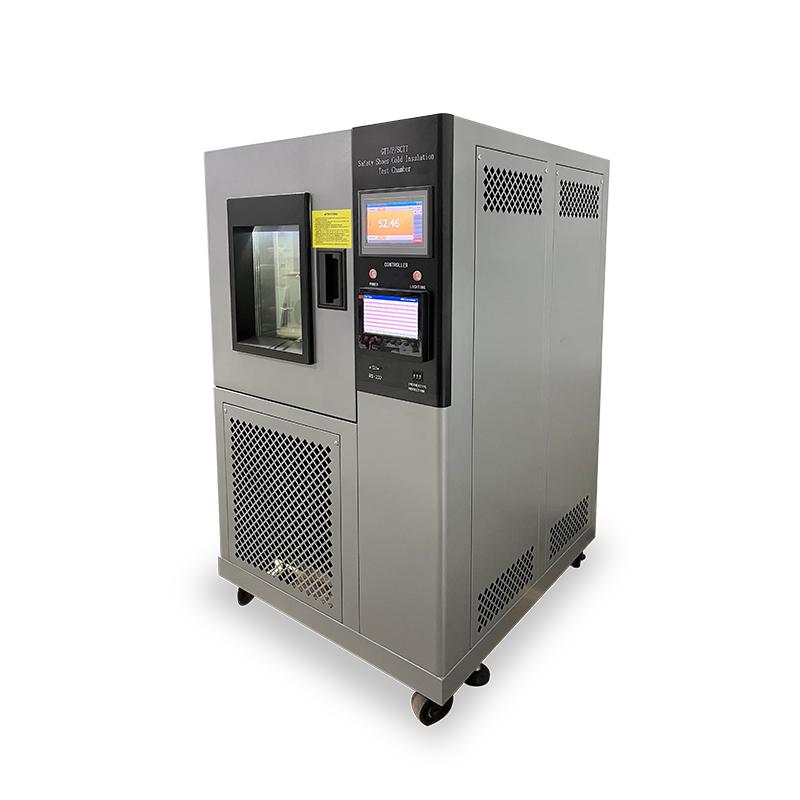

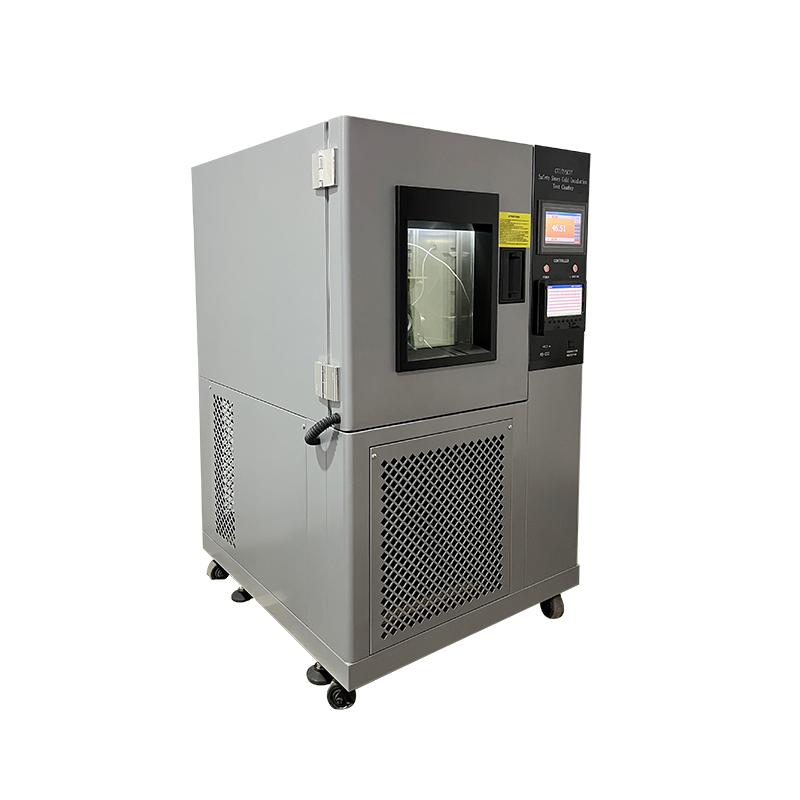

Safety Shoes Cold Insulation Test Chamber GT-KB25
Application:
Safety Shoes Cold Insulation Test Chamber is used to determine the cold insulation test for safety shoes under low-temperature.
1.Adjust the temperature of the cold box to (–17 ± 2) ℃ and maintain this temperature during the test. 2.Place the test piece on the laboratory jack inside the cold box.
3.Use the temperature measuring device connected to the temperature probe to measure the temperature on the insole as a function of time, recording the temperature decrease graphically. 4.Calculate, to the nearest 0,5°C, the decrease in temperature 30 min after the test piece was placed in the cold box.
|
Model |
GT-KB25 |
|
|
Low-temperature chamber |
Temperature Range |
-25 ℃~100℃ |
|
Temperature accuracy |
0.1 ℃ |
|
|
Temperature measuring device for inside shoes |
Temperature probe |
Soldered to a copper disc 2mm thick and 15mm diameter, accuracy ±0.5°C |
|
Heat transfer medium |
￠5 mm Steel balls, total mass(4 000±40) g |
|
|
Copperplate size(L×W×T) |
350×150×5mm |
|
|
Power supply |
1∮AC 220V 50/60HZ |
|
|

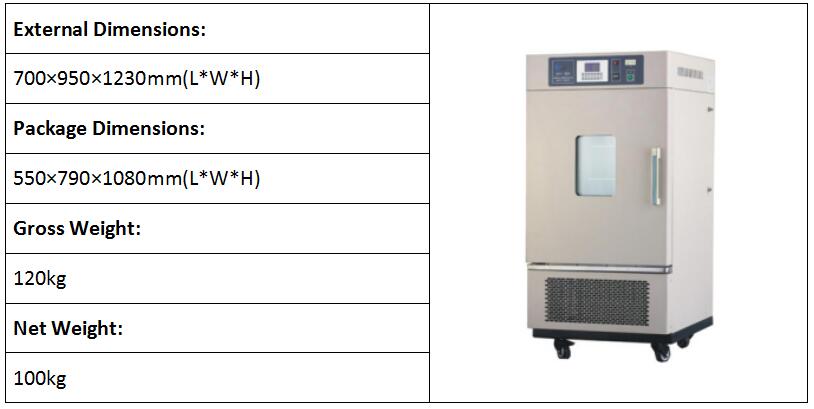

Dimensions (W×D×H) |
550×790×1080mm |
|
|
Weight |
100kg |
|
|
Standards |
ISO 20344-2021 section 5.16 GB/T 20991 section 5.13 AS/NZS 2210.2 section 5.13 |
|
|
Standard Accessory |
Temperature probe 1 set ￠5 mm Steel balls 4kg Power line 1pcs |
|
