Touch Screen Charpy and Izod Impact Tester

Touch Screen Charpy and Izod Impact Tester GT-P03

Professional Charpy Izod Impact Tester

Brand:
GESTER
Item NO.:
GT-P03
Order(MOQ):
1
Lead Time：
15 - 30 days

Inquire now

Product Detail

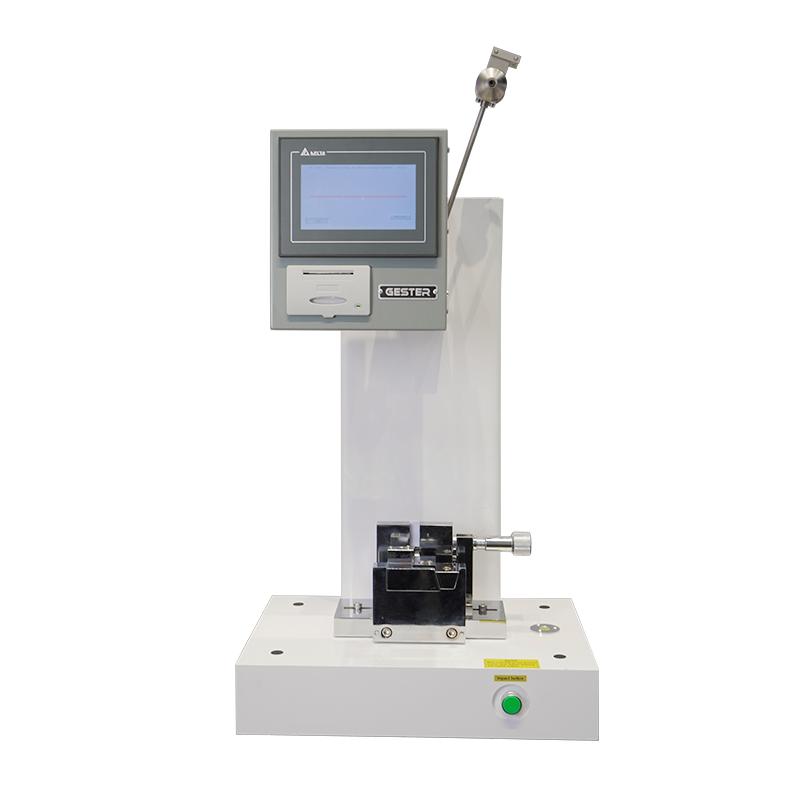

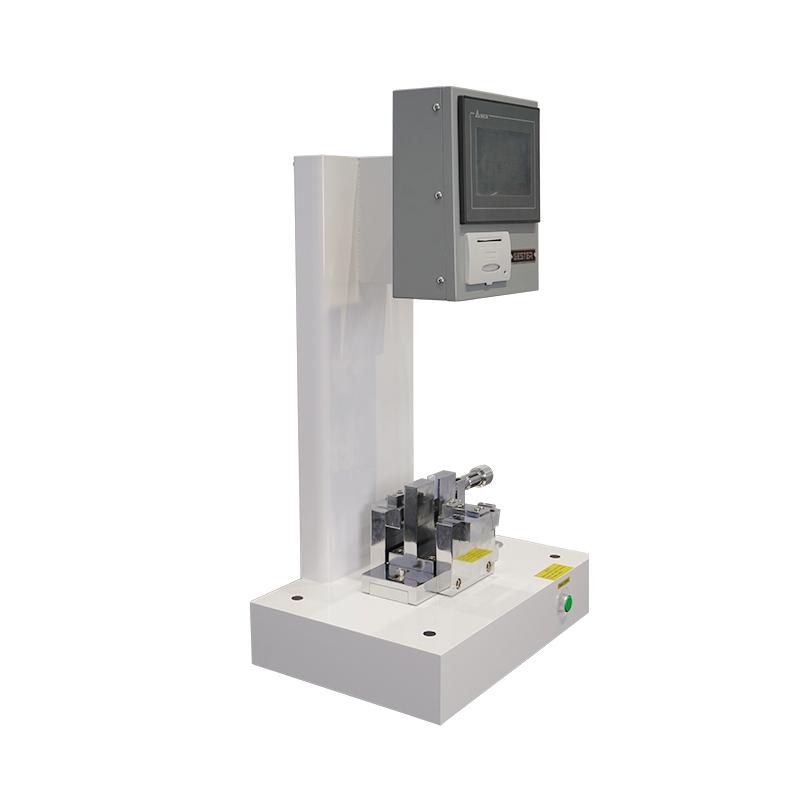

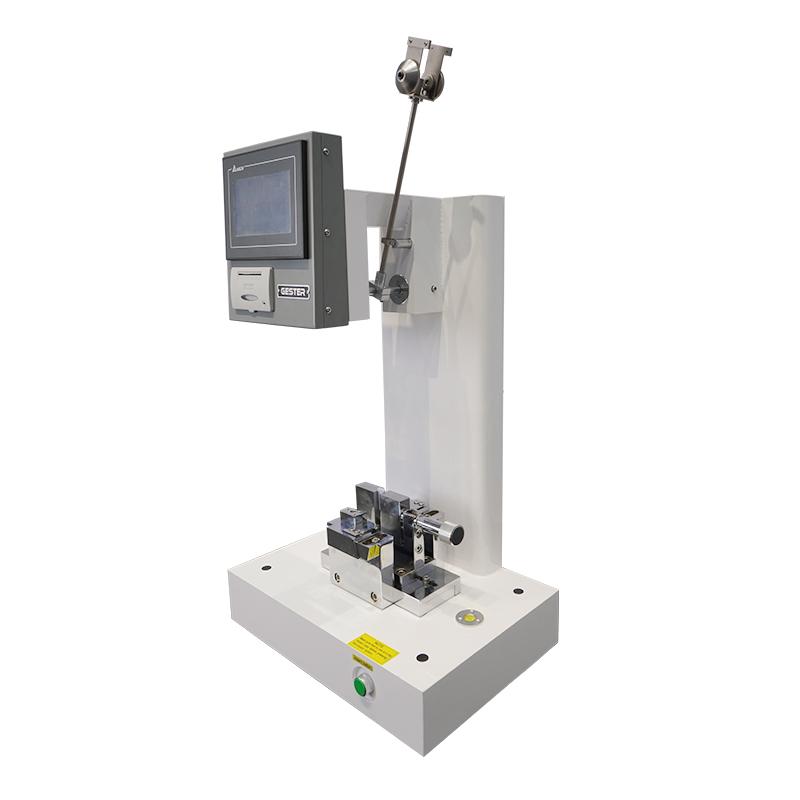

Touch Screen Charpy and Izod Impact Tester GT-P03

Product Introduction

Application:

To be used for hard plastics, reinforced nylon, glass fiber reinforced plastic, ceramics, cast stone, electrical insulation materials and other non-metallic materials impact toughness determination.

Feature

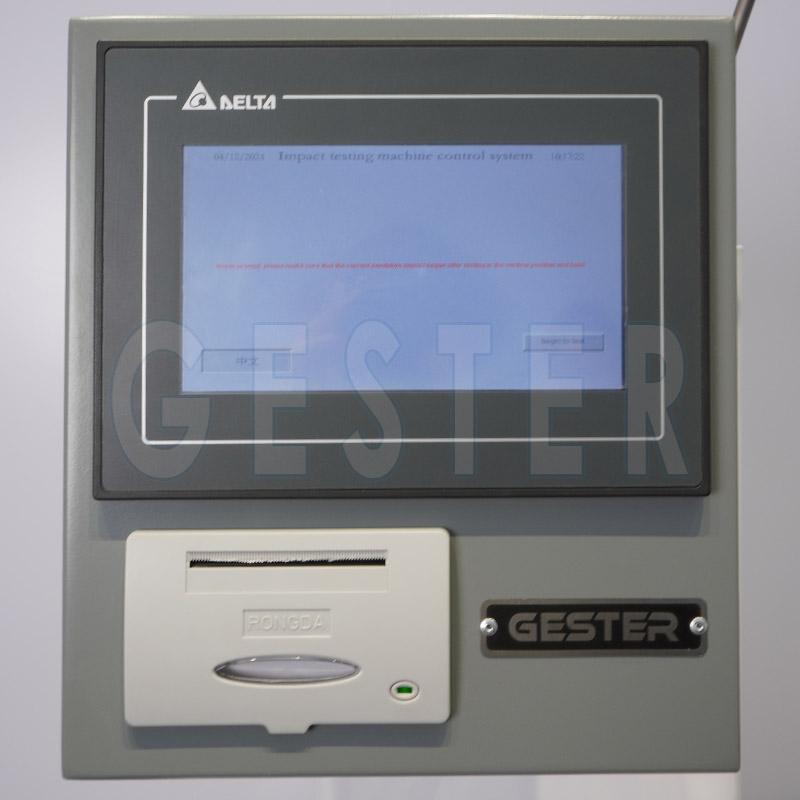

Touch screen display operation, PLC module control, can store 5 specimen data and calculate the average value of impact strength.
Combine charpy and Izod impact as a whole
Has angle measurement, zero clearing function; energy loss measurement and automatic compensation function.
Automatic calculation of Impact strength, standard deviation.
Can print test report.

Key Specifications

Model	GT-P03
Test	Charpy Impact	Izod Impact
Speed	3.8 m/s	3.5 m/s
Pendulum Bob Energy	7.5,15,25, or 50J(optional)	1,2.75,5.5,11J,or 22J(optional)
Pendulum Bob Raising Angle	160°	160°
Cutter edge Radius	R=2±0.5mm	R=0.8±0.2mm

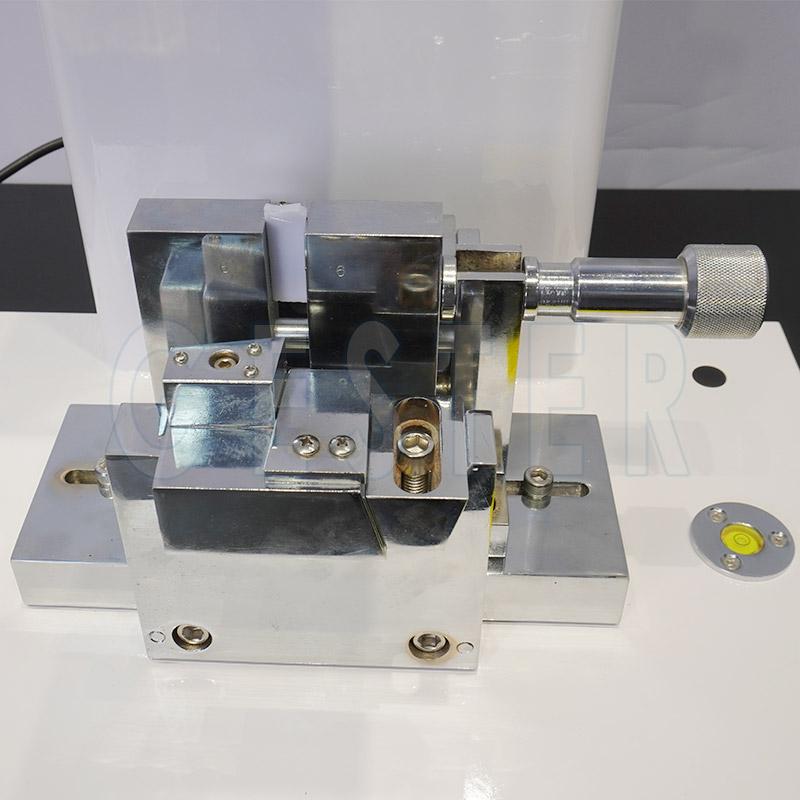

Jaw Fillet Radius	R=1±0.1mm	R=1±0.1mm
Distance between jaw support lines	40 mm,62 mm, 70 mm95mm	Wedge Jaw, Universal type
Impact Blade Angle	30°±l°	75°±l°
Pendulum Air Impact	0.5%	0.5%
Standard	GB/T 1043, JB/T 8762, IS0 179	GB/T 1843, JB/T 8761, IS0 180
Using Temp.	15℃-35℃
Dimension	550mm×350mm×850mm
Weight	100kg
Power Supply	AC220V ,50Hz
