Two Part Metal Mould GT-KB29
Application:

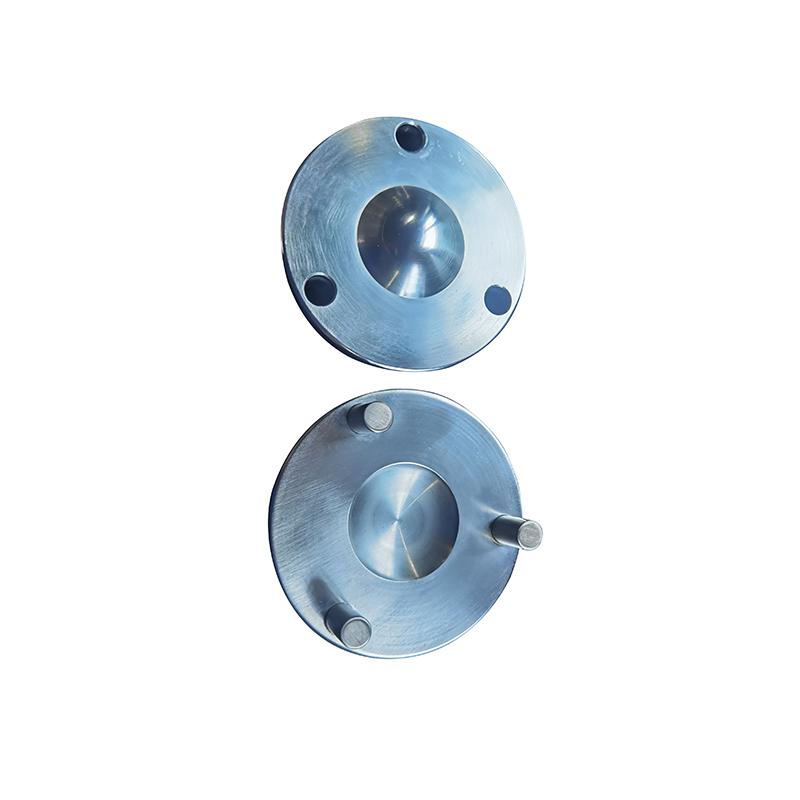

A two part metal mould with a lower block having a spherical recess of diameter 47.5 ± 0.5 mm, depth 9.3 ± 0.2 mm and radius of curvature 35.0 ± 0.5 mm and an upper block having a downward facing spherical dome of the same dimensions as the spherical recess in the lower block, such that the dome will fit into the recess.
|
Model |
GT-KB29 |
|
Material |
Steel |
|
Dimensions（W×D×H） |
About 100 ´ 100 ´ 60 mm |
|
Weight |
About 4kg |
|
Standards |
IS 7554-2009 Annex A-1.10, IS 15844-1-2023 Section 4.10 |
