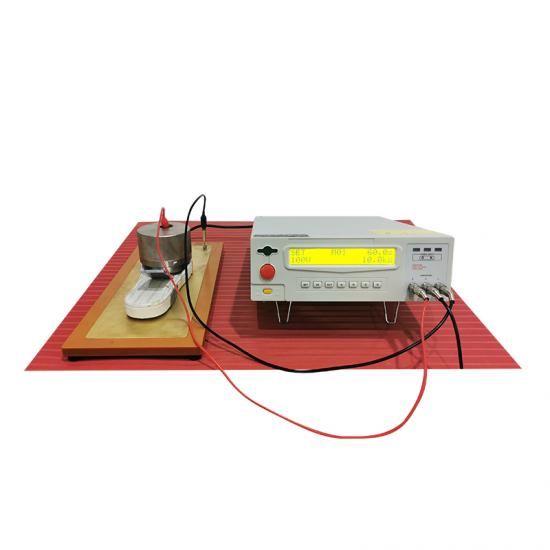

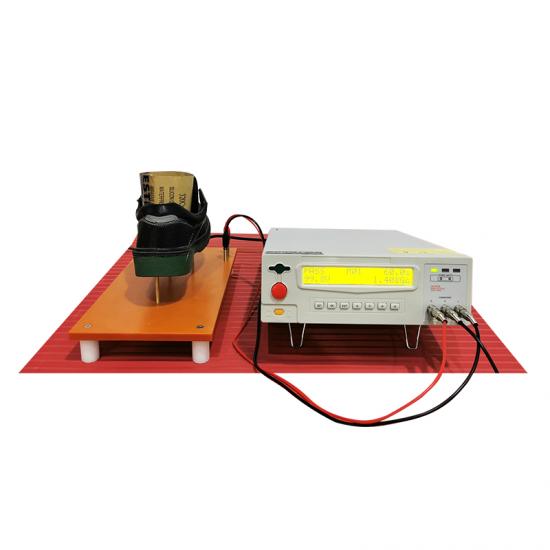

Anti-static Electrical/Electrical Resistance Tester GT-KC38-1B
Application:

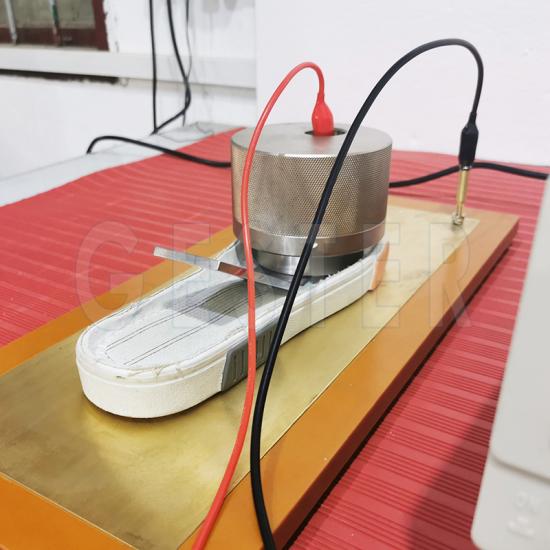

This instrument is used for testing the electrical resistance of the shoe or its materials so as to assess its anti-static characteristics.
Standards:
CSA-Z195; GB/T20991, NOM-113-STPS
EN ISO 20344, EN344-1; AS/NZS 2210.2, EN 61340-4-3
|
Model |
GT-KC38-1B |
|
Display |
7-inch true-color IPS display for showing test values |
|
Voltage Range |
DC 0.5V ~ 1000V, Programmable and adjustable |
|
Resistance Range |
100~1017Ω |
|
Current Range |
0.1fA～ 2mA |
|
Test Speed |
Fast: single measurement time ≤100ms; Slow: single measurement time ≤200ms |
|
Test Duration |
0~999S programmable |
|
Power Supply |
1∮AC 220V 50/60HZ |
|
Dimensions (W×D×H) |
20×16×19cm |
|
Weight (approx.) |
15kg |

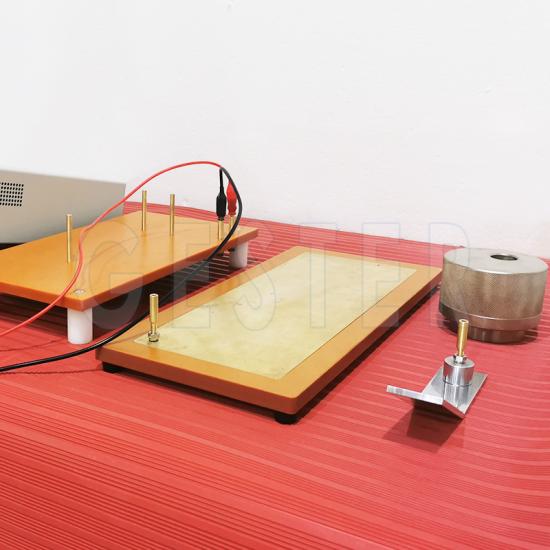

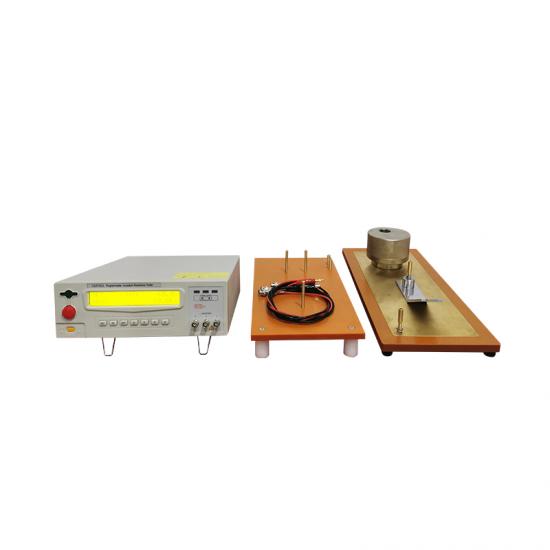

Accessories
|
Standards accessories |
2pcs |
Test line |
|
1pc |
Copper electrode |
|
|
4kg |
Φ5mm Steel ball |
|
|
1set |
Insulated gloves |
|
|
1㎡ |
6KV Insulated pad |
|
|
1pc |
Power line |
|
|
Optional accessories |
1set |
EN 61340-4-3 Test Fixture and 12.5kg Φ 3mm Steel ball |
|
1set |
CSA-Z195-25 Test Fixture and 4kg Φ 3mm Steel ball |
