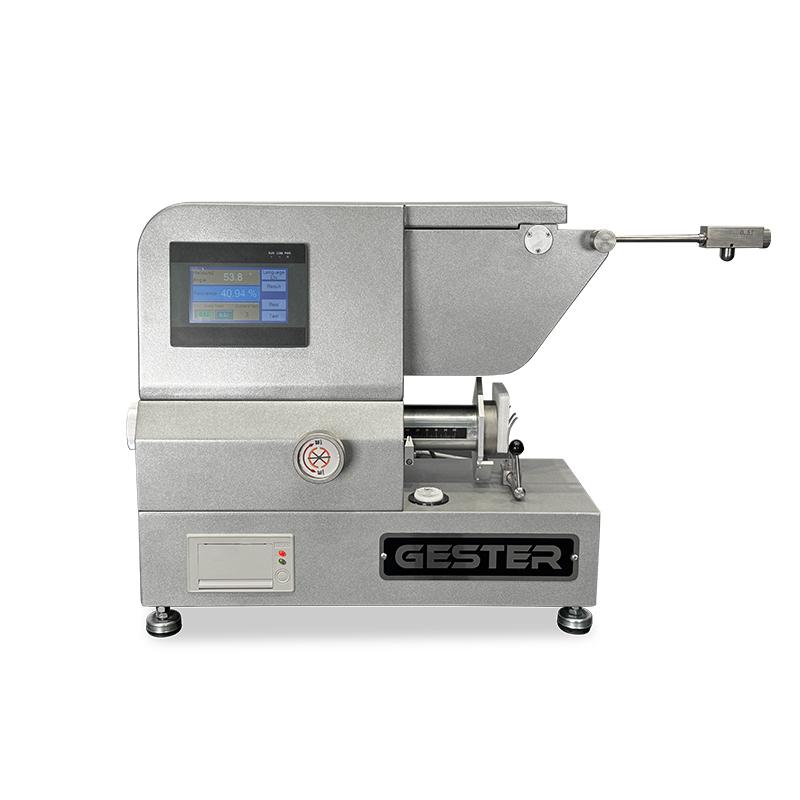

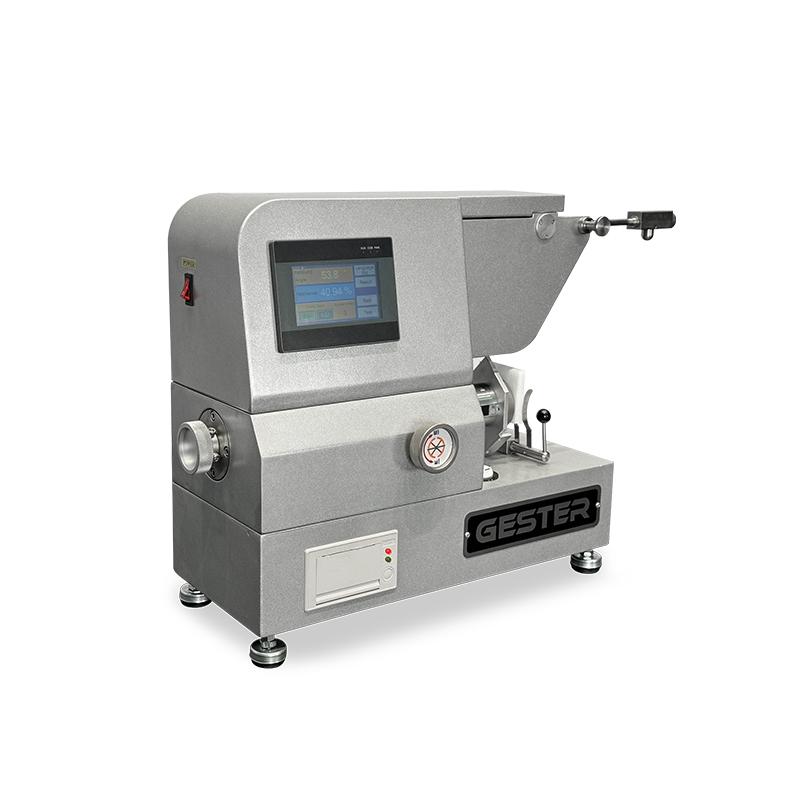

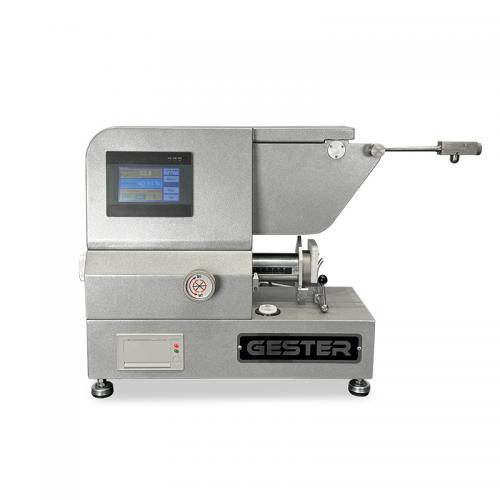

Rebound Resilience Elasticity Tester GT-KB18
Application:
The tester is used to measure the impact resistance of elastic material and flexible cellular materials. The test results of this tester can be used for understanding the difference between different materials, and can be used to measure the change of elasticity after specimen being aged.
|
Model |
GT-KB18B |
|
Impcat energy |
0.5J, 0.2J |
|
Range of display |
0-100% , resolution 1% |
|
Impact angle |
90 degree |
|
Length of pendulum |
200 mm |
|
Impact speed |
1.40 ~ 2.04 m/sec |
|
Specimen thickness range |
0- 60 mm |
|
Mobile shaft minimum scale |
1mm |
|
Elastic material test striker |
Impact energy 0.5J |
|
Hemisphere Dia. 15mm |
|
|
Flexible cellular material test striker |
Impact energy 0.2J |
|
Shape A, Hemisphere Dia. 30mm |
|
|
Shape B, Cylinder Dia. 40mm, and round end radius 40mm |
|
|
Dimension |
62 x 12 x 33cm ( L x W x H ) |
|
Weight |
52 kg |
|
Standards |
DIN 53512, DIN53573, ISO 4662, GB/T 1681, ASTM D7121 |
