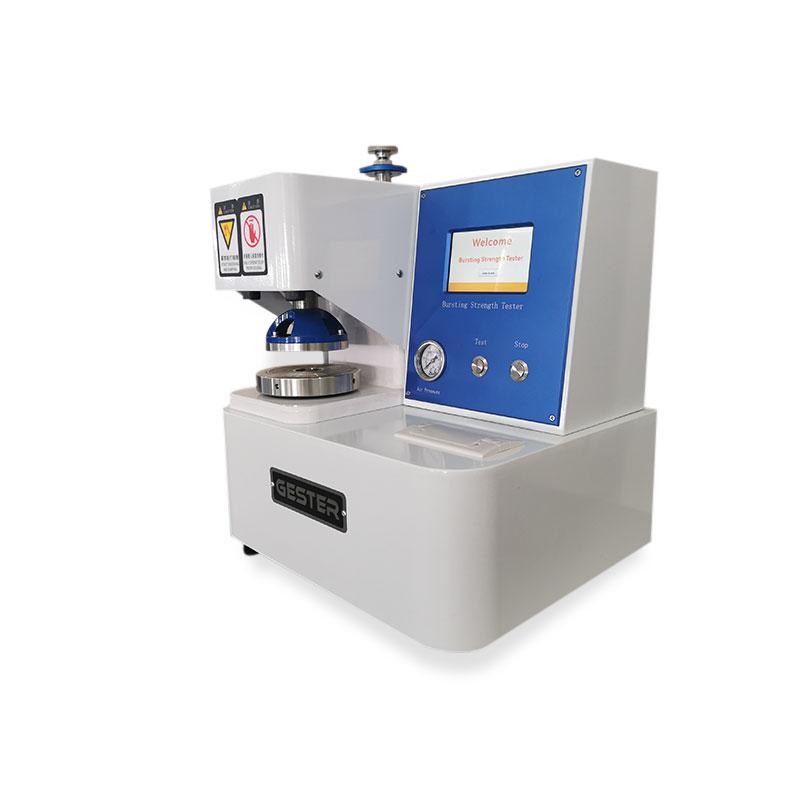

Automatic Bursting Strength Tester GT-N29D
Automatic Bursting Strength Tester GT-N29D
  • Brand:

    GESTER
  • Item No.:

    GT-N29D
  • Certificate:

    ISO 9001, UKAS, CE
  • Standard:

    ISO2758, GB/T454 , TAPPI T403
  • Lead Time:

    Within 30 days
  • Payment:

    T/T, L/C
contact now

Automatic Bursting Strength Tester GT-N29D


Product Introduction

Application:

This Automatic Bursting Strength Tester was made according to Mullen Method. It is available to test a variety of paper. It also can be used for non-paper sheet materials' bursting, such as silk and cotton.

carton bursting strength tester has abundant functions, such as parameter testing, transformation, adjusting, display, storing and printing. It has data processing function which can directly output result of data statistics with convenient operation, easy regulation and stable performance.



Perfect for paper, kraft paper, white cardboard, gray broad paper, single ply board paper, corrugating medium, freewood paper, toilet paper, aluminum foil, copper foil, cigarette case, and graphic carton.


Standards:

ISO2758, GB/T454 , TAPPI T403


Key Specifications



Model

GT-N29D

Testing Range

5-1400kpa

Testing Accuracy

0.01kpa

Accuracy Rating

≤0.5%

Deformation Error

≤1mm

Oil Feeding Speed

95±5ml/min

Dia. of Upper Plate

30.5±0.1mm

Dia. of Lower Plate

33.1±0.1mm

Intensity of Pressure (Rubber Diaphragm)

30±5kpa, when it at (9±0.2)mm

Holding Force

0-1200kpa (adjustable)

Units

kpa, kg/cm2, lb/in2

Printer

Thermal printer

Dimension

410×410×620mm

Weight

45kg

inquiry now

    We will give you a quotation within 24 hours.

      Automatic Bursting Strength Tester GT-N29D
