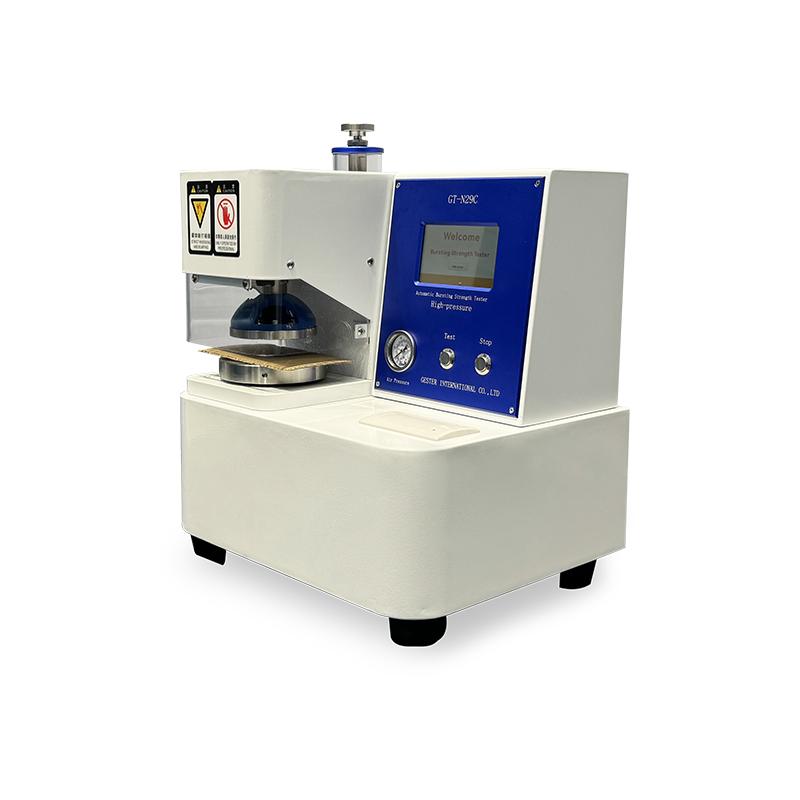

Automatic Bursting Strength Tester (High-pressure) GT-N29C
Automatic Bursting Strength Tester (High-pressure) GT-N29C
  • Brand:

    GESTER
  • Item No.:

    GT-N29C
  • Certificate:

    ISO 9001, UKAS, CE
  • Standard:

    ISO2759, GB/T 1539, GB/T 6545, TAPPI T810, JIS P8131
  • Lead Time:

    Within 30 days
  • Payment:

    T/T, L/C
contact now

Automatic Bursting Strength Tester (High-pressure) GT-N29C


Product Introduction

Application:

GT-N29C Bursting Strength Tester has abundant functions, such as, parameter testing, parametric transformation, parameter adjusting, parameter memory and parameter print. All are in accordance with related national standards. It has data processing function which can directly output result of data statistics with convenient operation, easy regulation and stable performance.

Bursting Strength Tester Perfect for carton, paperboard, corrugated board, cigarette packet, beer case, shoebox, milk carton, plastic hollow plate, leather, fabric, high strength aluminum foil and copper foil.


Standards:

ISO2759, GB/T 1539, GB/T 6545, TAPPI T810, JIS P8131


Paper Bursting Strength Tester Key Specifications



Model

GT-N29C

Testing Range

150-5600kpa

Testing Accuracy

0.01kpa

Accuracy Rating

≤0.5%

Deformation Error

≤1mm

Oil Feeding Speed

175±5ml/min

Dia. of Upper Plate

31.5±0.1mm

Dia. of Lower Plate

31.5±0.1mm

Intensity of Pressure (Rubber Diaphragm)

170-220kpa, when it at 10±0.2mm

Holding Force

0-1200kpa (adjustable)

Units

kpa, kg/cm2, lb/in2

Printer

Thermal printer

Dimension

410×410×620mm

Weight

45kg



inquiry now

    We will give you a quotation within 24 hours.
