Automatic Digital Rockwell Hardness Tester GT-HRS-150
Automatic Digital Rockwell Hardness Tester GT-HRS-150
  • Brand:

    GESTER
  • Item No.:

    GT-HRS-150
  • Certificate:

    ISO 9001, UKAS, CE Certificates
  • Standard:

    GB/T230.1 GB/T230.2 JJG112 ASTM E18 ISO 2039-2
  • Shipping Port:

    Xiamen Port
  • Lead Time:

    25 days
  • Payment:

    TT or L/C
contact now

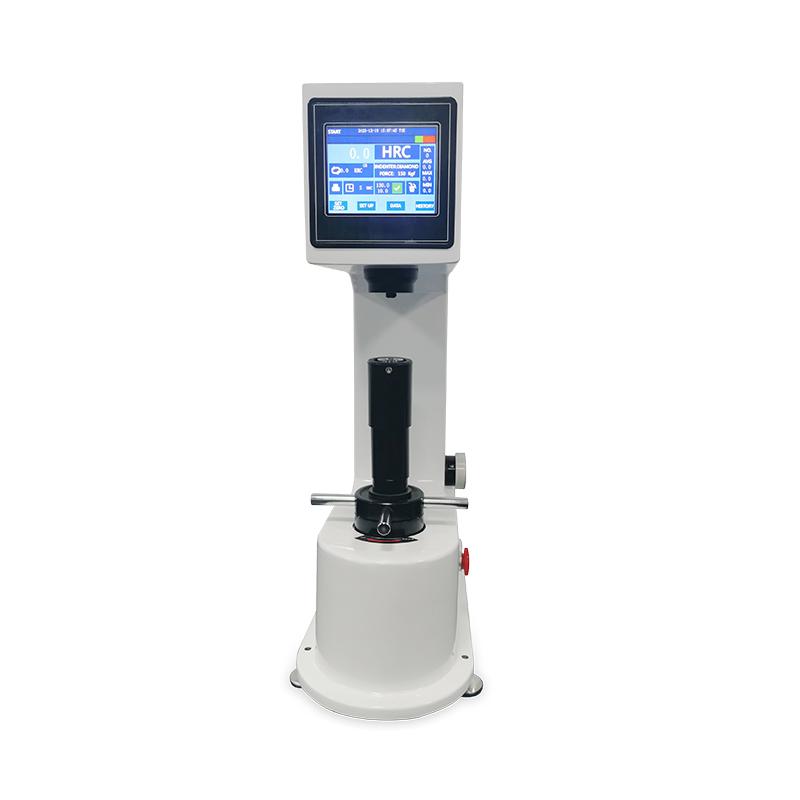

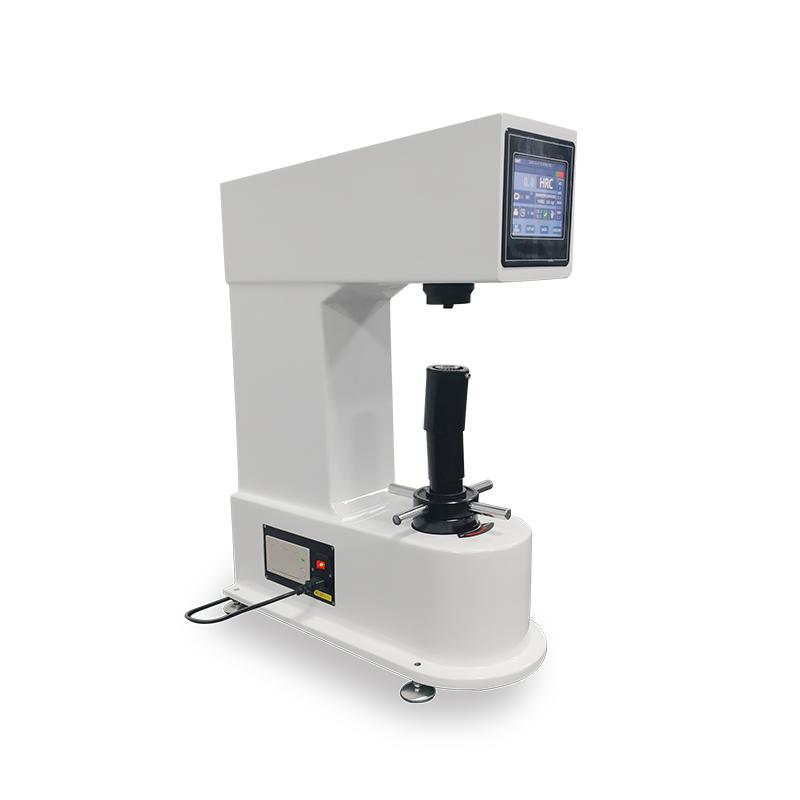

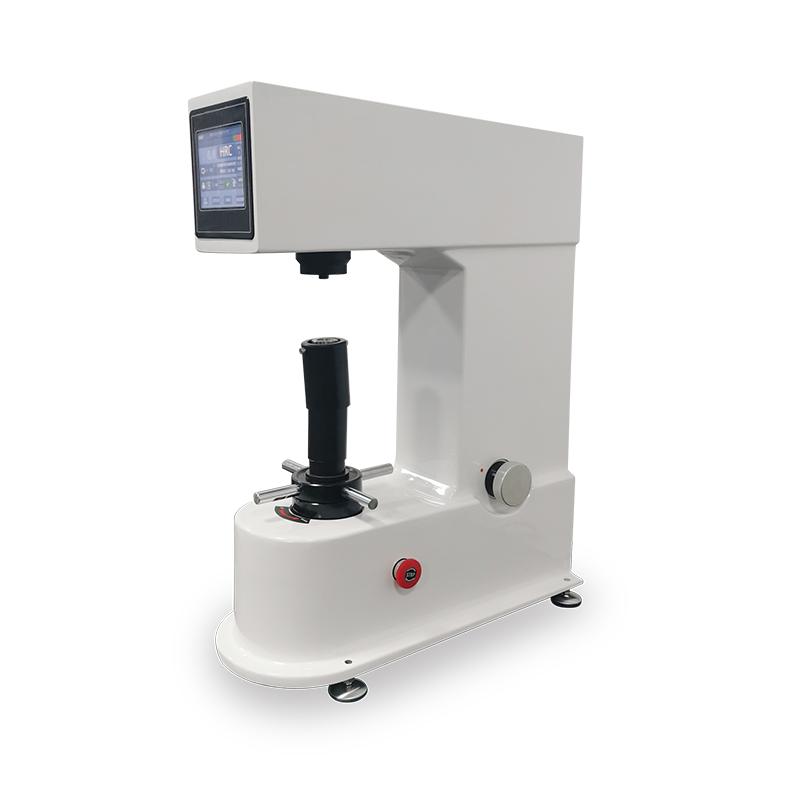

Automatic Digital Rockwell Hardness Tester GT-HRS-150



Product Introduction

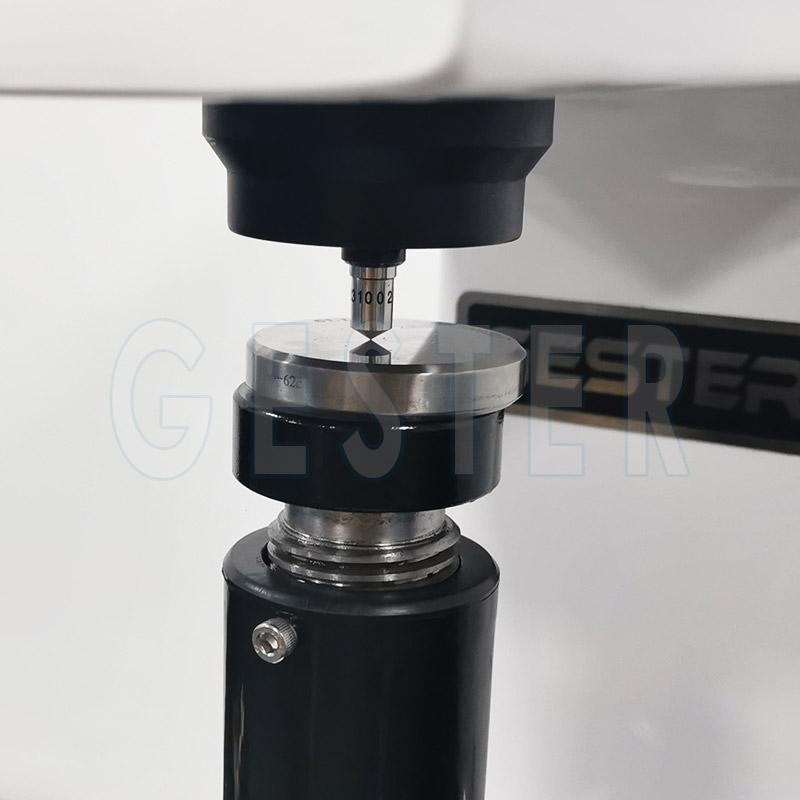

Rockwell hardness Tester is suitable for the hardness test for ferrous metals, nonferrous metals and non-metallic materials . Principle: Under certain conditions, the indenter (diamond cone, ball or carbide ball) is pressed into the surface of the sample, which takes two steps. After removing the main test force, measuring the residual indentation depth h at the initial test force. The residual indentation depth h represents the level of hardness.



Feature

1. Having a variety of Rockwell hardness scale, can be free to choose.

2. The hardness test hold time can be set freely.

3. Hardness test results can be printed

4. RS-232C serial communications, users can extend the functionality



Key Specifications


Model

GT-HRS-150

Initial test force

10kgf(98.07N)

Test Force

60kgf (588N)  100kgf (980N)  150kgf (1471N)

Indenter specification

Diamond conical Rockwell indenter, φ1.5875mm steel ball indenter, or other diameters (optional)

Rockwell scale

HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK



Test Range

HRA: 20-88    HRB: 20-100   HRC: 20-70    HRD: 40-77

HRE: 70-100   HRF: 60-100   HRG: 30-94    HRH: 80-100

HRK: 40-100   HRL: 50-115   HRM: 50-115   HRR: 50-115

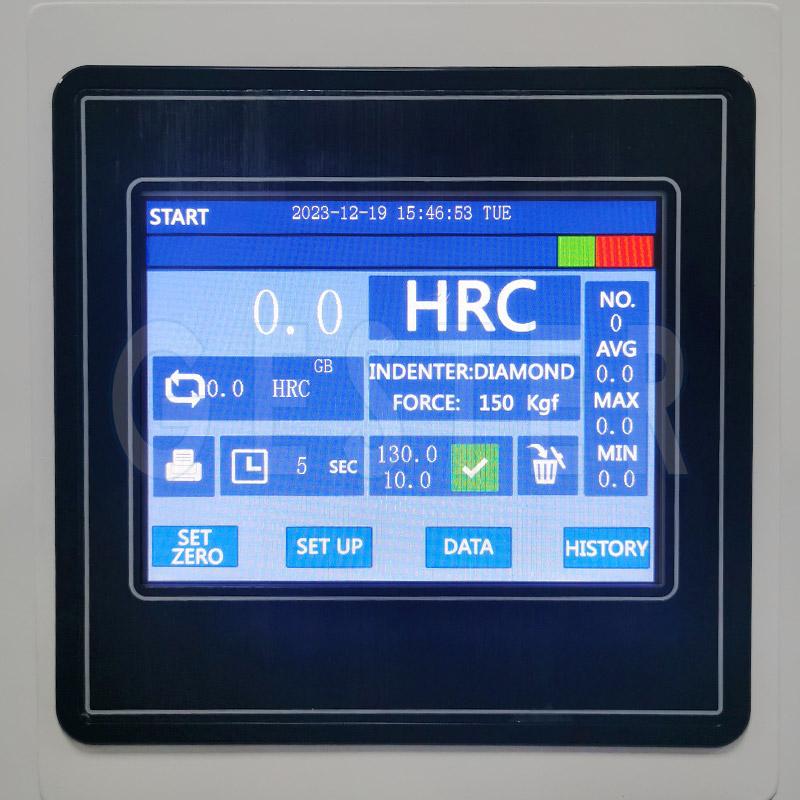

Hardness read

LCD digital display screen

Data output

Built-in printer RS-232 interface

Maximum specimen height

170mm

Head - Ectotheca distance

165mm

Power

AC220V + 5%, 50 ~ 60Hz

Dimensions (mm)

510X212X730mm

Weight

About 85Kg

Standards

GB/T230.1, GB/T230.2, JJG112, ASTM E18, ISO 2039-2



inquiry now
