Product Detail
Application:

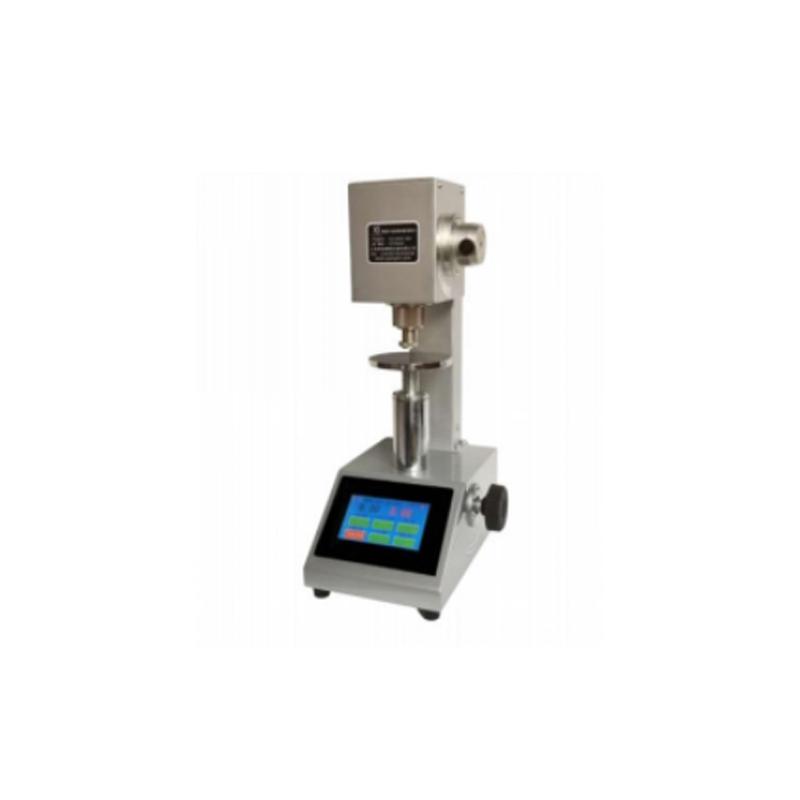

It is to measure the international IRHD hardness values of rubber and similar rubber materials test pieces and specimens. It can measure rubber in the range of 10 to 100 IRHD.
|
Test |
Diameter (mm) |
Steel ball force |
Force on the compression foot (N) |
||
|
Contact force (N) |
Press-in force (N) |
Total Force (N) |
|
||
|
Method N (Regular test) |
Ball 2.5±0.01 Pressure Feet 20±1 Hole 6±1 |
0.30±0.02 |
5.4±0.01 |
5.7±0.03 |
8.3±1.5 |
|
Method H (High hardness) |
Ball 1.00±0.01 Pressure Feet 20±1 Hole 6±1 |
0.30±0.02 |
5.4±0.01 |
5.7±0.03 |
8.3±1.5 |
|
Method L (Low hardness) |
Ball 5.00±0.01 Pressure Feet 22±1 Hole 10±1 |
0.30±0.02 |
5.4±0.01 |
5.7±0.03 |
8.3±1.5 |
Standards Accessories
|
Test head Type L |
1pc |
Round test bench |
1pc |
|
Test head Type N |
1pc |
Micro Printer |
1pc |
|
Test head Type H |
1pc |
Power line |
1pcs |
|
Test Feet |
2pcs |
|
|
