Automatic Dry-Cleaning Tester GT-D59

Textile and garment testing machine

Brand:
GESTER
Item NO.:
GT-D59
Order(MOQ):
1
Payment:
T/T, L/C
Lead Time：
15-30 days

Inquire now

Product Detail

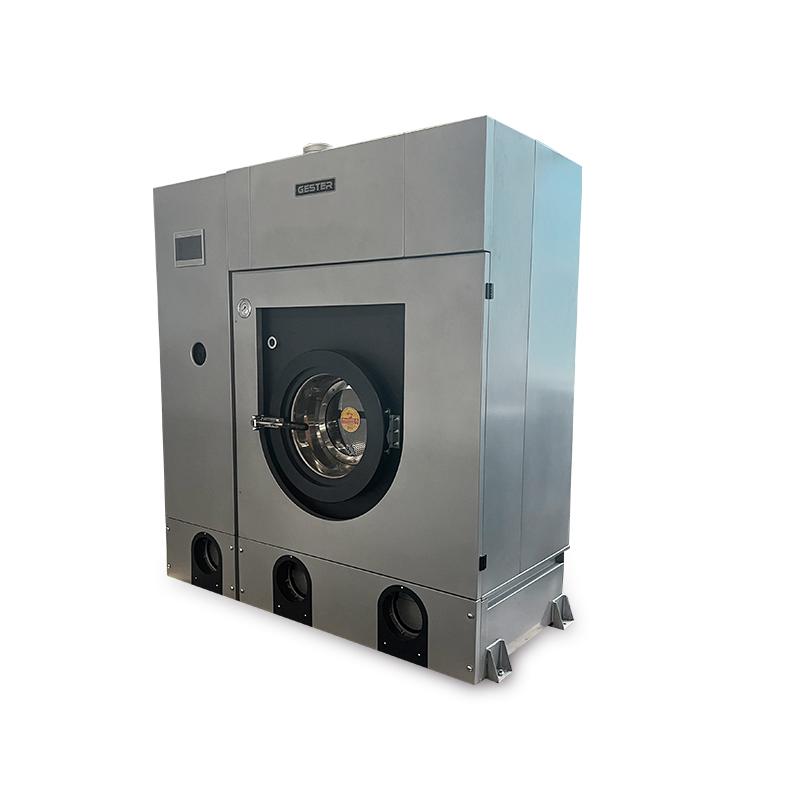

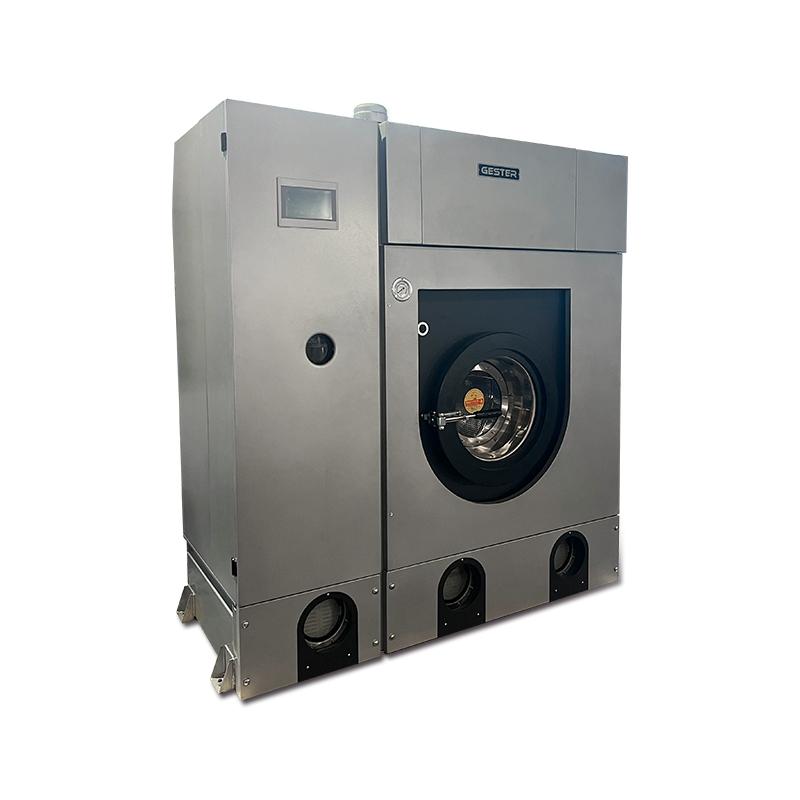

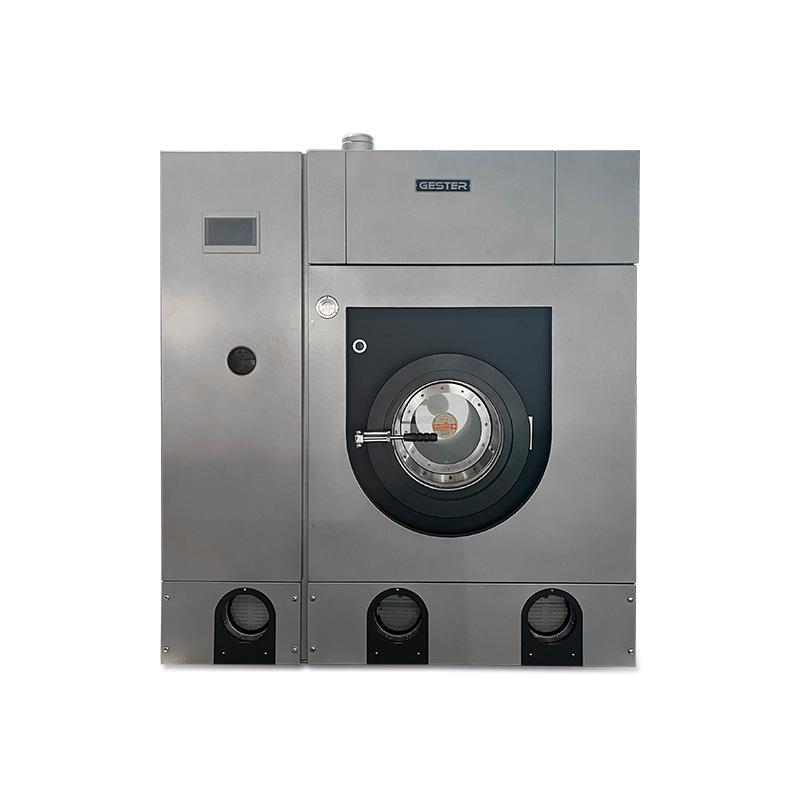

Automatic Dry-Cleaning Tester GT-D59

Product Introduction

Application:

Automatic Dry-Cleaning Tester is used to test the change of physical indexes such as appearance color, size change and peeling strength performance of garments and various textiles after dry cleaning with organic solvents and alkaline solutions.

Standards

FZ/T01083, FZ/T01013, FZ80007.3, ISO3175, AATCC158, GB/T19981, etc.

Dry Cleaning Tester Feature

Environmentally friendly: The mechanical parts of the whole machine are custom-made, and the pipelines are made of seamless steel pipes, fully sealed. It is an environmentally friendly type with a design for internal circulation and purification of the washing liquid. The exhaust outlet is equipped with an activated carbon filter, ensuring no exhaust gas is discharged to the outside during the test process (the exhaust gas is recovered and recycled by activated carbon).
It is controlled by a 32-bit ST microcontroller, with a LCD, programmable pneumatic valve, multiple fault monitoring and protection devices, audible alarm.

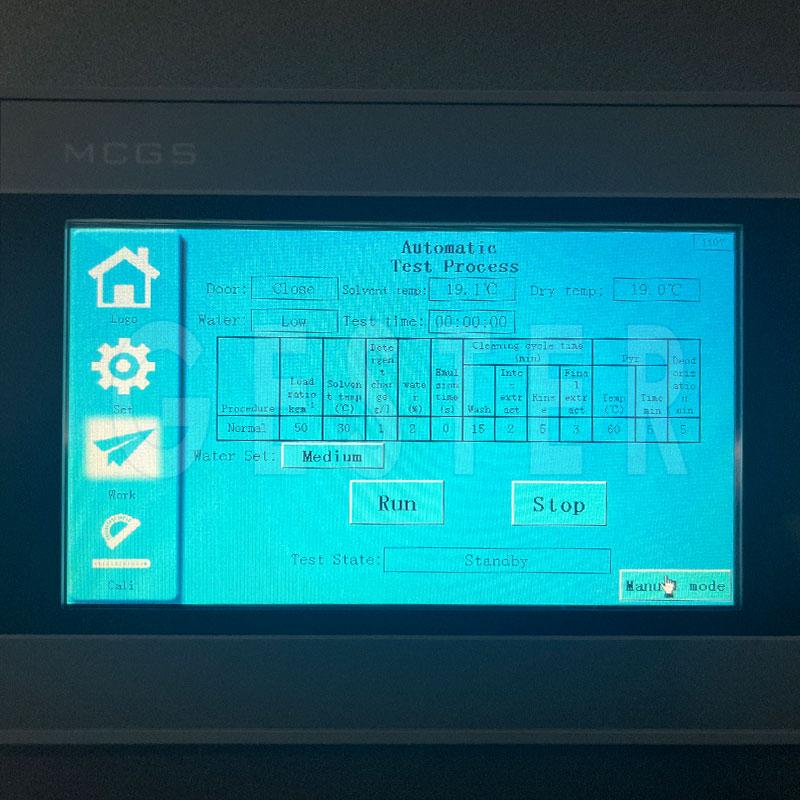

Large screen color touch screen for operation display, dynamic icons for workflow display.
The part in contact with the liquid is made of full stainless steel. There is an independent additive liquid tank and a metering pump for automatic liquid replenishment.
Built-in 5 sets of fully automatic testing programs, programmable manual programs.
Editable washing program.

Key Specifications

Model	GT-D59
Type	Fully automatic bidirectional transfer cage type
Rotating Cage Keyway	3
Rated Capacity	≤6kg/times (Φ650×320mm)
Liquid Pool Capacity	100L(2×50L)
Distillation Tank Capacity	50L
Detergent	C2CL4
Washing Speed	45r/min
Dehydration Speed	450r/min
Drying Time	4～60min
Drying Temperature	RT～80℃
Noise	≤61dB(A)
Power	AC 380V, 3-phase 5-wire, 7.5KW
Dimensions	1800mm×1260mm×1970mm(L×W×H)
Weight	800kg
